概览
优势和特点
- 通过螺丝端子板可方便地连接电源
- 附加BNC连接器用于50 Ω信号源
- 板载信号路由
- 支持信号回绕
- 简单的信号路径可降低传输线效应
- 为控制线提供的上拉和下拉功能
- 支持isoPower
- 项目区域支持表贴和通孔器件
产品详情

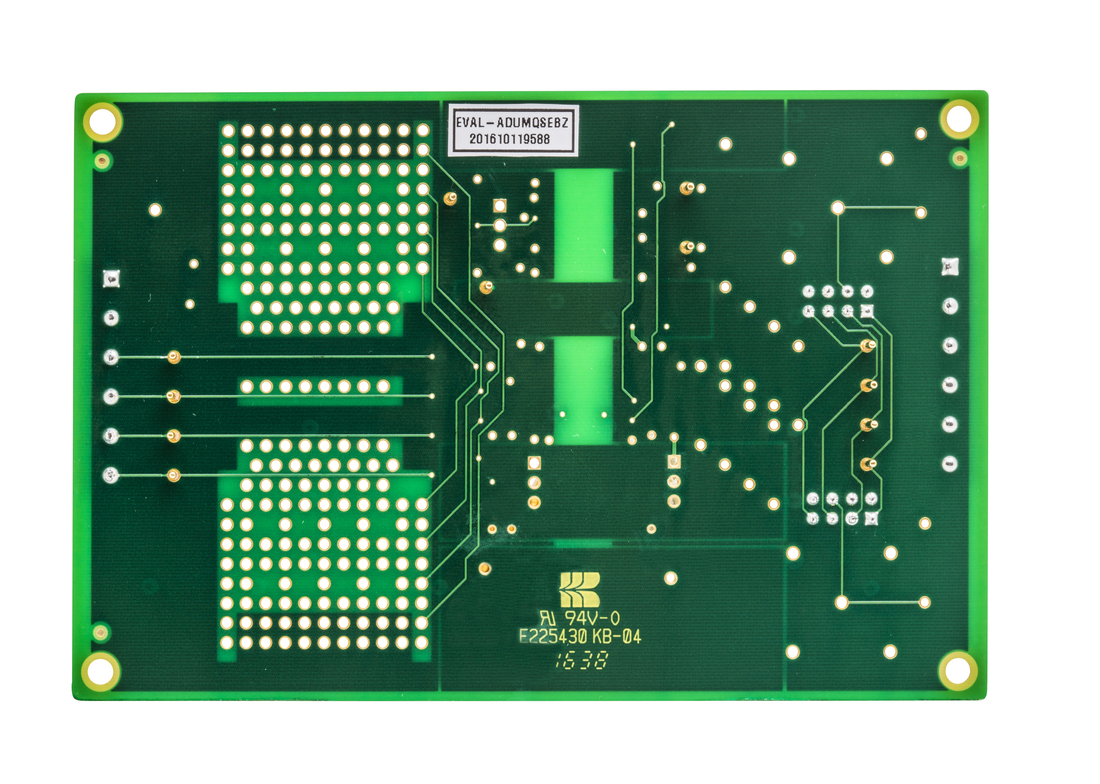

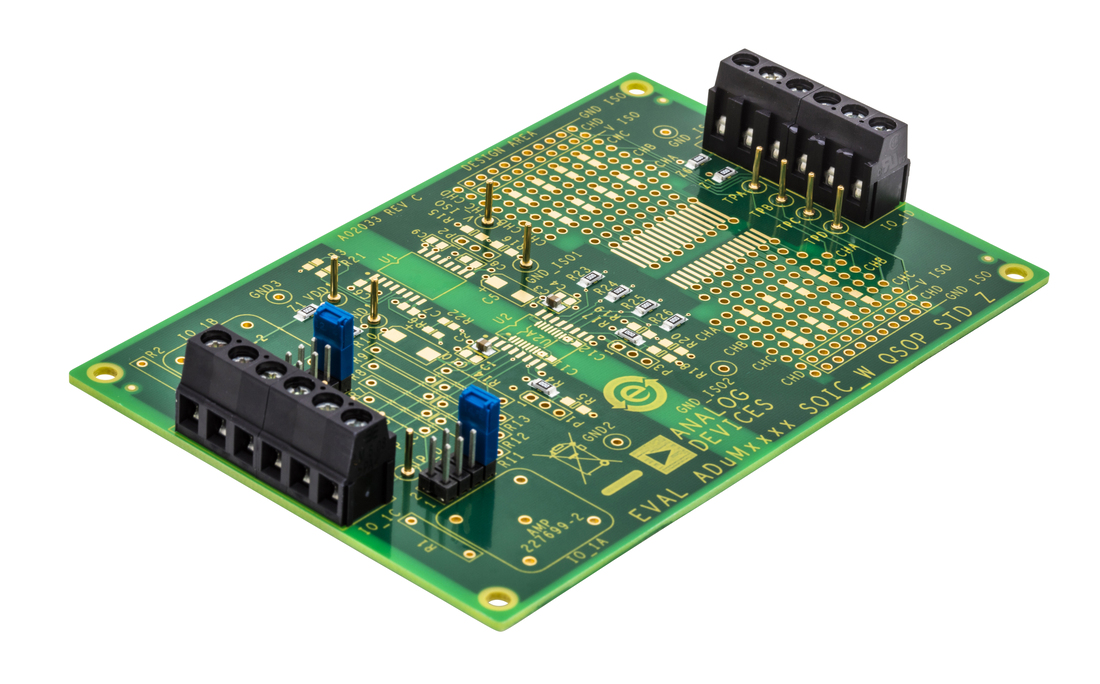

EVAL-ADuMQSEBZ能与大部分iCoupler®和isoPower(R)等采用16引脚宽体SOIC和QSOP封装的隔离产品一同使用。评估板支持电源、接地和I/O引脚等通用焊盘位置。
支持的iCoupler®产品：- ADuM130x
- ADuM131x
- ADuM140x
- ADuM141x
- ADuM1510
- ADuM240x
- ADuM330x
- ADuM340x
- ADuM344x
- ADuM440x
- ADuM5000
- ADuM520x
- ADuM540x
- ADuM6000
- ADuM620x
- ADuM640x
- ADuM744x
- ADuM7510
