DC2337A
LT8315EFE Isolated Demo Board | Offline Flyback, 90VAC ≤ VIN ≤ 265VAC, VOUT = 12V @ 0.55A
顶部
概览
产品详情
Demonstration circuit 2337A is an offline isolated flyback converter featuring LT8315. The demo board outputs 12V, and maintains tight regulation with a load current from 4mA to 0.55A. It is optimized to operate over a wide AC input voltage range (90VAC to 265VAC, 47Hz to 63Hz). Output voltage accuracy stays within ±5% over the whole input voltage and load range.
文档
-

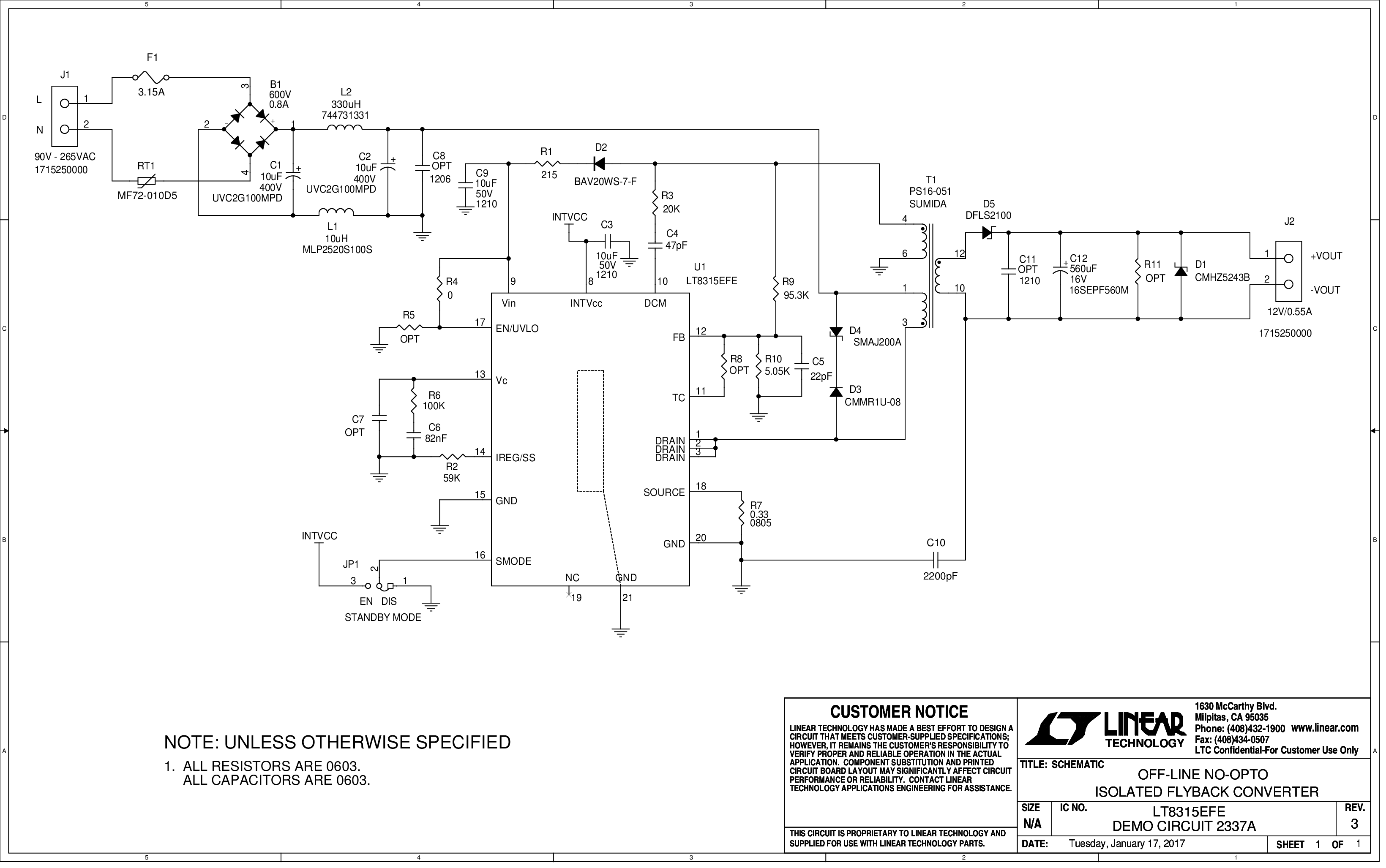

DC2337A - Schematic2024/1/11PDF278 K
-
DC2337A - Demo Manual2017/1/27PDF500K
-
DC2337A - Design File2020/11/24ZIP448 K
