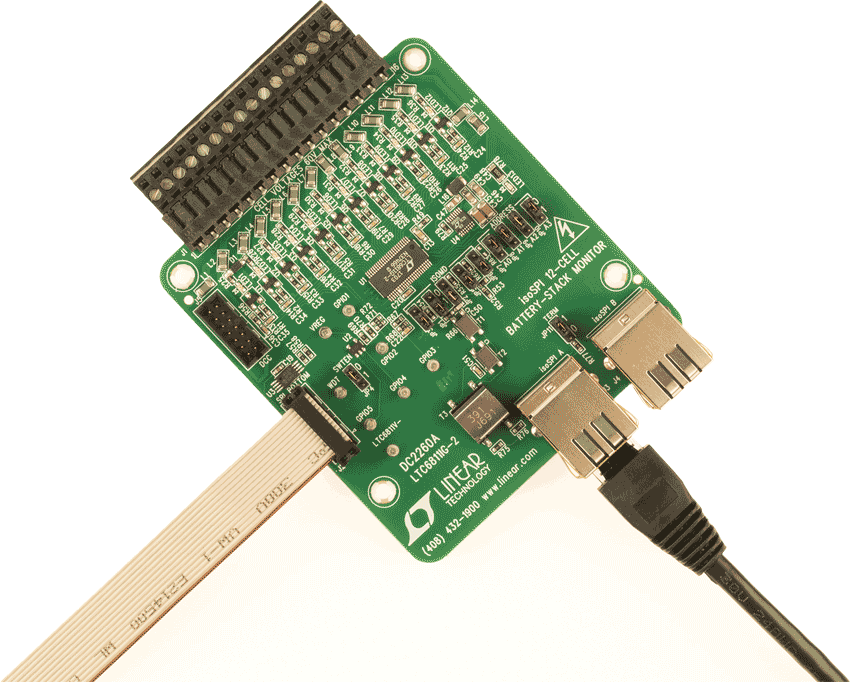

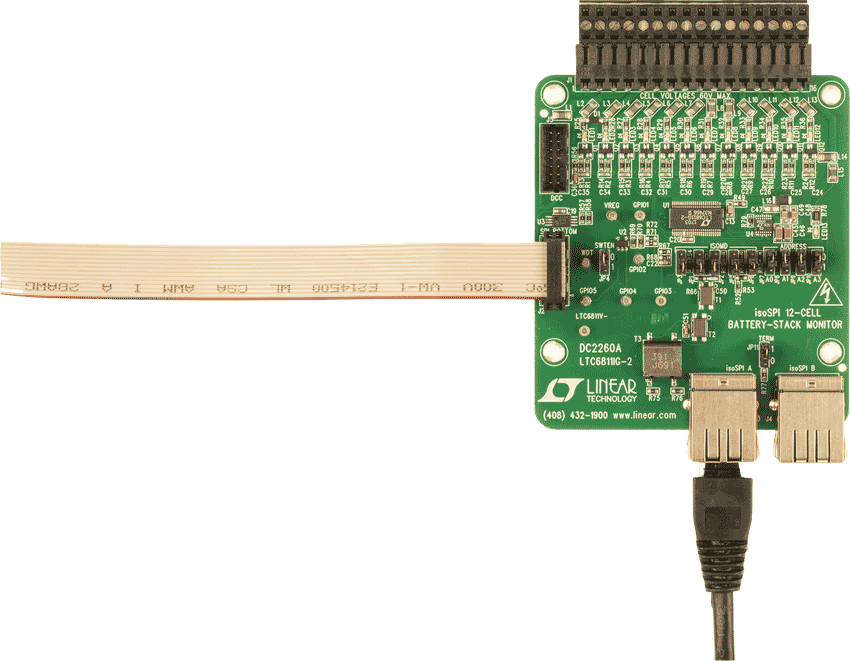

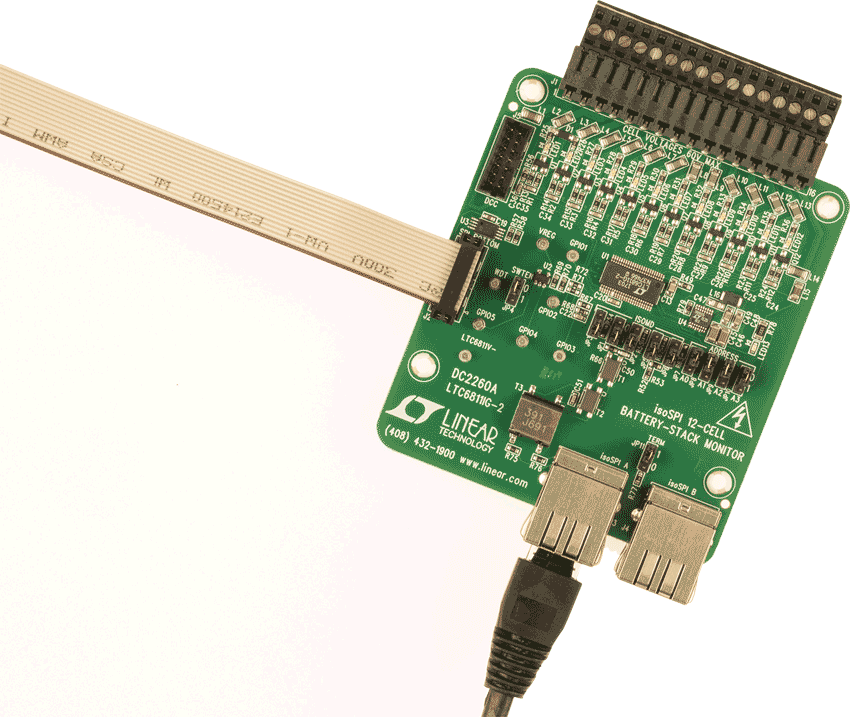

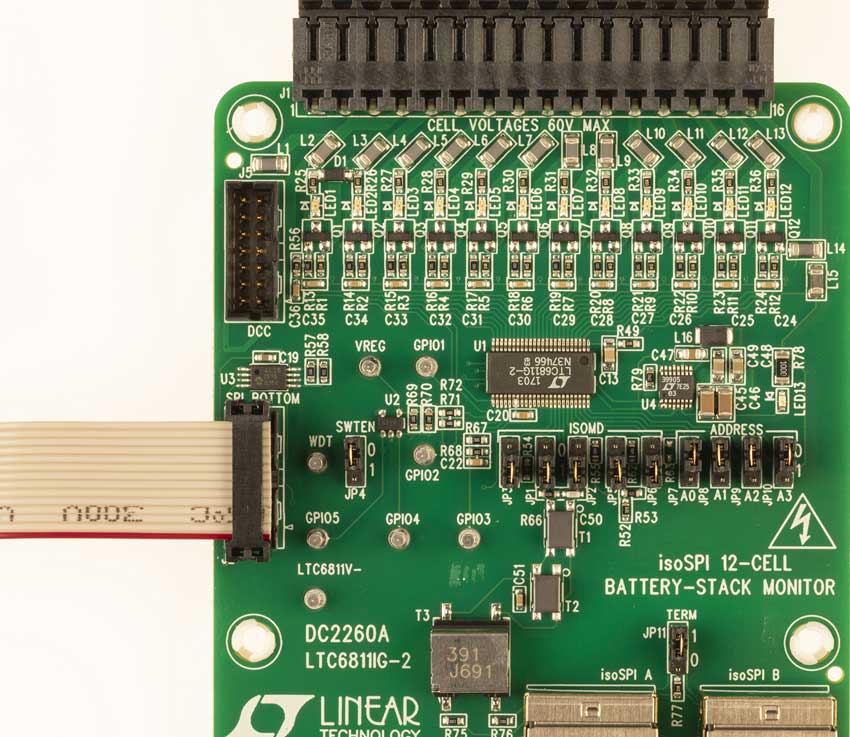

DC2260A
LTC6811-2 Demo Board | 12-Channel Battery Stack Monitor with Addressable Interface
顶部
概览
产品详情
Demonstration circuit 2260A is an Addressable isoSPI Battery-Stack Monitor featuring the LTC6811-2. Multiple boards can be linked through a 2-wire isolated serial interface to monitor any number of cells on a stack.
文档
-
DC2260A - Schematic2016/9/27PDF84K
-
DC2260A - Demo Manual2016/9/27PDF2M
-
DC2260A - Design Files2016/9/27ZIP1M
