EVAL-BFBLUET-EZEXT

The Blackfin Bluetooth extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the Blackfin evaluation system by providing a connection to a Bluetooth module and isolating the low-level configuration and communication tasks of integrating Bluetooth and radio frequency (RF) wireless technologies. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

顶部

优势和特点

Analog Devices AD1836 –96 kHz audio codec
Five 3.5 mm audio jacks, stacked in one connector
Analog Devices ADV7179 video encoder
Analog Devices ADV7183B video decoder
Connection to Flat panel display Interface

产品详情

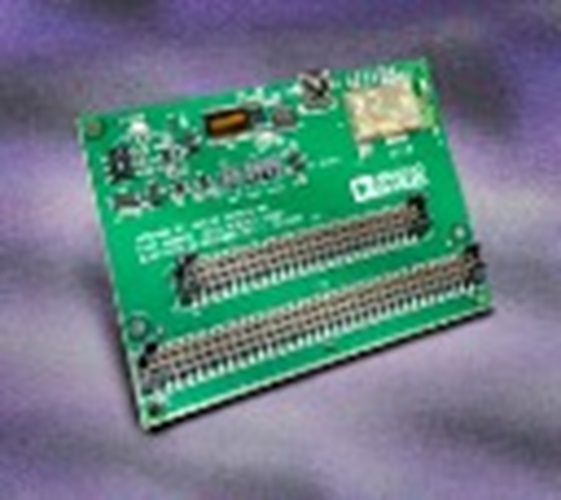

The Blackfin Bluetooth EZ-Extender^® daughter board plugs onto the Compatible EZ-Board, EZ-KIT Lites, and STAMP board. The Blackfin Bluetooth EZ-Extender extends the capabilities of the Blackfin boards by providing a connection to a Bluetooth module, as well, isolates the low-level configuration and communication tasks of integrating Bluetooth and radio frequency (RF) wireless technologies in your Blackfin board designs.

The Bluetooth EZ-Extender is designed to be used in conjunction with an EZ-Board, EZ-KIT Lite or STAMP board running the open source Linux operating system (OS). For more information about running Linux OS on a Blackfin processor, go to blackfin.uclinux.org/gf.

Part Number:
ADZS-BFBLUET-EZEXT

Tools Support:
Blackfin uClinux

Contact Support

包装内含

Bluetooth EZ-Extender
(plugs directly onto an EZ-KIT Lite supporting the STAMP interface or an EZ-Board/EZ-Kit Lite supporting the expansion interface II connector)

系统需求

Windows^® 2000 SP4, Windows XP SP2, Windows Vista^™ or (from update 7) Windows 7 Business/Enterprise/Ultimate editions
Intel Pentium^® processor (x86 compatible), 1 GHz or faster
512 MB RAM and 2 GB available hard disk space
Linux kernel development host
