概览

优势和特点

  • ADSP-2189M DSP
  • Supports ADSP-218x DSP family
  • RS-232 interface port
  • 2Mbit or greater boot protected flash PROM
  • Expansion capabilities
  • Evaluation suite of VisualDSP++
  • Support for 2.5 and 3.3 I/O selectable
  • AD 73322 codec
  • CE certified

产品详情

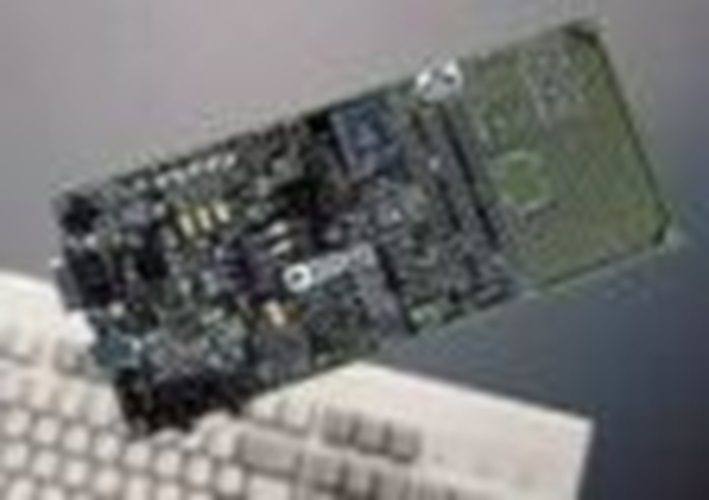

The ADSP-2189M EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the powerful ADSP-218x DSP family architecture. The ADSP-2189M EZ-KIT Lite includes a stand-alone ADSP-2189M DSP board and fundamental code generation debug software. With this EZ-KIT Lite, users can learn about DSP hardware and software development and evaluate potential applications of the ADSP-218X M family of DSPs. The ADSP-2189M EZ-KIT Lite provides an evaluation suite of the VisualDSP++ development environment with the C compiler, assembler, and linker. All software tools are limited to use with the EZ-KIT Lite product.


Demonstration programs shipped with this EZ-KIT Lite system include common signal processing algorithms such as convolution and Fibonacci calculations. Programs that demonstrate the use of the hardware features of the ADSP-2189M are provided including interrupts, overlays, timers and the on-board codec.


Part Number
ADZS-2189M-EZLITE


Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

相关产品

包装内含

  • ADSP-2189M EZ-KIT Lite board
  • Power cable with 7.5V DC power supply
  • RS-232 serial port 9-pin cable

系统需求

  • Windows® 9x/NT 4.0 Windows 2000, ME and XP
  • Intel Pentium® processor 166 MGHz or faster
  • 32 MB RAM and 200 MB available hard disk space
  • One RS-232 compatible serial port
  • VisualDSP++ 3.5

文档

  • 查看全部 (5)
  • 设计工具 (1)
  • 用户手册 (2)
  • 仿真器使用手册 (1)
  • 电路板设计数据库 (1)
    • Document Type

    软件

    软件开发工具

    用于ADSP-21xx处理器的VisualDSP++是一种易于安装、易于使用的集成软件开发与调试环境(IDDE)，支持通过单一界面高效管理项目的全过程。

    硬件 (1)

    仿真器硬件
