LTC7150S

推荐新设计使用

20V、20A 同步降压型稳压器

数据手册 (Rev. B) 产品选型表

产品模型: 4

Viewing:

产品详情

AEC-Q100通过汽车应用认证
Silent Switcher^®2 架构以降低EMI
V_IN范围：3.1V至20V
V_OUT范围：0.6V至5.5V
差分V_OUT远程检测
可调频率：400kHz至3MHz
PolyPhase^®工作：最多12个相位
输出跟踪和软启动

基准精度：0.6V ±1%（温度范围内）
电流工作模式提供出色的线路和负载瞬态响应
精确的1.2V运行引脚阈值
支持强制连续/断续模式
42引脚6mm × 5mm × 1.3mm BGA封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC7150SEY#PBF	42-Lead BGA (6mm x 5mm x 1.3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7150SIY#PBF	42-Lead BGA (6mm x 5mm x 1.3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7150SJY-4#PBF	42-Lead BGA (6mm x 5mm x 1.3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7150SJY-4#WPBF	42-Lead BGA (6mm x 5mm x 1.3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

3月 9, 2022 - 21_0260 LTC7150S Material Set Change
		PCN21_0260_Form Material_Report Qualification Results Summary
LTC7150SEY#PBF	量产
LTC7150SIY#PBF	量产
4月 25, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTC7150SEY#PBF	量产
LTC7150SIY#PBF	量产
LTC7150SJY-4#PBF	量产
LTC7150SJY-4#WPBF

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
LTC3613	推荐新设计使用	具差分输出检测功能的 24V、15A、单片式降压型稳压器

工具及仿真模型

LTspice 2

LTpowerCAD 1

LTC7150S Project - Demo Board DC2411A 400kHz

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

LTpowerCAD^®是一种电源设计程序，它选择功率级元件，提供详细效率信息，显示快速环路波特图稳定性和负载瞬态分析，并可导出至LTspice进行仿真。

评估套件

LTC7150SEY演示板 | 高效率20A同步降压稳压器

立即购买更多内容

产品详情

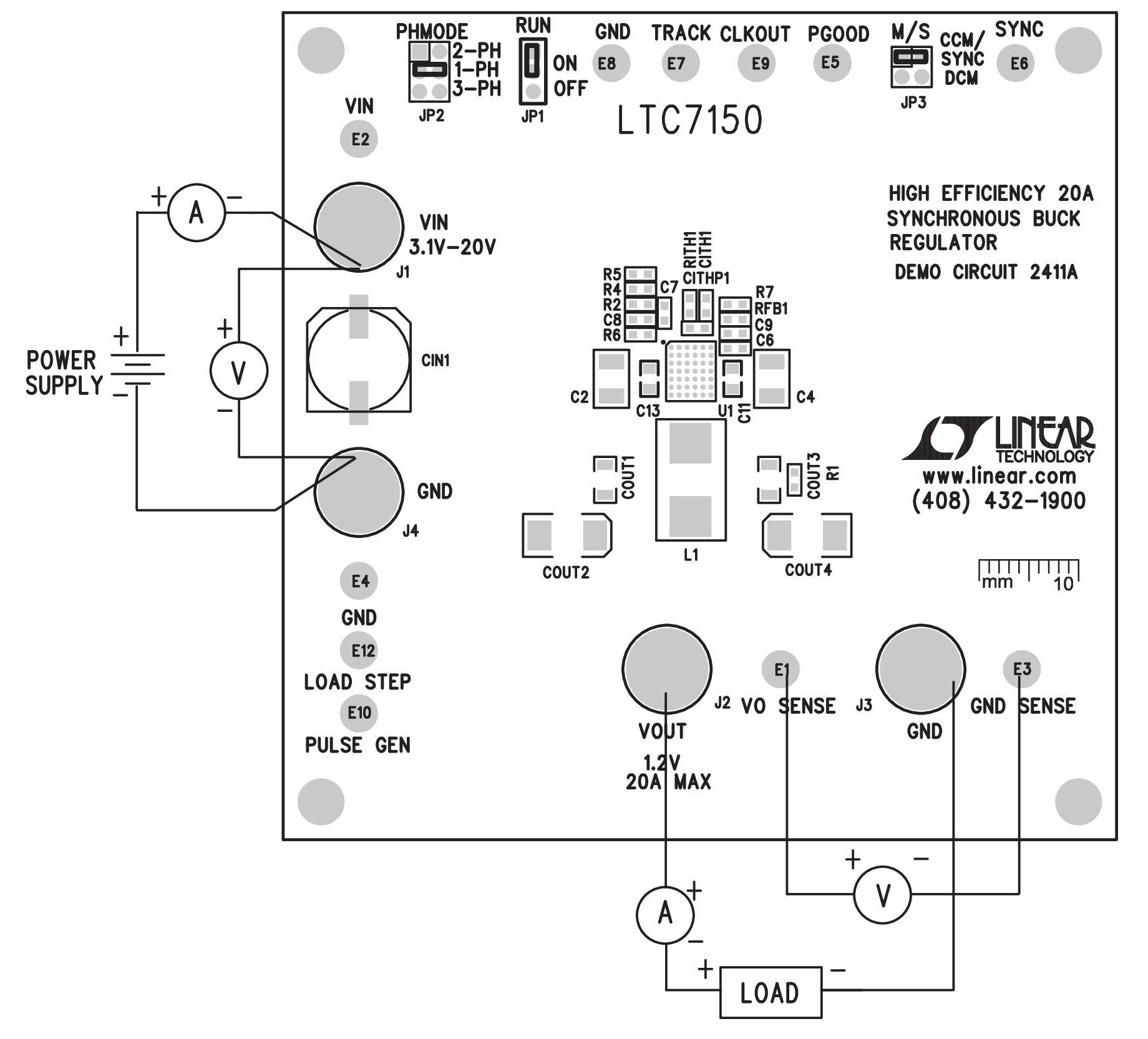

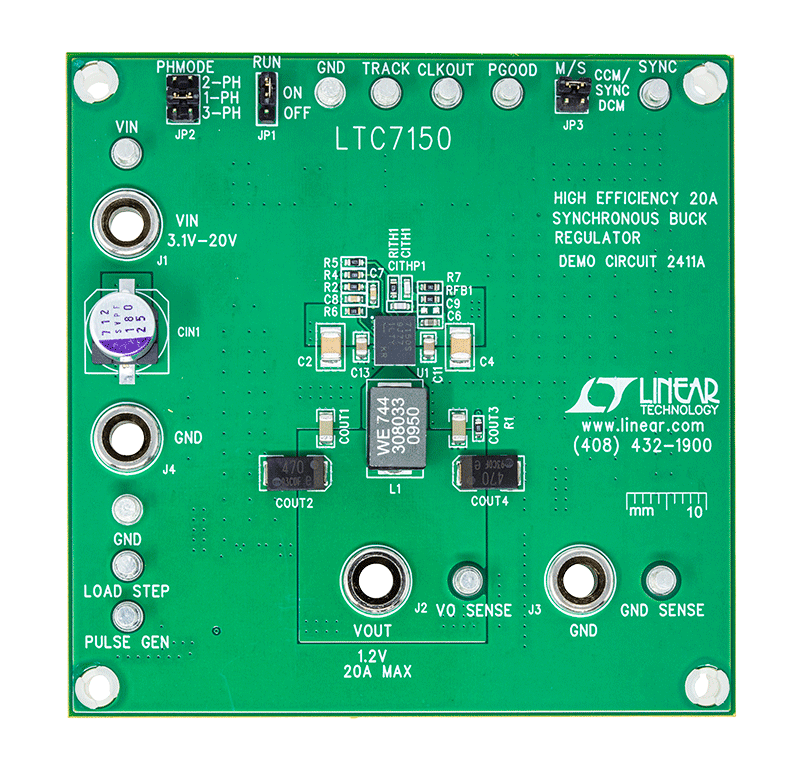

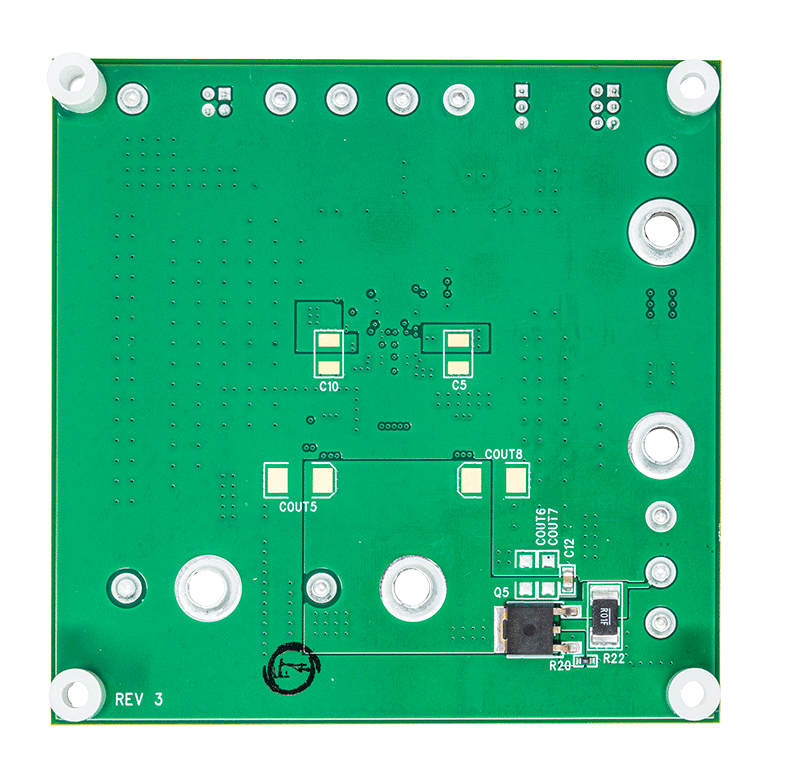

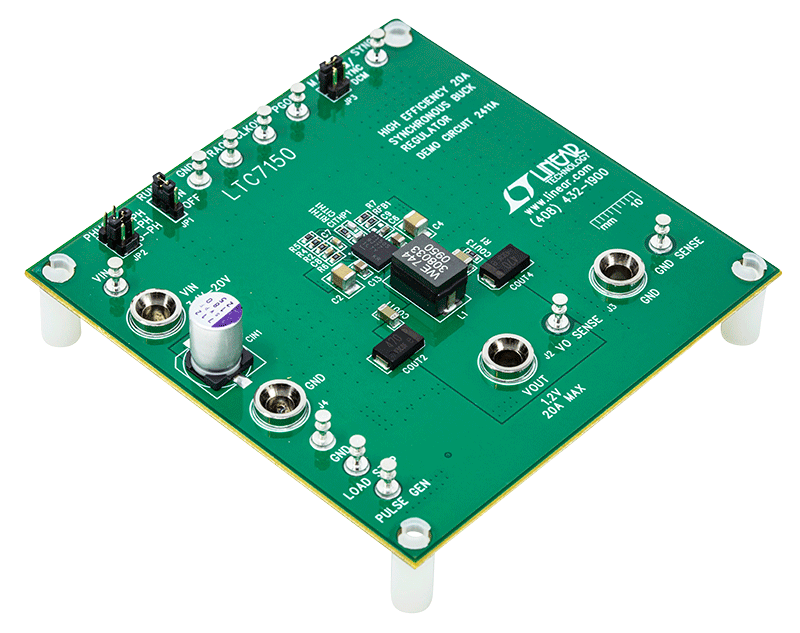

演示电路2411A是一款高效率同步降压稳压器，具有3.1V至20V输入范围。在1.2V输出下，可提供最大20A负载电流。该演示板内置LTC7150S稳压器。无需外部MOSFET或外部电流检测电阻。它采用锁相控制的导通时间恒频、电流模式架构，非常适合高降压比应用。工作频率可用外部电阻(R5)在400kHz至3MHz范围内可编程。LTC7150S采用6mm × 5mm × 1.3mm 42引脚BGA封装。

资料

DC2411A - Demo Manual
430.00K

DC2411A - Schematic
39.00K

DC2411A - Design Files
1.00M

参考电路

X1600E EDSFF Accelerator

查看参考设计详情

特性和优点

The X1600E is an Enterprise and Datacenter Storage Form Factor (EDSFF), power-efficient module hosting a Blaize X1600 SoC for AI workloads.

Analog Devices, Inc. supports end to end power delivery solutions for Blaize Pathfinder Xplorer 1600E ESDFF Accelerator. Analog Devices uses discrete power solutions to enable Blaize to deliver high compute with optimized with most TOPS/Watt performance.

These regulators are highly integrated discrete solutions optimized for cost, efficiency and foot print.

ADI provides supporting documentation including power schematics, layout, LTpowerPlanner^® and applicable LTpowerPlay^® configuration files to enable you to validate the power solution for your application seamlessly.

For a complete list power designs and use cases, please contact your local FAE.
