DS2172
位误码率测试器(BERT)
Viewing:
产品详情

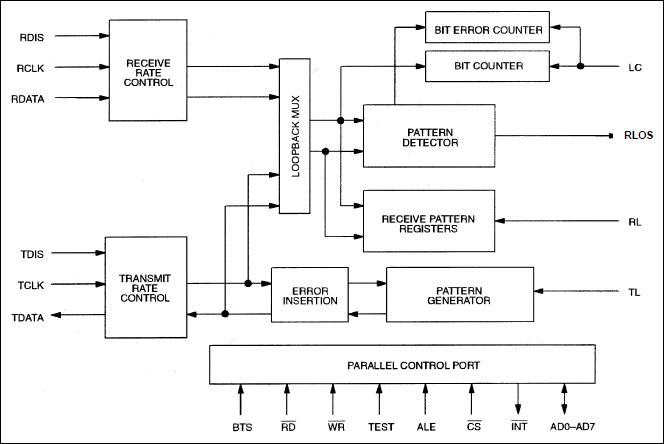

- Generates/detects digital bit patterns for analyzing, evaluating, and troubleshooting digital communications systems
- Operates at speeds from DC to 52MHz
- Programmable polynomial length and feedback taps for generation of any other pseudorandom pattern up to 32 bits in length including: 26-1, 29-1, 211-1, 215-1, 220-1, 223-1, and 232-1
- Programmable user-defined pattern and length for generation of any repetitive pattern up to 32 bits in length
- Large 32-bit error count and bit count registers
- Software-programmable bit-error insertion
- Fully independent transmit and receive sections
- 8-bit parallel control port
- Detects test patterns with bit error rates up to 10-2
