MAXREFDES1155
Dual Channel RTD/TC Measurement System Based on MAX11410
トップへ
Designed, Built, Tested

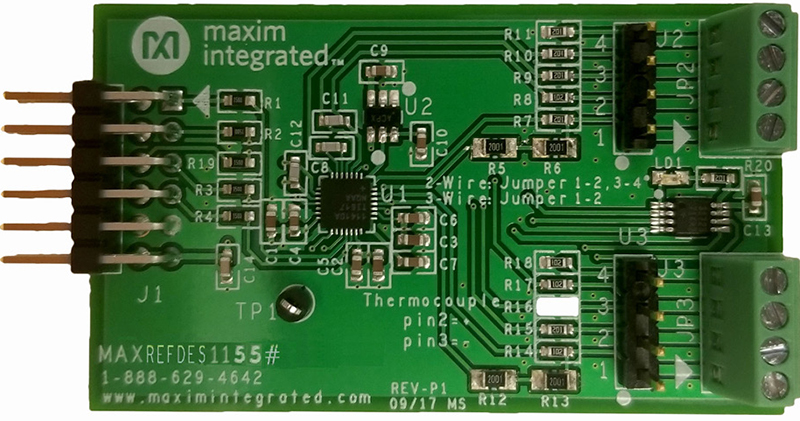

Board pictured here has been fully assembled and tested.
Overview
設計リソース
デバイス・ドライバ
コンポーネントのデジタル・インターフェースとを介して通信するために使用されるCコードやFPGAコードなどのソフトウェアです。
説明
MAXREFDES1155 is a configurable two-channel resistance temperature detector (RTD)/thermocouple (TC) measurement system. Each channel can be configured for either RTD or TC input. The RTD can be either a PT100 or a PT1000 connected in a 2-wire, 3-wire, or 4-wire configuration. The MAXREFDES1155 can support all types of thermocouples, using either an on-board temperature sensor or an RTD for cold-junction compensation.
機能と利点
- Highly accurate measurement
- Two channels
- Each channel can be configured for either RTD or TC input
- Supports 2-wire, 3-wire, and 4-wire RTD
- Supports all types of thermocouple
- Thermocouple with on-board temperature sensor for cold junction compensation
- Board-level calibration
- PMOD interface
