TMC5240-BOB
Evaluation Board for TMC5240
トップへ
製品概要
機能と利点
- CoolStep™
- Passive Braking
- SpreadCycle™
- StallGuard2™
- StealthChop2™
- StallGuard4™
- Short Detection
- MicroPlyer™
- DcStep™
- Motion Controller
- Position Mode
- Velocity Mode
- EightPoint™ Ramp
- ABN Encoder Interface
- 1 to 256 Microsteps
- 2A RMS, 36V
製品概要

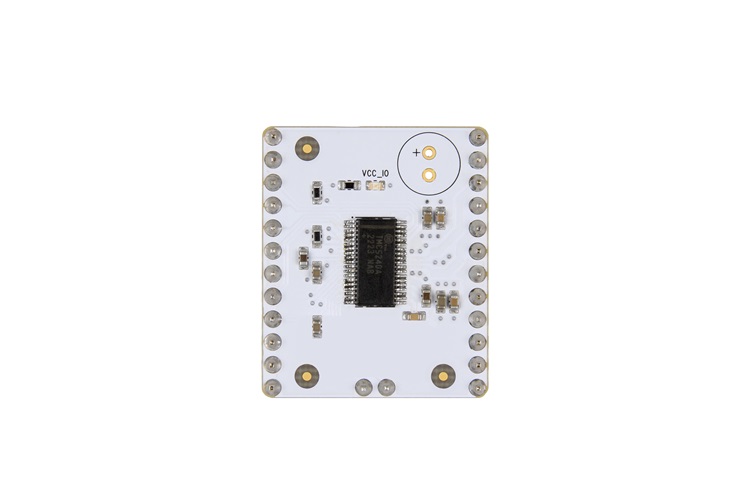

The TMC5240 breakout board is a development board with the dedicated TMC5240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
対象となる製品
関連資料
-
TMC5240 BOB Data Sheet (Rev. 1.00)2022/09/22PDF1M
-
TMC5240-BOB Design Files2024/06/28ZIP688 K
