TMC2590-BOB40
OBSOLETE: Evaluation Board for TMC2590
トップへ
製品概要
機能と利点
- Break Before Make
- CoolStep™
- SpreadCycle™
- StallGuard2™
- Current Sense
- Short Detection
- Slope Control
- Stall Detection
- MicroPlyer™
製品概要
This evaluation board is obsolete and no longer recommended.

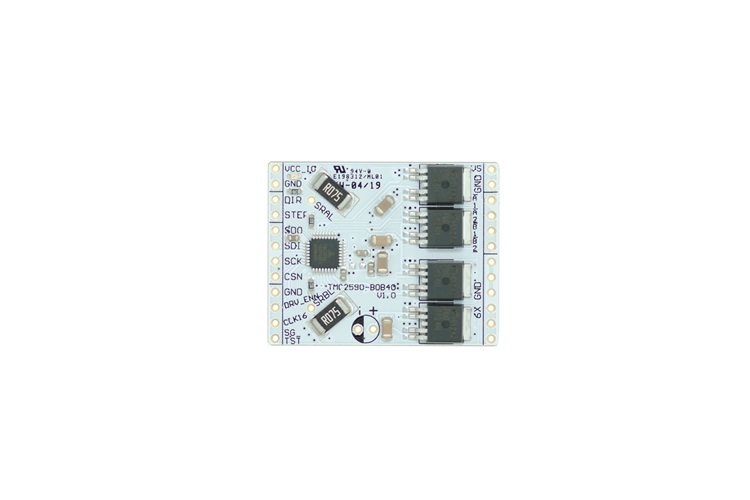

The TMC2590 breakout board is a development board with the dedicated TMC2590-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
対象となる製品
関連資料
-
TMC2590 calculations2019/04/09XLS46K
-
TMC2590 Data Sheet (Rev. 1.04)2022/02/24PDF1M
-
Ecad Tmc2590 Bob40 - Design Files (Rev. 10)2019/08/19ZIP11M
