TMC2225-BOB
Evaluation Board for TMC2225
トップへ
製品概要
機能と利点
- TMC2225-SA stepper motor driver
- Supply voltage 5-28V
- Iphase up to 1.4ARMS
- Quiet operation with StealthChop™
- Configuration and extended diagnostics via UART
- Control via Step&Dir interface
- Board width 1.0", board height 1.0"
- 2x10 pin 0.1" header rows for pins/connectors
- 1 to 256 Microsteps
- 1.4A RMS, 28V
製品概要

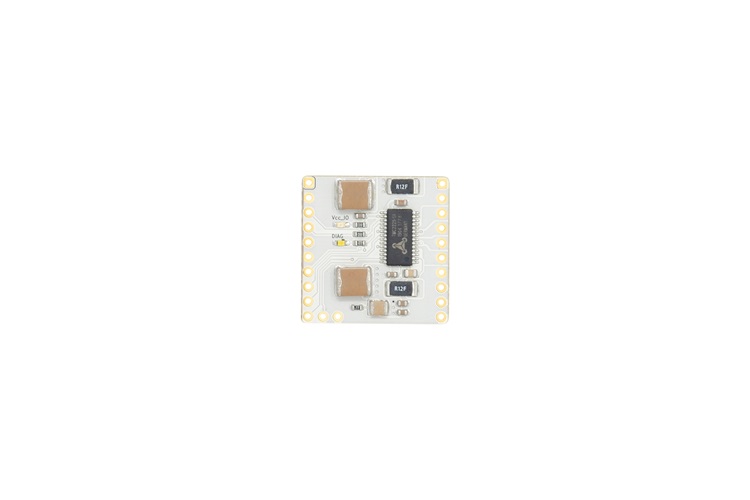

The TMC2225 breakout board is a development board with the dedicated TMC2225-SA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
対象となる製品
関連資料
-
Tmc2225 Bob Schematics - Schematic (Rev. 1.00)2021/09/07PDF158K
-
Tmc2225 Bob User Manual (Rev. 1.02)2021/03/02PDF364K
-
Tmc2225 Bob - Design Files (Rev. 1.00)2021/02/26ZIP185K
-
AN-047: How to replace DRV8824 by TMC22242023/08/09
