TMC2160-BOB
Evaluation Board for TMC2160
トップへ
製品概要
機能と利点
- CoolStep™
- Passive Braking
- Short Detection
- SpreadCycle™
- Stall Detection
- StallGuard2™
- StealthChop2™
- Microstep Table
- MicroPlyer™
- 1 to 256 Microsteps
- 3ARMS, 36V
製品概要

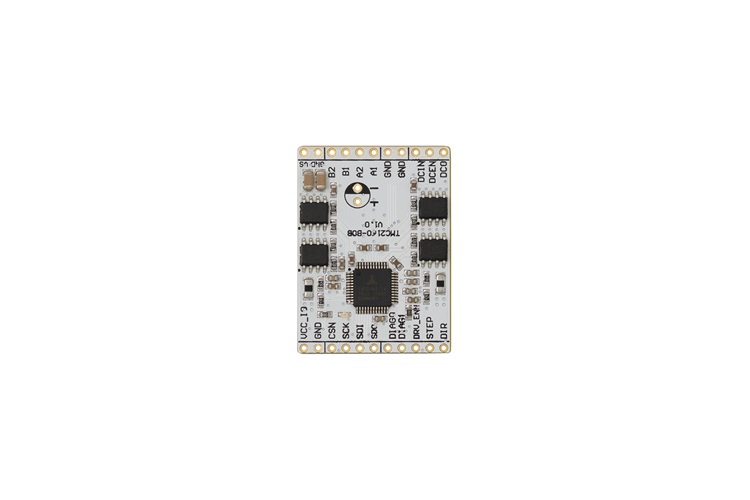

The TMC2160 breakout board is a development board with the dedicated TMC2160-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
対象となる製品
関連資料
-
TMC2160A Data Sheet (Rev. 1.10)2023/03/15PDF2M
-
Tmc2160 Bob Fabrication Data - Design Files (Rev. 1.0)2019/06/04ZIP148K
-
Tmc2160 Bob Cad Files - Design Files (Rev. 1.0)2019/06/04ZIP8M
-
Tmc2160 Bob 3d Files Layout Data - Design Files (Rev. 1.0)2019/06/04ZIP4M
-
Bom Tmc2160 Bob - Design Files (Rev. 1.0)2019/06/04XLS28K
