TMC-SCHRAUBSTOCK
Evaluation Board for TMC-SCHRAUBSTOCK
トップへ
製品概要
機能と利点
- Compatible with Arduino
- Compatible with Trinamic breakout boards (BOBs)
- Reliable connection with screw clamps
- Soldering options
製品概要

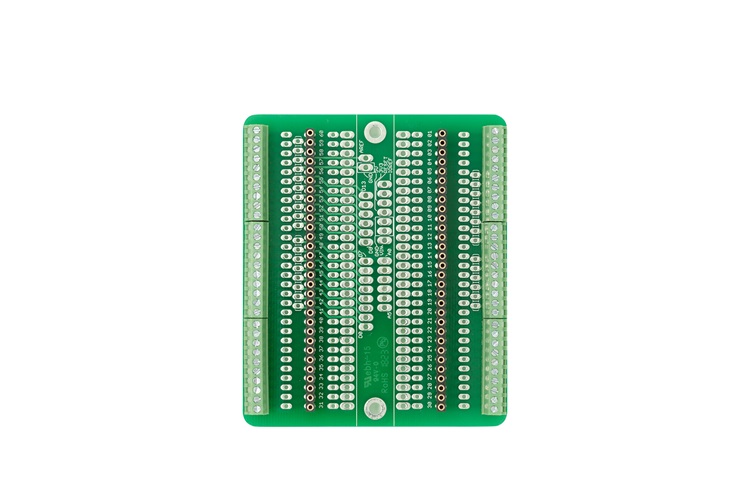

TMC-Schraubstock carrier board provides a simple and easy to use test platform for all available ADI TRINAMIC breakout boards (BOBs), which allows easy testing within your setup as well as direct connection to an Arduino.
The board is provided unpopulated but with different connectors and headers included for full freedom of use.
関連資料
-
TMC Schraubstock V10 Data Sheet2018/05/23PDF4M
-
Bom Tmc Schraubstock - Design Files (Rev. 11)2018/05/23XLSX10K
-
Tmc Schraubstock 1 Ecad - Design Files (Rev. 1)2018/05/23ZIP37K
-
Gerber Schraubstock - Design Files (Rev. 11)2018/05/23ZIP40K
