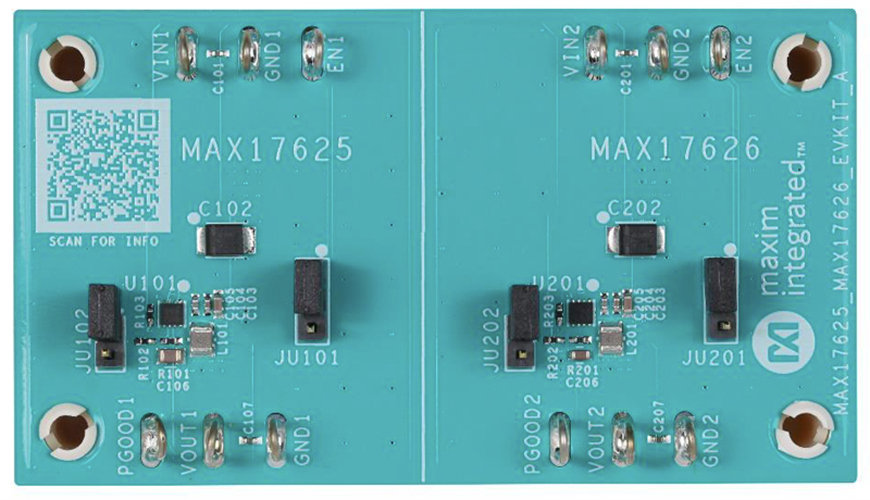

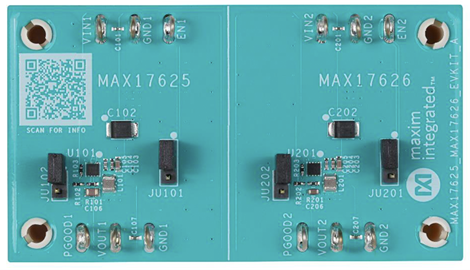

MAX17626EVKIT

Evaluation Kit for the MAX17625/MAX17626 Converters in Application

トップへ

製品概要

2.7V to 5.5V Input-Voltage Range
MAX17625 Offers High 90.6% Efficiency (V_IN = 3.3V, V_OUT = 1.2V, I_OUT = 400mA)
MAX17626 Offers High 94.5% Efficiency (V_IN = 5V, V_OUT = 3.3V, I_OUT = 500mA)
Up to 700mA Load Current
2MHz Fixed Switching Frequency for the MAX17625
4MHz Fixed Switching Frequency for the MAX17626
Selectable Pulse-Width Modulation (PWM) and Pulse-Frequency Modulation (PFM) Modes of Operation
Internal 1ms Soft-Start Time
Power-Good (PGOOD) Output with Pullup Resistor to Respective Input Voltages
Low-Profile, Surface-Mount Components
Proven PCB Layout
Fully Assembled and Tested
