EVAL-HMC7950
HMC7950 Evaluation Board
トップへ
製品概要
製品概要

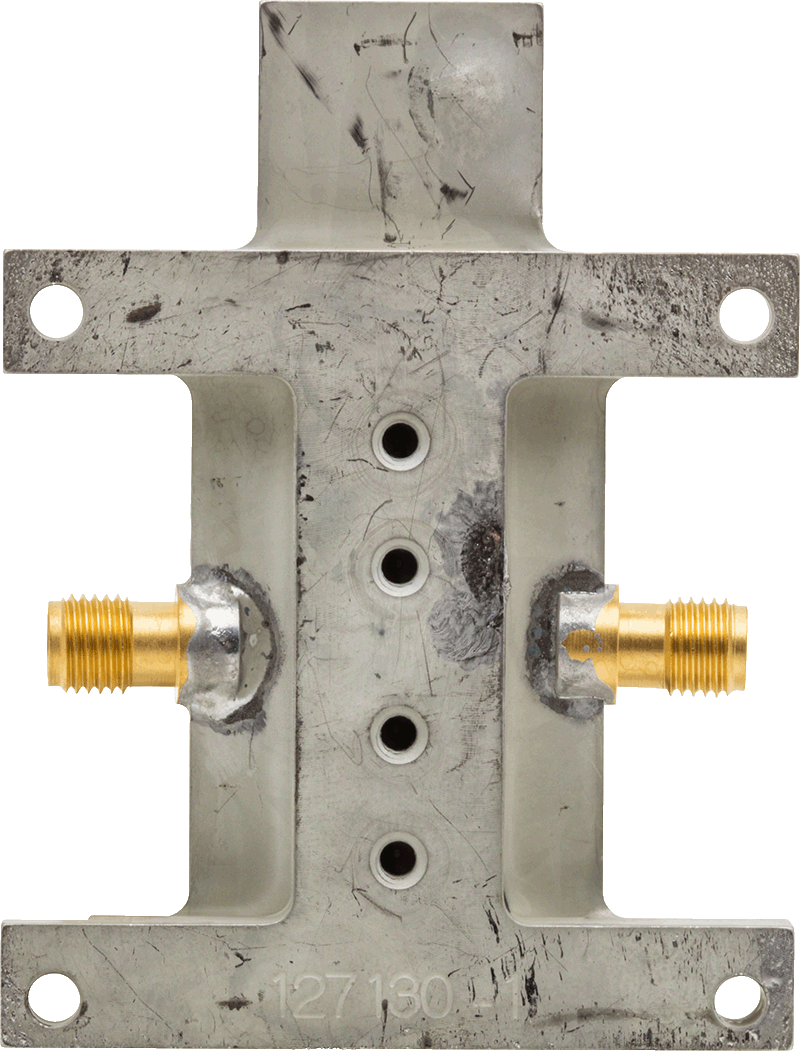

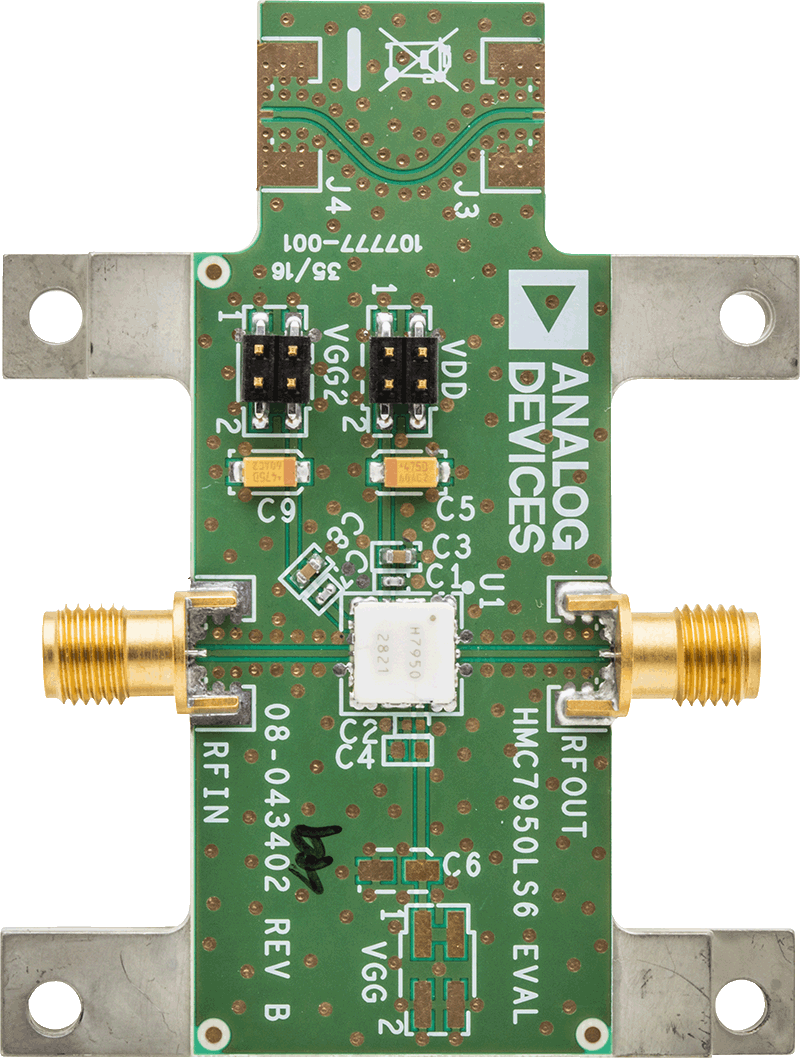

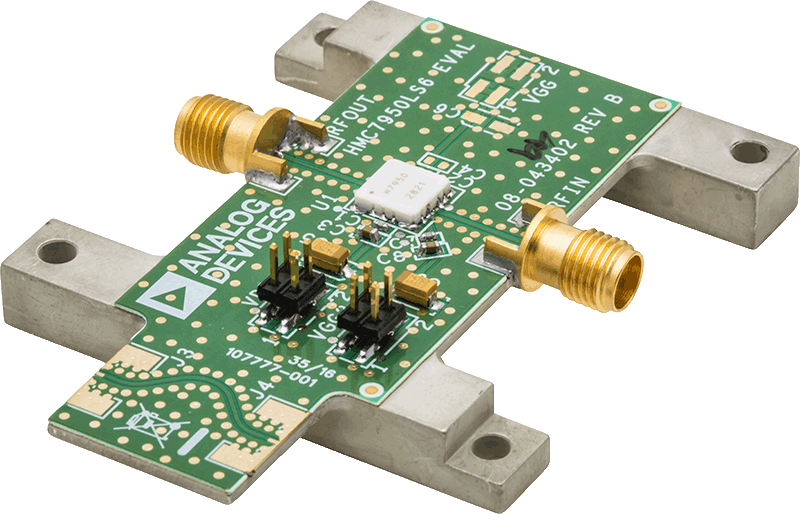

The HMC7950LS6 evaluation board is a two-layer board fabricated using Rogers 4350 and using best practices for high frequency RF design. The RF input and RF output traces have a 50 Ω characteristic impedance.
The evaluation board and populated components are designed to operate over the ambient temperature range of −40°C to +85°C. For proper bias sequence, please see the Applications Information section of the datasheet.
関連資料
-
HMC7950 Gerber Files2017/01/24ZIP208 K
