EVAL-ESS1-SYS
Scalable BMS Kit for Cell and Pack Monitoring
トップへ
製品概要
機能と利点
- Accurate voltage and current measurement
- Highly scalable and ease of integration
- Robust isoSPI capability implementable in daisy chain high count
- Inclusive passive balancing with individual pulse-width modulation
- Isolated power supply between microcontroller and battery monitoring devices
- High voltage and current supply measurement
- Fast overcurrent (OC) measurement
- Redundancy measurement
- Modular BMS Solution
製品概要
The EVAL-ESS1-SYS Solution Kit contains all the necessary building blocks to create a complete BMS solution stack.
The accompanying PC-based graphical user interface provides an intuitive interface that allows the user to configure the BMS signal chain components and view cell and stack voltage and current measurement results.

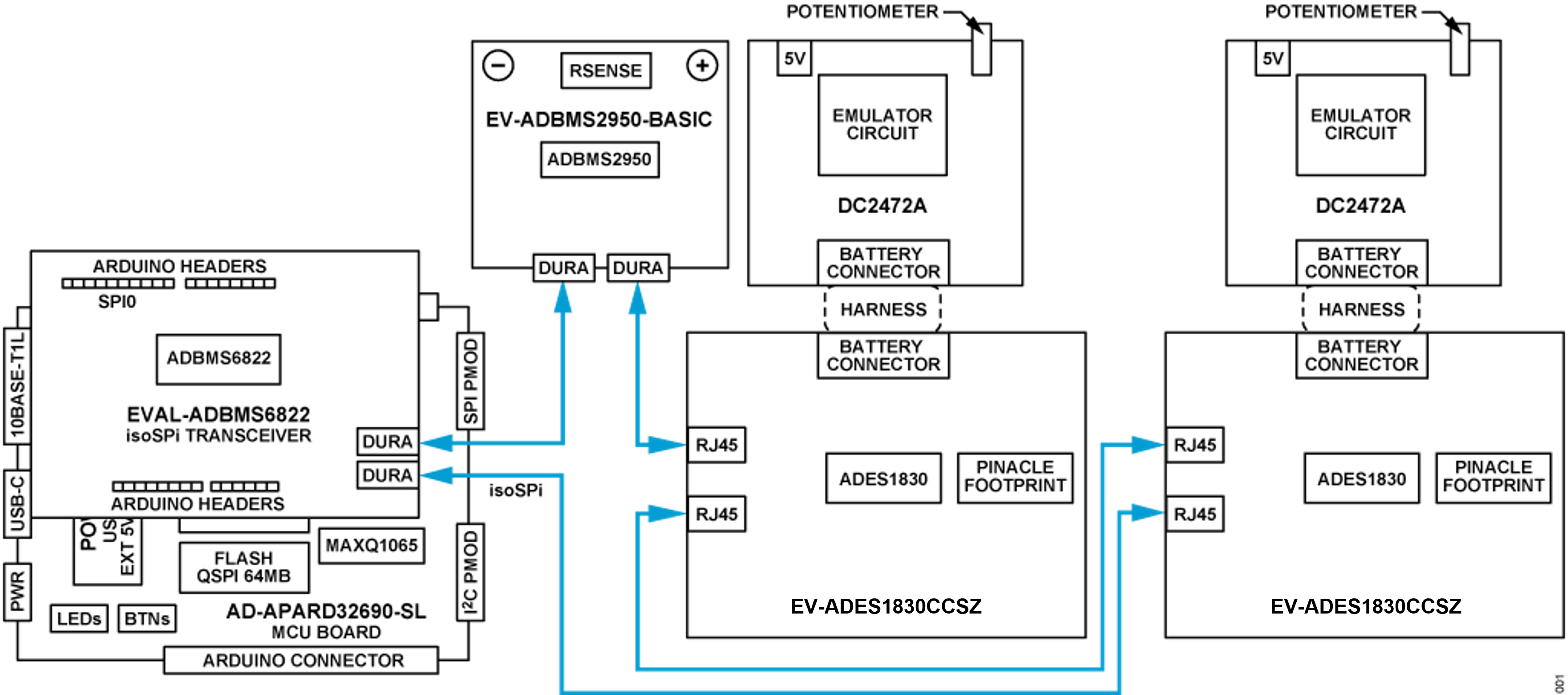

The package includes one application processor (AD-APARD32690-SL), one dual isoSPI adapter (EVAL-ADBMS6822), two 16-cell battery monitors (EV-ADES1830CCSZ), two 16-cell battery emulators (DC2472A), and one battery pack monitor (EVAL-ADBMS2950-BASIC).
Upon purchase, the EVAL-ESS1-SYS kit comes with the following boards and accessories:
Boards
- 2x EV-ADES1830CCSZ 16-Channel Battery Cell Monitor
- 2x DC2472A Battery Cell Emulator with harness fitted

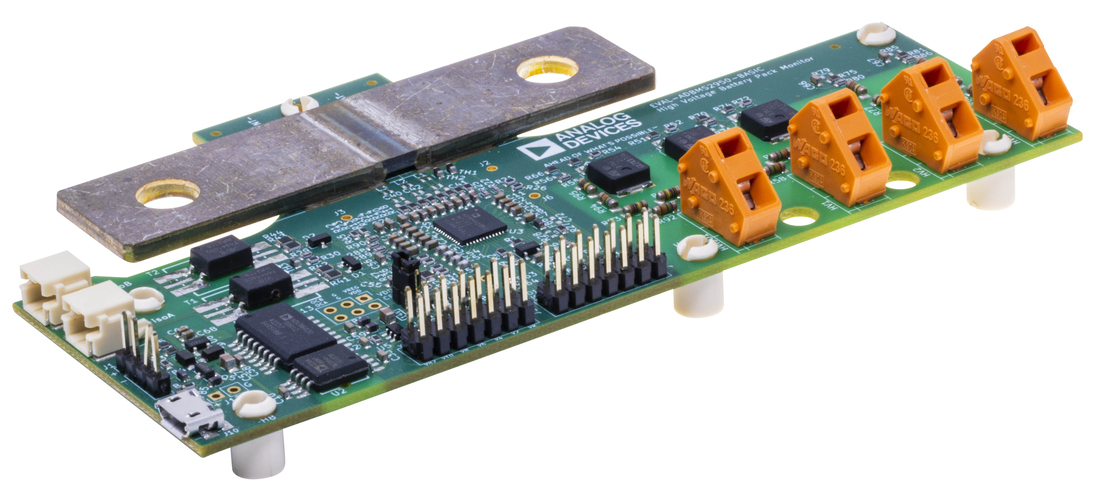

- 1x EVAL-ADBMS2950-BASIC Battery Pack Monitor

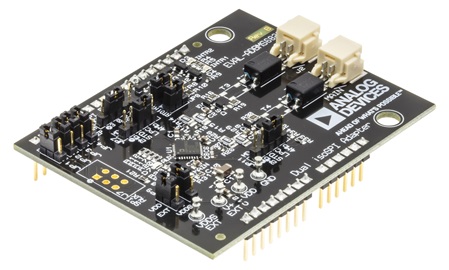

- 1x EVAL-ADBMS6822 Dual isoSPI Adapter
- 1x AD-APARD32690-SL ARM Cortex M4 Controller Board
- 1x AD-USB2.0T1L-EBZ
- 1x MAX32625PICO Programming Adapter with 10-pin SWD cable
Cables and Other Accessories
- 1x RJ45-to-RJ45
- 2x DuraClik-to-RJ45 Twisted Pair Cables
- 3x DuraClik isoSPI Twisted Pair Cables
- 3x USB Type A to Micro-B Cable
- 1x USB A to C-Type Cable
- 1x T1L STP Cable
APPLICATIONS
- IoT Battery Management
- Industrial Machine Vision
- Power Tools
- Mobile Robotics Battery Management
- Industrial Equipment Battery Monitoring
- Adaptive Battery Type System Monitoring
- Portable Energy Storage Systems
