EVAL-AUDIO-EX3

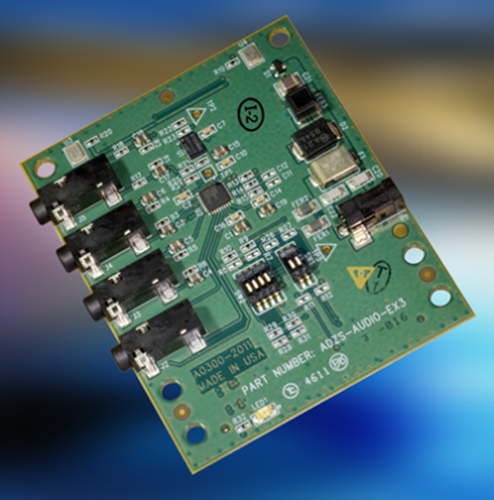

The audio EI3 extender board is a low-cost, plug-on extender for EZ-Boards that support the Expansion Interface 3 (EI3) specification. This extender supports evaluation of SigmaDSP Stereo 24-Bit Audio Codec and MEMS digital microphones with an embedded processor from Analog Devices. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

トップへ

機能と利点

Analog Devices ADAU1761 SigmaDSP Stereo, Low Power, 96 kHz, 24-bit Audio Codec with Integrated PLL.
Codec interfaces to the embedded processor via SPORT for Serial Data I/O and TWI for configuration and control.
Two Analog Devices ADMP421 iMEMS Microphones, high performance, low power, digital output.
Pulse density modulated microphone outputs can be time multiplexed on a single data line using a single clock

製品概要

The Audio EI3 Extender Board, an EZ-Extender^® product, provides a platform for evaluating Analog Devices’ SigmaDSP Stereo 24-Bit Audio Codec and MEMS digital microphones, using Analog Devices’ embedded processor evaluation boards (EZ-Board^®). This Audio EI3 Extender Board connects with any of the new line of embedded processor EZ-Boards that support the Expansion Interface 3 (EI3) specification. This new expansion interface gives the user more available signals on the interface connectors and a reduction in size over the previous EI2 specification. Software examples are provided to demonstrate the functionality of the devices on the Extender Board.

Ordering Information
Part number: ADZS-AUDIO-EX3

CROSSCORE^® Tools Support:
Tel: 1-800-ANALOGD (262-5643)

Contact Support

推奨システム動作環境

Windows XP Professional SP3 (32-bit only).
Windows Vista Business/Enterprise/Ultimate SP2 (32-bit only). It is recommended to install the software in a non-UAC-protected location.
Windows 7 Professional/Enterprise/Ultimate (32 and 64-bit). It is recommended to install the software in a non-UAC-protected location.
Minimum of 2 GHz single core processor, 3.3 GHz dual core is recommended.
Minimum of 1 GB memory (RAM), 4 GB is recommended.
Minimum of 2 GB hard disk (HDD) space is required.
CrossCore Embedded Studio for Analog Devices Processors.
