ADL5906 Evaluation Board
トップへ
製品概要
製品概要

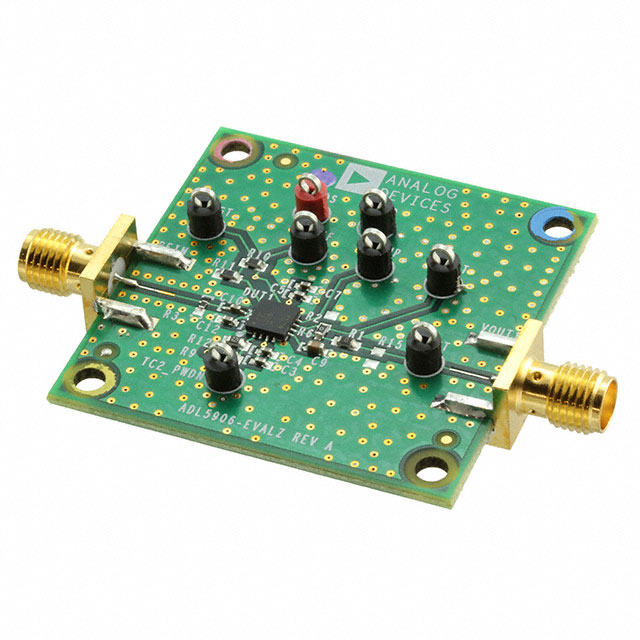

The ADL5906-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. For normal operation, it requires a 5 V/100 mA power supply. The 5 V power supply must be connected to the VPOS and GND test loops. The RF input signal is applied to the SMA connector (RFIN). The output voltage is available on the SMA connector (VOUT1) or on the test loop (VOUT).
関連資料
-
ADL5906 Gerber Files2013/03/22ZIP499 kB
