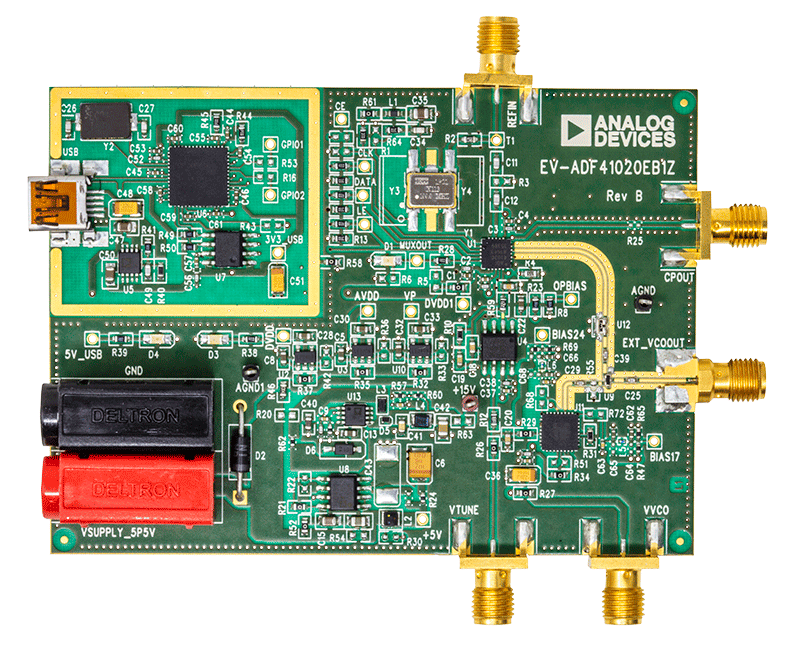

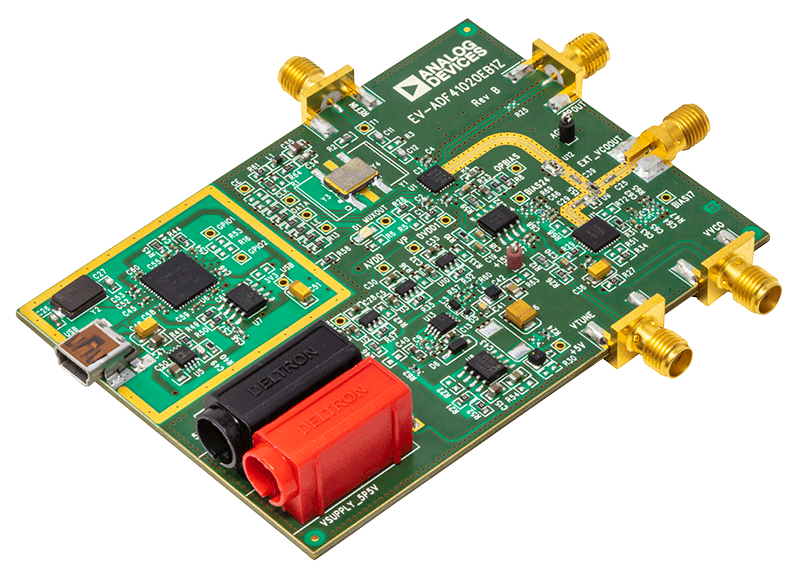

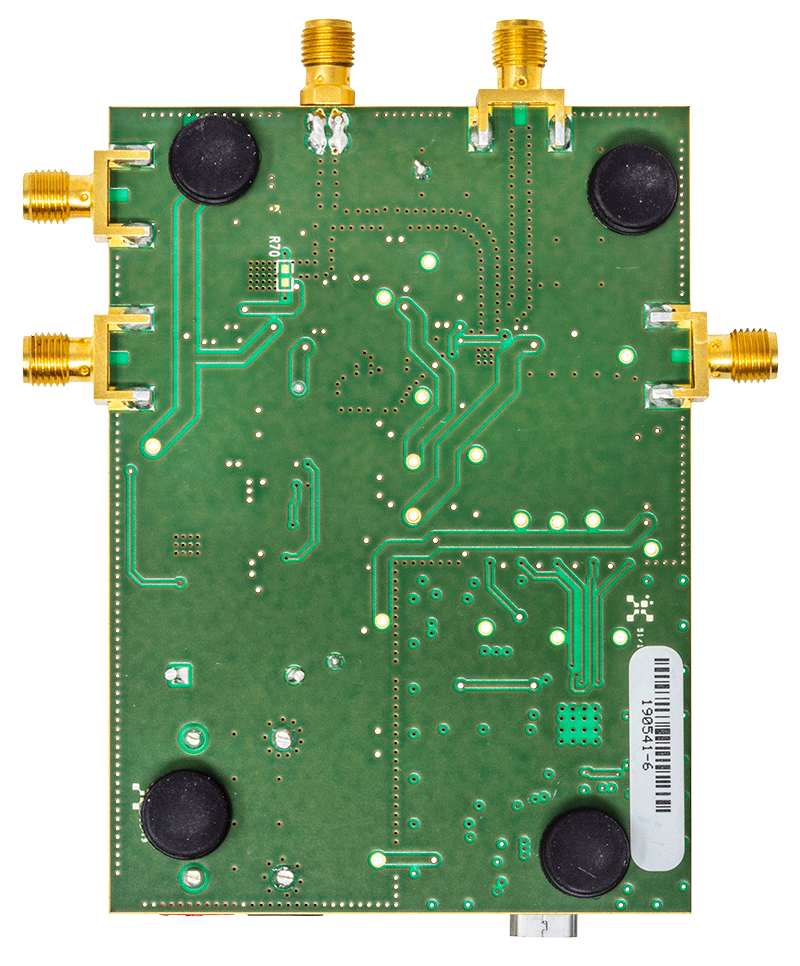

The EV-ADF41020EB1Z evaluation board is designed to let the user evaluate the performance of the ADF41020 frequency synthesizer for phase-locked loops (PLLs). The board contains the ADF41020 synthesizer, a 100 MHz TCXO and power supplies, USB interface, and RF output connectors. There is also an active loop filter and a 13 GHz VCO on board. The evaluation kit contains software that is compatible with Windows® XP and later versions to allow easy programming of the synthesizer.
関連資料
-
UG-476: PLL Software Installation Guide2018/12/21PDF421 K
-
UG-405: Evaluation Board for the ADF41020 PLL Frequency Synthesizer (Rev. B)2016/04/26PDF1 M
-
UG-476: PLL Software Installation Guide2015/08/10PDF520 kB
