製品概要

製品概要

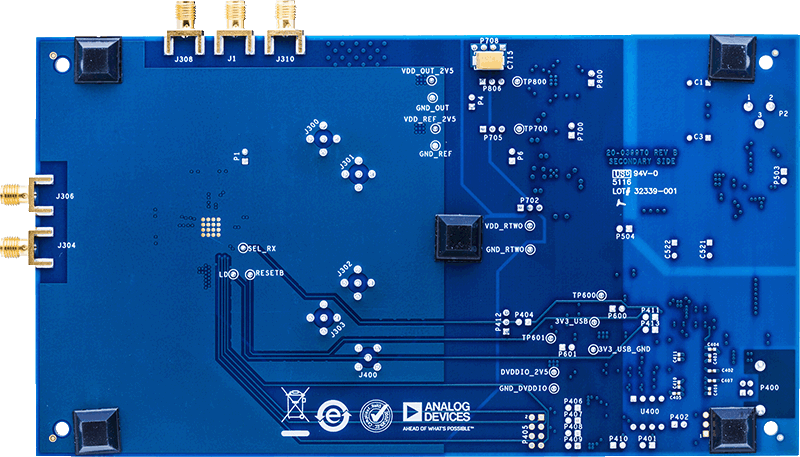

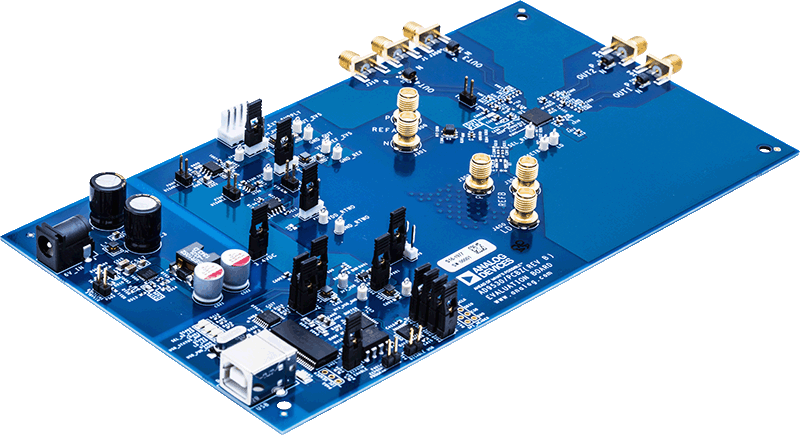

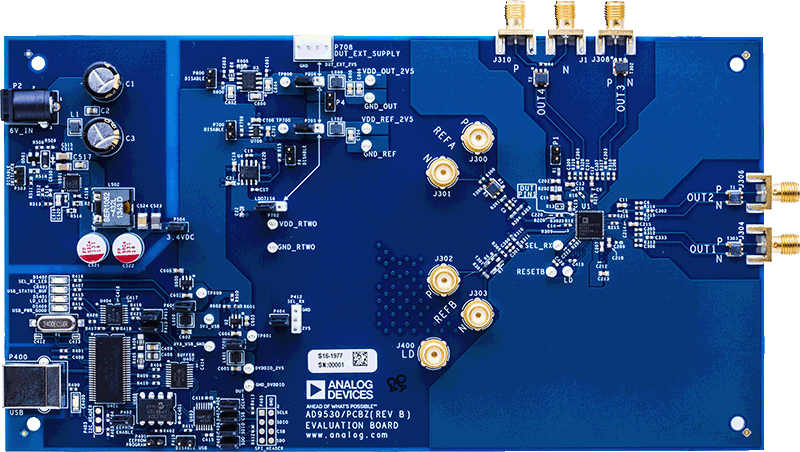

The AD9530 evaluation board (AD9530/PCBZ) is a compact, easy-to-use platform for evaluating many features of the AD9530. The AD9530 is a fully integrated integer-N PLL and distribution supporting clock clean up and frequency translation for 100Gb/sec optical transport network (OTN) applications. The internal PLL can lock to one of two reference frequencies to generate four discrete frequencies up to 2.7GHz.

対象となる製品

関連資料

  • すべてを表示 (4)
  • デモ・ボード回路図 (1)
  • 評価用設計ファイル (3)
    • Document Type

    ソフトウェア

    評価用ソフトウェア

    EXE
    3.82 M
    AD9530 Setup Web Installer (Rev. 1.0.0.0)
    This evaluation software web installer does not include Microsoft .NET Framework. An internet connection is required to download Microsoft .NET Framework. The software is 32-bit/64-bit compatible.
    EXE
    52.22 M
    AD9530 Setup Full Installer (Rev. 1.0.0.0)
    This evaluation software full installer includes Microsoft .NET Framework. The software is 32-bit/64-bit compatible.
    EXE
    7.35 M
    Evaluation Board USB Flash Programmer
    Contains the EXE file for re-flashing the USB EEPROM.
