EVAL-AD5322 評価用ボード | アナログ・デバイセズ

製品概要

機能と利点
製品概要

機能と利点

Full featured evaluation board in conjunction with nanoDAC^® motherboard (EVAL-MBnanoDAC-SDZ)
On-board references
Various link options
PC control in conjunction with Analog Devices, Inc., system demonstration platform (SDP)

製品概要

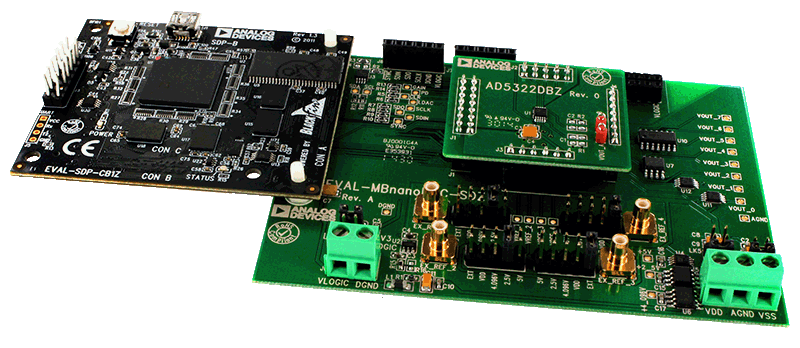

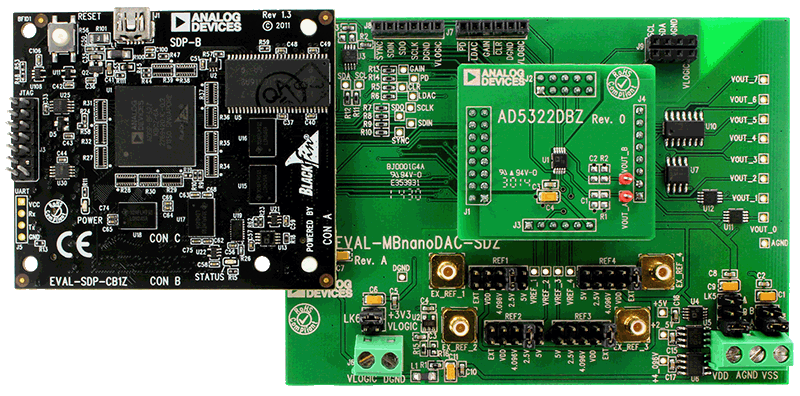

The AD5322DBZ evaluation board is designed to help users quickly prototype new AD5322 circuits and reduce design time. The AD5322 operates from a single 2.5 V to 5.5 V supply.

For full data, see the AD5322 data sheet, which must be consulted in conjunction with UG-973 when using the evaluation board.

The evaluation board interfaces to the USB port of a PC via the SDP-B board. Software is available for download to allow the user to program the AD5322.
