DC922A
LTC3736EUF-2 Demo Board | 2-Phase, 2.7V ≤ VIN ≤ 8V, VOUT1 = 2.5V @ 5A, VOUT2 = 1.8V @ 5A
トップへ
製品概要
製品概要
Demonstration circuit 922 is a 2-phase dual synchronous high efficiency step-down DC/DC converter featuring the LTC3736EUF-2 controller.The "-2" version features pulse-skipping (in place of Burst Mode operation) at light loads and has a tighter voltage reference accuracy over temperature when compared with the LTC3736 "plain" version. The demo board operates with a 2.7V to 8V input voltage range and provides outputs of 2.5V@5A and 1.8V@5A.
対象となる製品
関連資料
-

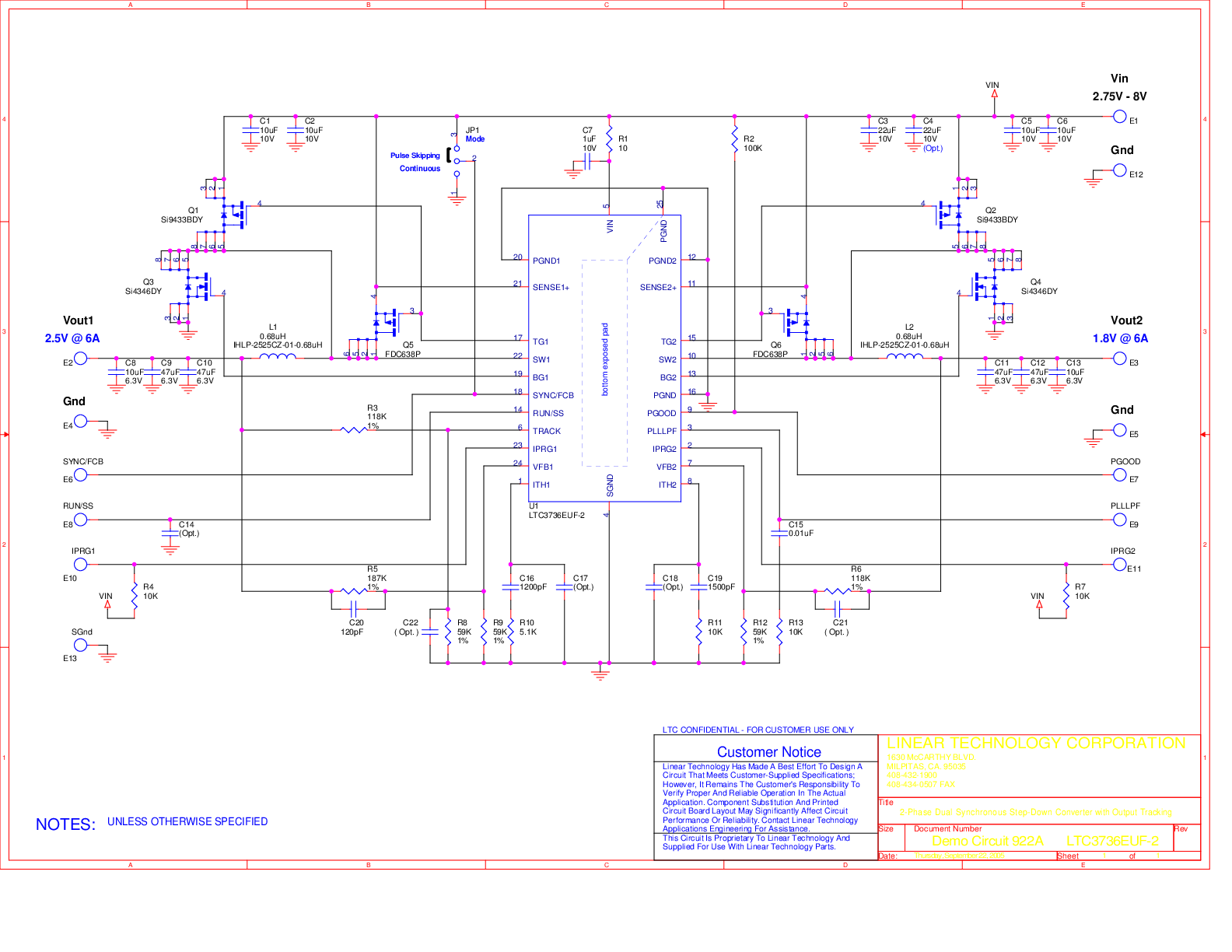

DC922A - Schematic2009/09/24PDF31K
-
DC922A - Demo Manual2009/09/24PDF393K
-
DC922A - Design File2009/09/24ZIP616K
