DC897A
LT3493EDCB Demo Board | 4.5V ≤ VIN ≤ 36V, VOUT = 3.3V @ 1.2A
トップへ
製品概要
製品概要
Demonstration circuit 897 is a monolithic step-down DC/DC swithcing regulator featureing the LT3493. The demo board is designed to provide 3.3V @ 1.2A from a 4.5V to 36V input. Other features of the LT3493 include a fixed 750kHz switching frequency and Internal compenation
対象となる製品
関連資料
-

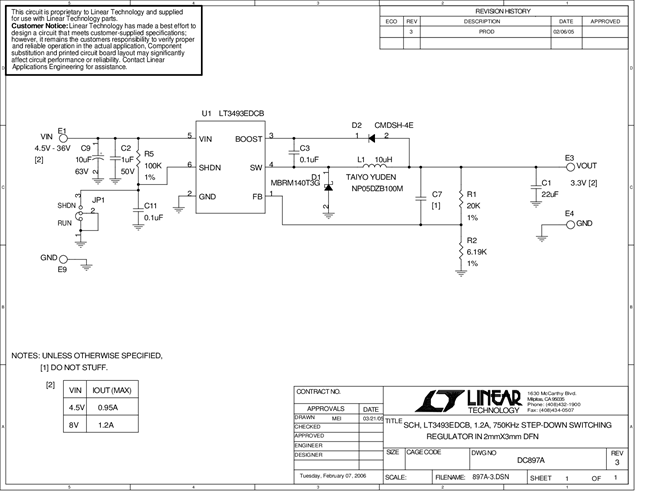

DC897A - Schematic2009/09/24PDF23K
-
DC897A - Demo Manual2009/09/24PDF255K
-
DC897A - Design File2009/09/24ZIP567K
