DC856A
LTC3427EDC Demo Board | 1.8V ≤ VIN ≤ 3.6V, VOUT = 3.3V @ 180mA
トップへ
製品概要
製品概要
Demonstration circuit 856A is a 500mA, 1.25MHz Synchronous Boost Converter featuring the LTC3427EDC. The demo circuit demonstrates a DC/DC boost converter, with a 500mA switch current limit, providing 3.3V at 180mA from a 1.8V to 3.6V input voltage.
対象となる製品
関連資料
-

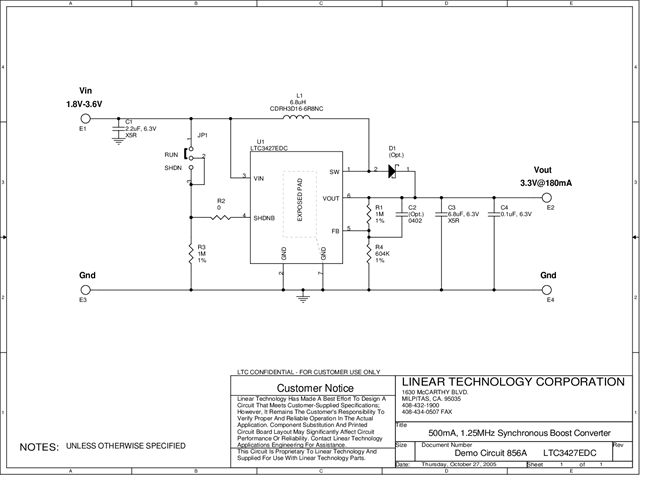

DC856A - Schematic2009/09/24PDF17K
-
DC856A - Demo Manual2009/09/24PDF392K
-
DC856A - Design File2009/09/24ZIP403K
