DC825A
LT1936EMS8E Demo Board | VIN = 4.5V to 36V, VOUT = 5V or 3.3V @1.2A
トップへ
製品概要
製品概要
Demonstration circuit 825 is a monolithic step-down DC/DC switching regulator featuring the LT1936. The demo board is optimized for 3.3V output at 1.2A from a 4.5V to 36V input or a 5V, 1.2A output from a 6.8V to 36V input. The output is selectable by placing the JP1 jumper at the 3.3V or 5V position.
対象となる製品
関連資料
-

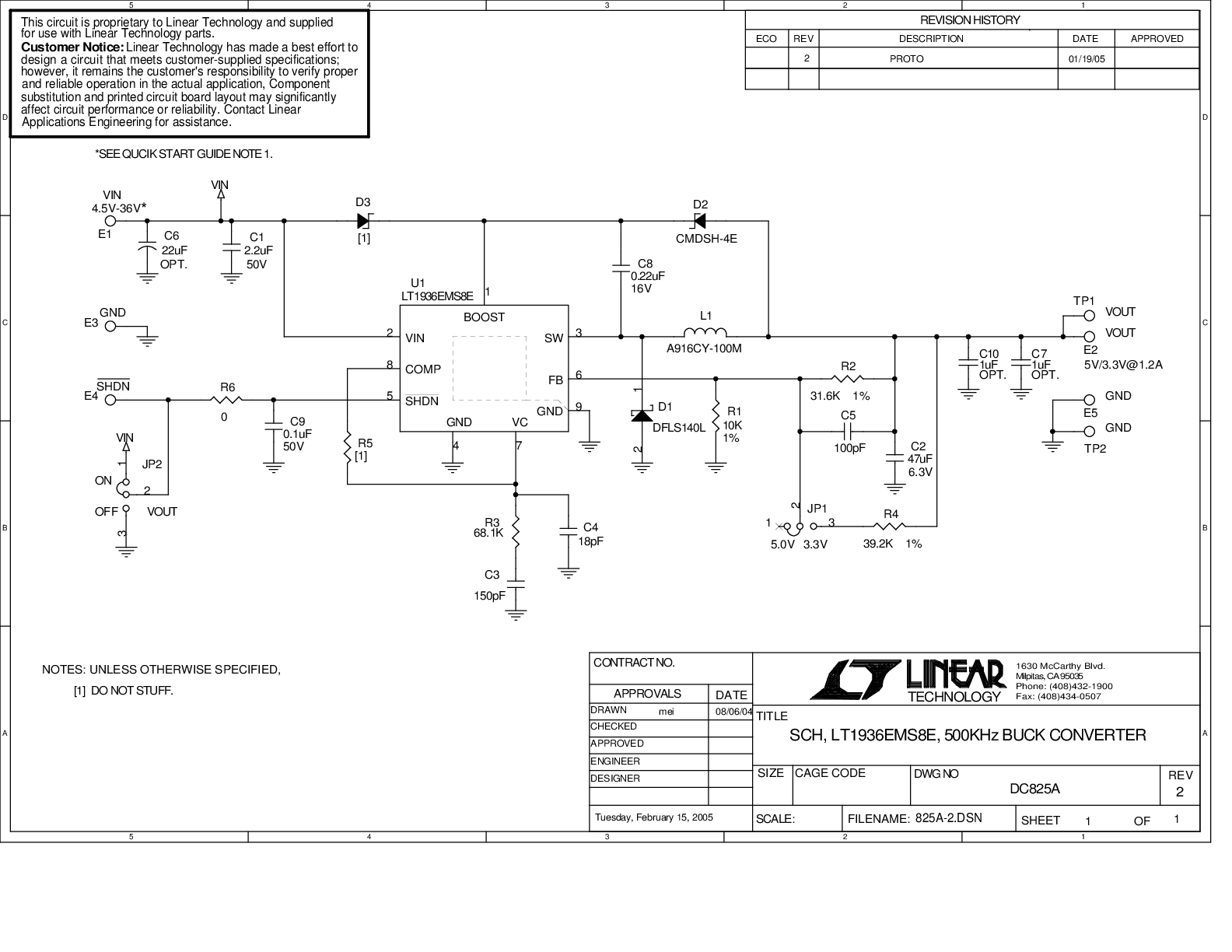

DC825A - Schematic2009/09/24PDF24K
-
DC825A - Demo Manual2009/09/24PDF841K
-
DC825A - Design File2009/09/24ZIP513K
