DC813A
LT3013EDE Demo Board | Micropower Low Dropout Linear Regulator, PWRGD, 3V ≤ VIN ≤ 80V, VOUT = 3.3V/5V/Adjustable @ 250mA
トップへ
製品概要
製品概要

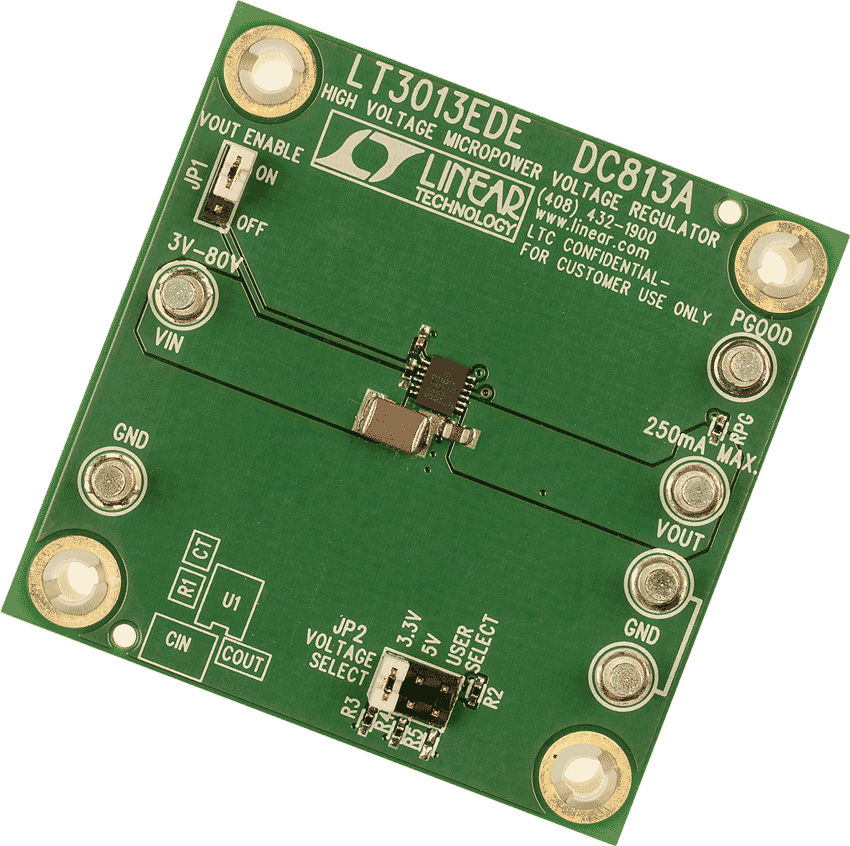

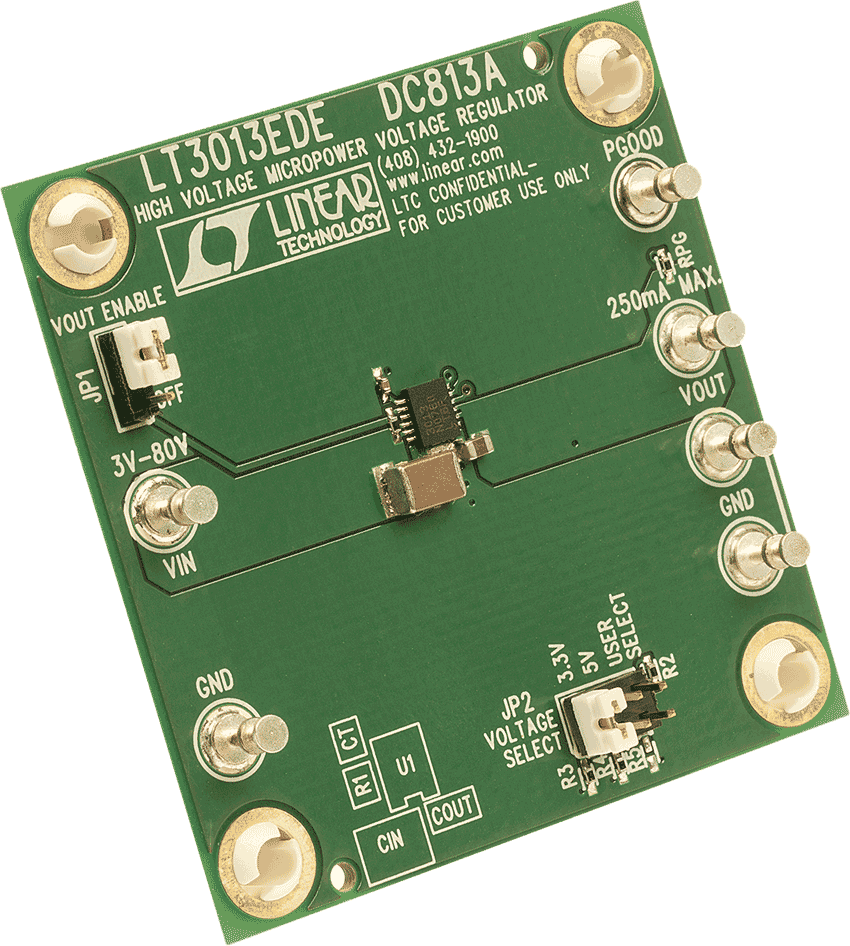

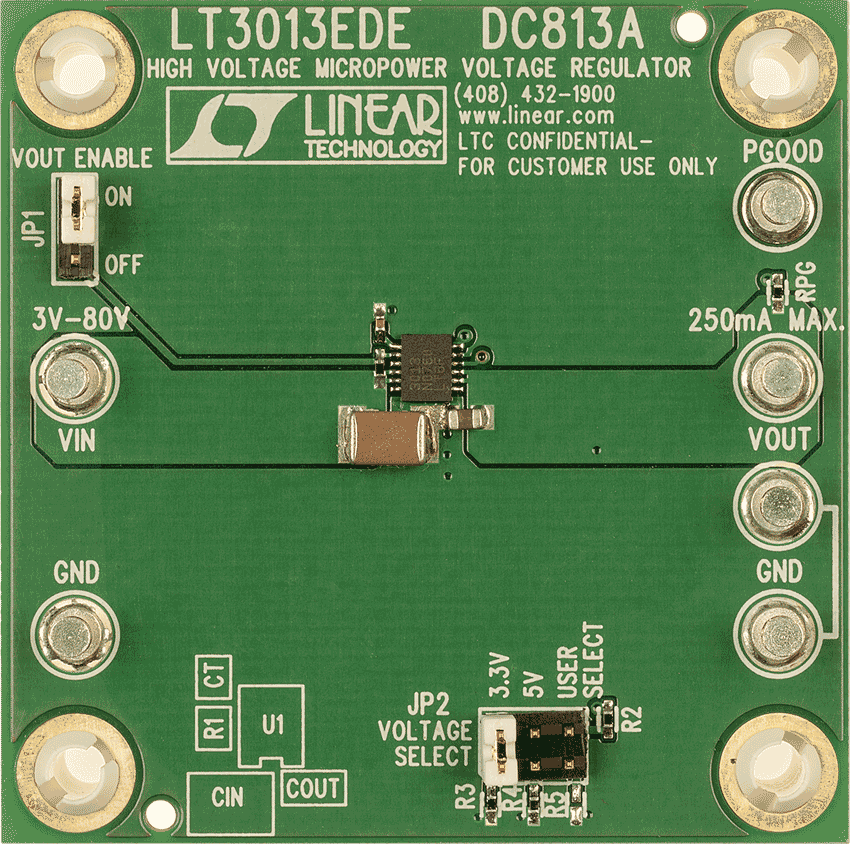

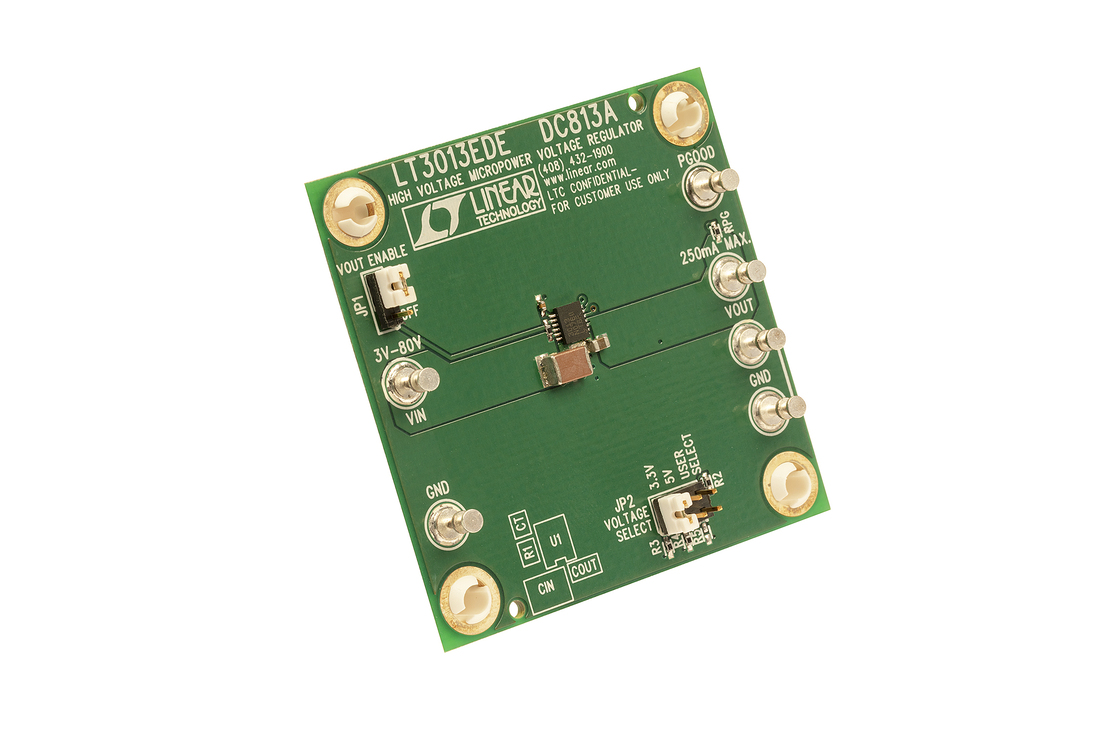

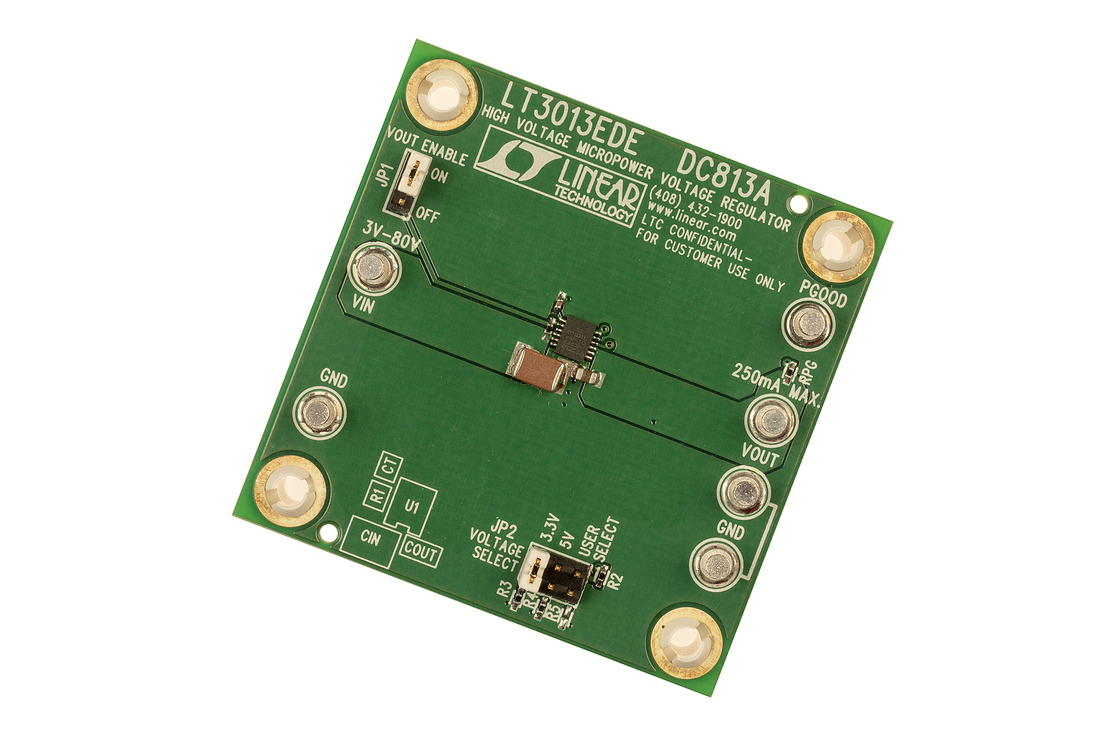

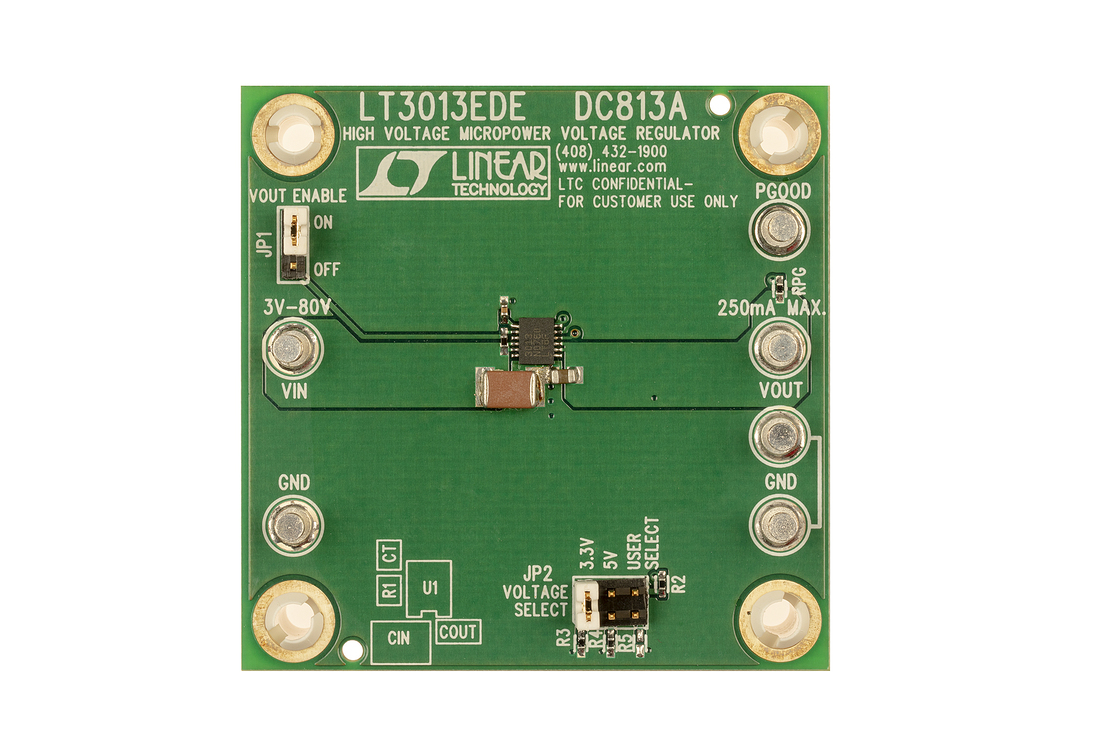

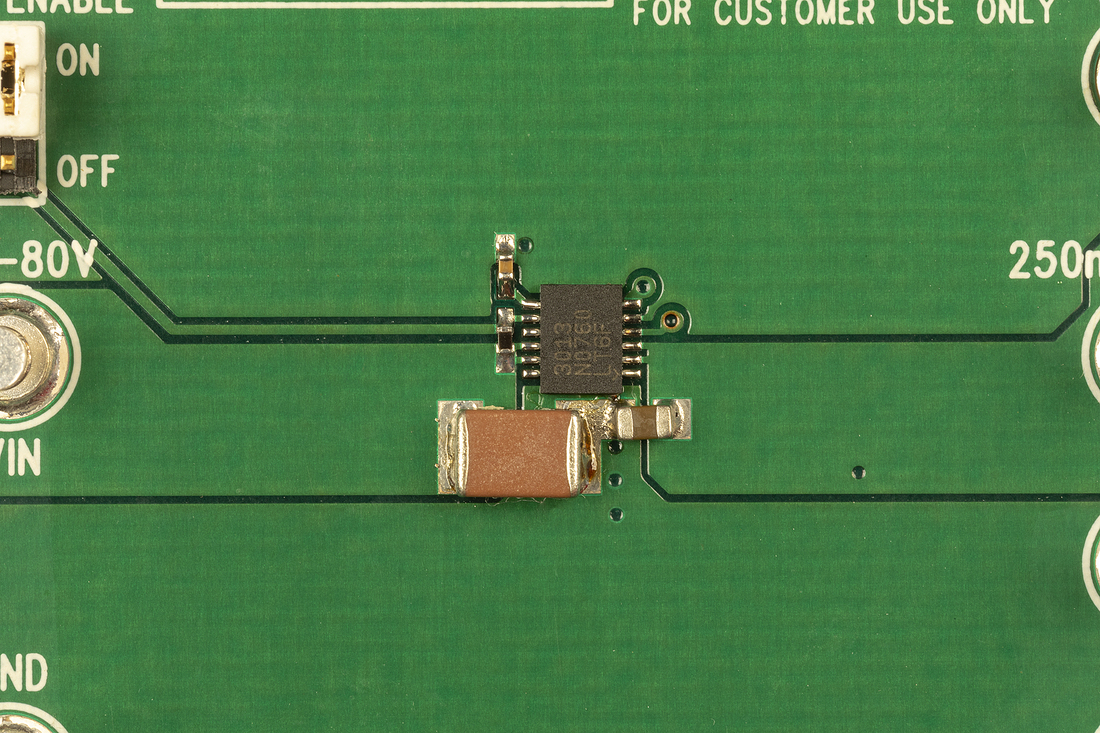

Demonstration circuit 813 is a high voltage micropower voltage regulator using the LT3013 low dropout linear regulator in a low-profile 12-pin DFN package. DC813 has an input voltage range from 3V to 80V, a jumper-selectable output voltage of 3.3V, 5V or a user-defined value (1.24V and 60V), and is capable of delivering 250mA max. The LT3013 has a 65µA typical no-load) quiescent current and a 1µA shutdown current.
関連資料
-

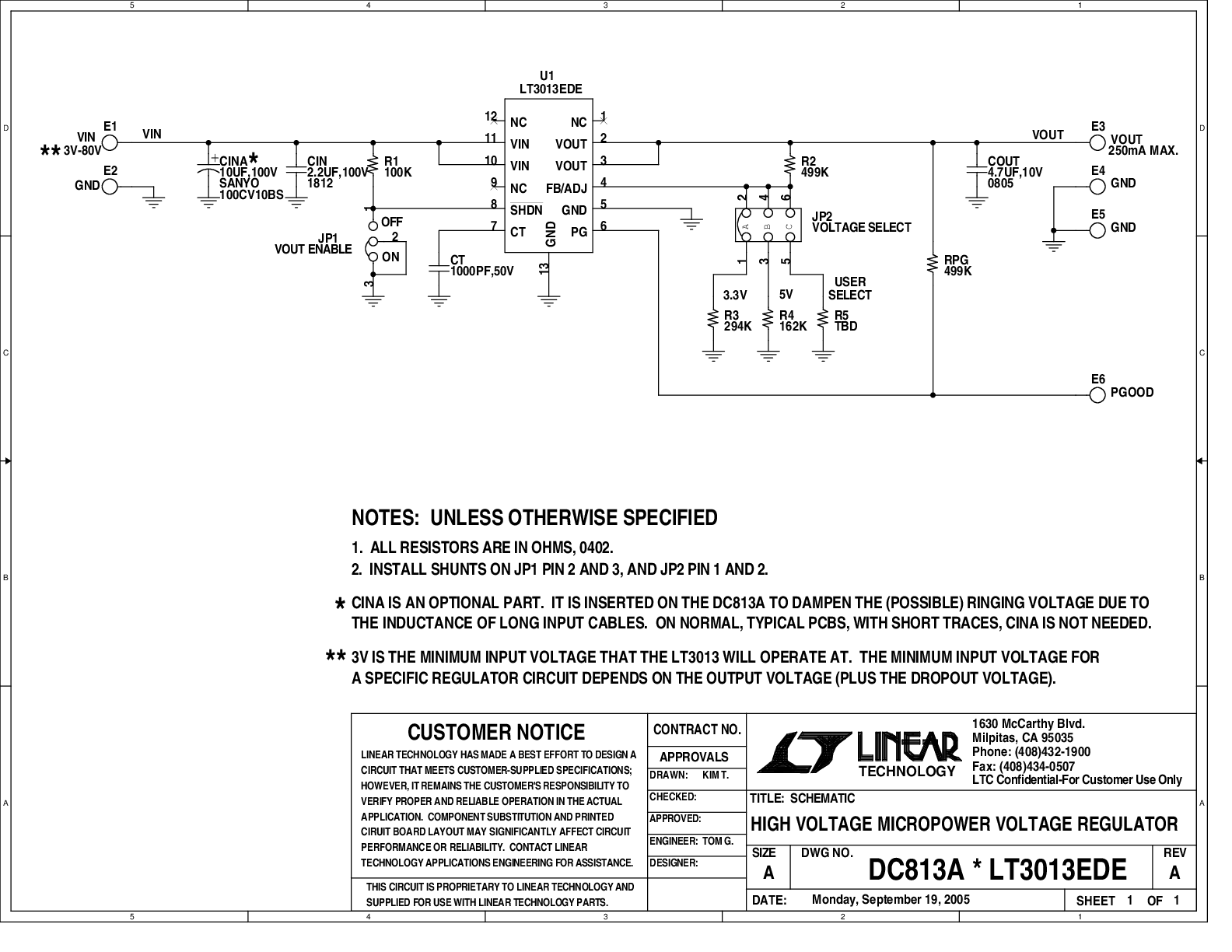

DC813A - Schematic2009/09/24PDF27K
-
DC813A - Demo Manual2009/09/24PDF609K
-
DC813A - Design File2009/09/24ZIP624K
