DC769A
LTC3808EDE Demo Board | Tracking, Spread Spectrum, Prog Peak Current, VIN = 2.7V to 8V, VOUT = 1.8V @ 5A/3.5A/2.5A
トップへ
製品概要
製品概要
Demonstration circuit 769A is a high efficiency synchronous step-down DC/DC converter with output tracking and spread spectrum functions featuring the LTC3808EDE No RSENSE controller. The demo board provides 1.8V @ up to 5A output current from a 2.7V to 8V input voltage. A jumper allows the user to adjust the peak current limit, thereby setting the maximum output current to 5A, 3.5A or 2.5A.
対象となる製品
関連資料
-

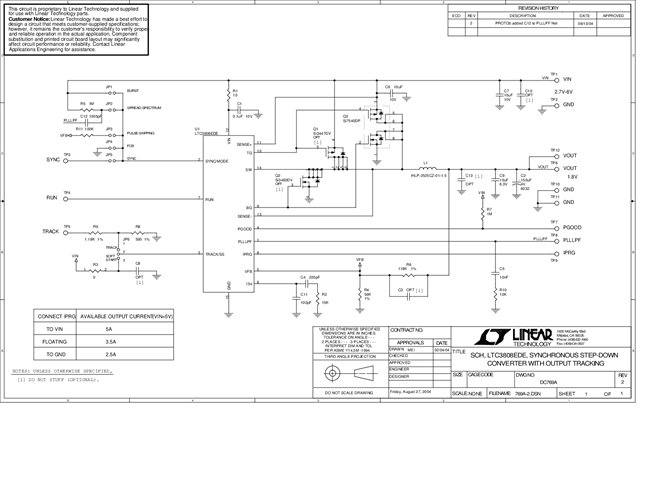

DC769A - Schematic2009/09/24PDF33K
-
DC769A - Demo Manual2009/09/24PDF198K
-
DC769A - Design File2009/09/24ZIP648K
