DC703A
LTC3459ES6 Demo Board | VIN = 1.8V to 5.5V, VOUT = 8V @ 2mA/20mA/40mA
トップへ
製品概要
製品概要
Demonstration circuit 703 features the LTC3459 10V micropower synchronous boost converter. The circuit in DC703 is designed to generate an 8V output from a 1.8V to 5.5V input voltage range. The maximum output current is 40mA and is dependent on the input voltage.
マーケット＆テクノロジー
対象となる製品
関連資料
-

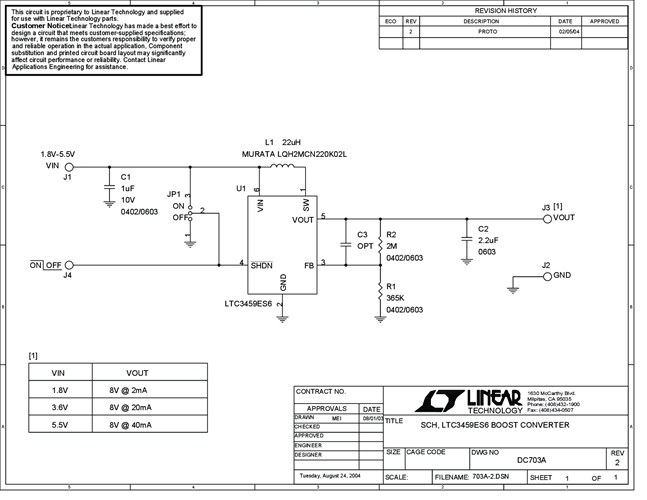

DC703A - Schematic2009/09/24PDF54K
-
DC703A - Demo Manual2009/09/24PDF179K
-
DC703A - Design File2009/09/24ZIP836K
