DC697A
LT1943EFE | 4-Output Switching Regulator For TFT-LCD Panels, VIN = 4.5V - 8V, VOUT = 3.3V @ 1.5A, 13V @ 500mA, 30V @ 20mA, -10V @ 50mA
トップへ
製品概要
製品概要
DC697A: Demo Board for the LT1943 High Current Quad Output Regulator for TFT LCD Panels.
対象となる製品
関連資料
-

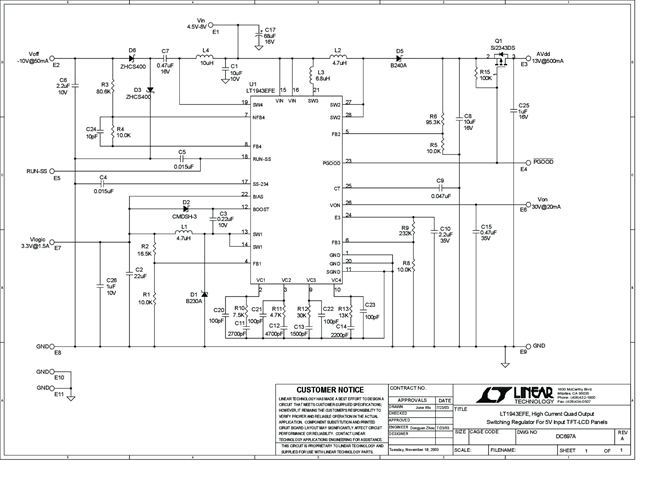

DC697A - Schematic2009/09/24PDF60K
-
DC697A - Demo Manual2009/09/24PDF112K
-
DC697A - Design File2009/09/24ZIP582K
