DC692A
LTC3426ES6 Demo Board | 1.2MHz, VIN=1.8V to 4.2V, VOUT=5V@400mA-800mA
トップへ
製品概要
製品概要
Demonstration circuit 692 is a high efficiency 1.2MHz boost DC/DC converter featuring the LTC3426ES6. The board is capable of supplying 5V at 400mA from 1.8V to input. It can deliver 5V at 800mA from a 3.3V input. The converter has internal soft start and internal frequency compensation features.
対象となる製品
関連資料
-

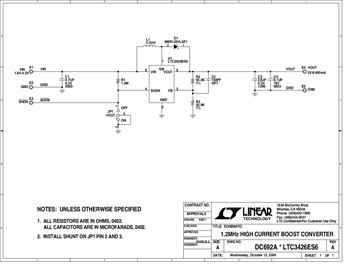

DC692A - Schematic2009/09/24PDF22K
-
DC692A - Demo Manual2009/09/24PDF406K
-
DC692A - Design File2009/09/24ZIP441K
