DC620A
LT1943EFE | 4-Output Switching Regulators for TFT-LCD Panels, VIN = 8 to 20V, VOUT = 3.3V @ 2A, 13V @ 500mA, 30V @ 30mA, –10V @ 50mA
トップへ
製品概要
製品概要
DC620A: Demo Board for the LT1943 High Current Quad Output Regulator for TFT LCD Panels.
対象となる製品
関連資料
-

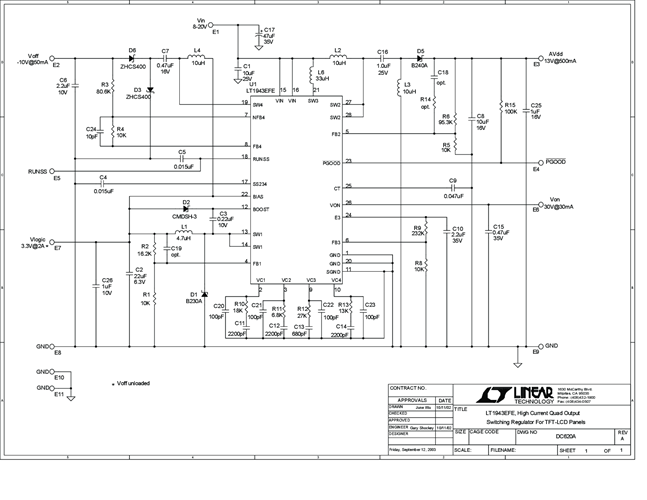

DC620A - Schematic2009/09/24PDF47K
-
DC620A - Demo Manual2009/09/24PDF170K
-
DC620A - Design File2009/09/24ZIP584K
