DC471A
LT3430EFE | High Voltage Buck Converter, VIN = 7.5V to 60V, VOUT = 5V @ 2A
トップへ
製品概要
製品概要

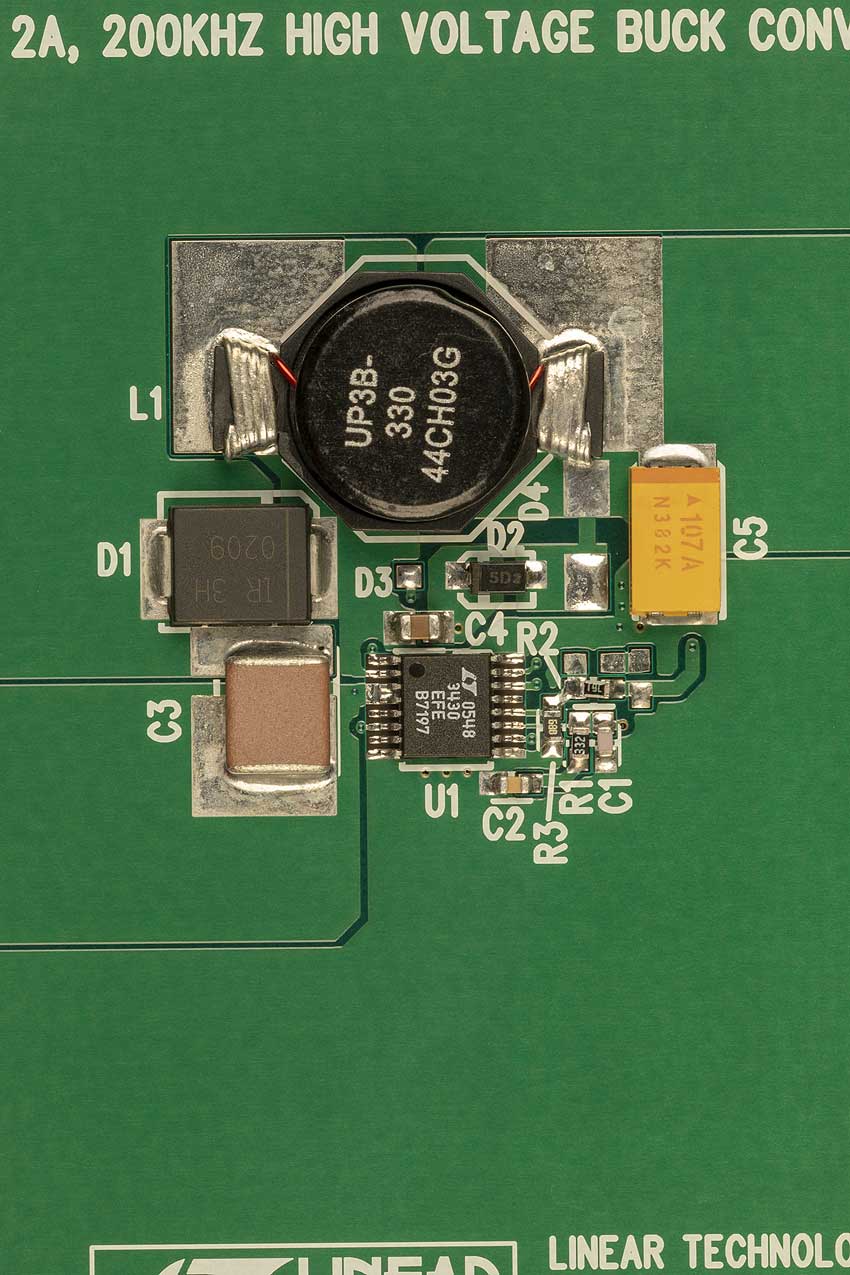

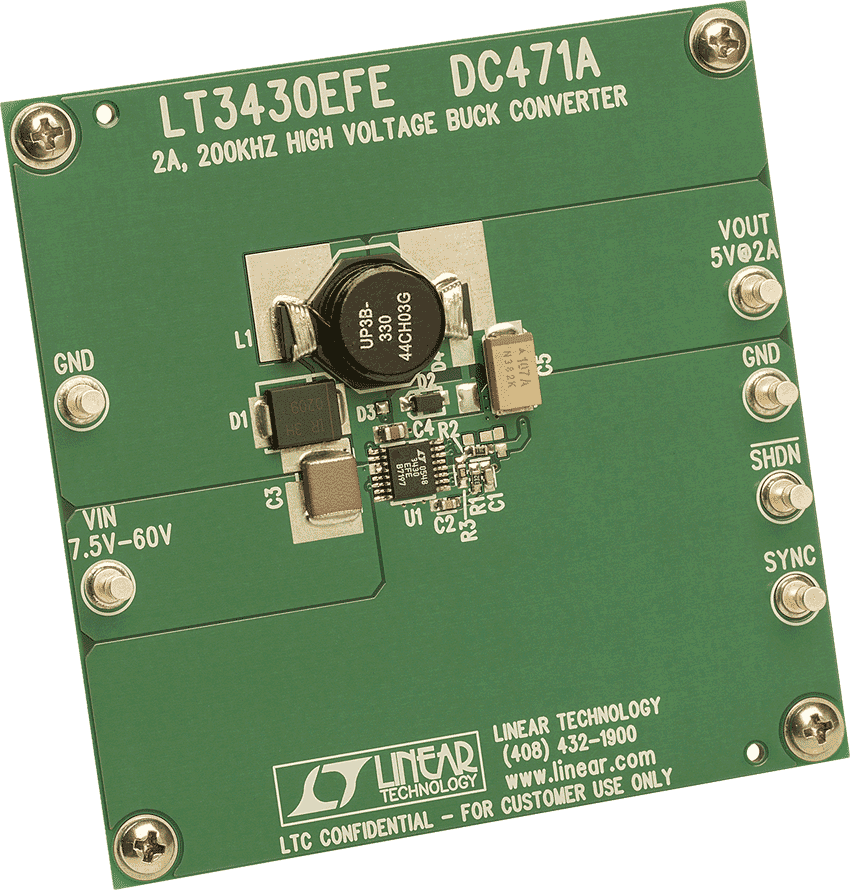

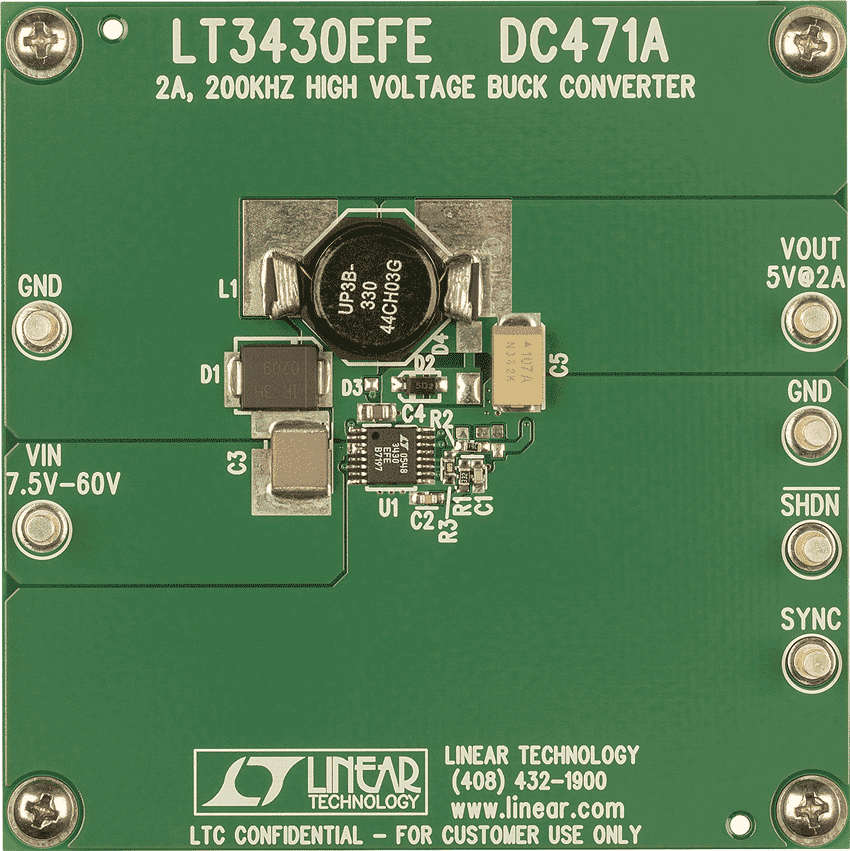

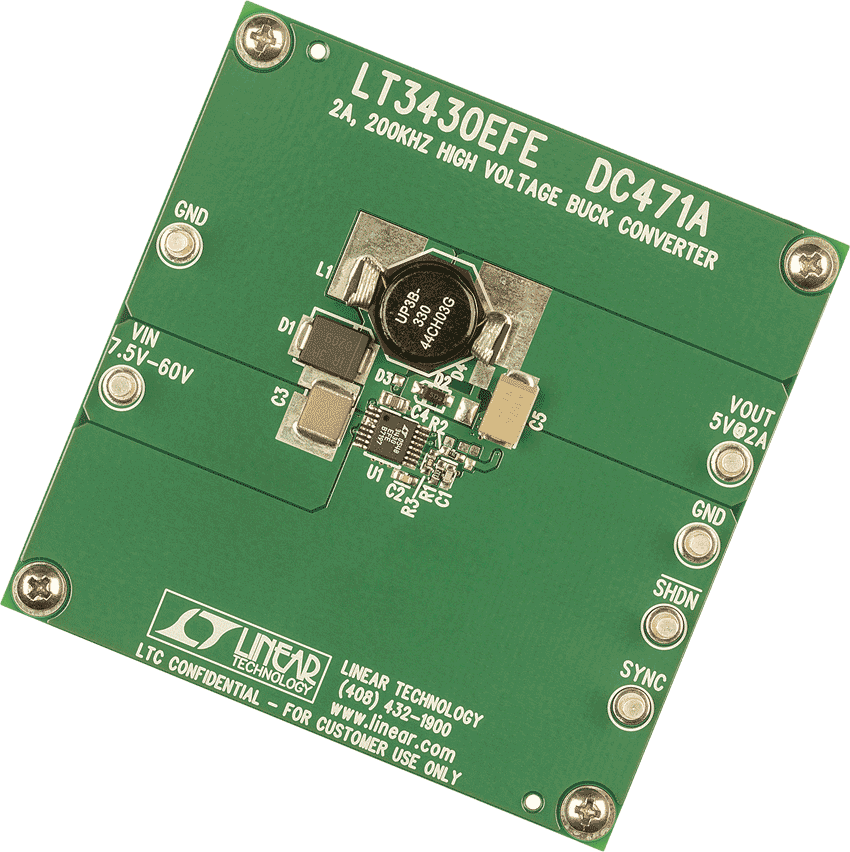

Demonstration circuit 471 is a 60V, 200kHz, monolithic step-down DC/DC switching converter using the LT3430. The circuit is designed for a 7.5V to 60V input, and provides a 5.0V output at 2A load current.
対象となる製品
関連資料
-
DC471A - Schematic2009/09/24PDF24K
-
DC471A - Demo Manual2009/09/24PDF431K
-
DC471A - Design File2009/09/24ZIP724K
