DC447A
LTC3728EUH | 2-Phase Dual Output Power Supply, VIN = 5V - 14V, VOUT1 = 2.5V @ 13A, VOUT2 = 1.8V @ 13A
トップへ
製品概要
製品概要
Demonstration circuit 447 is a step-down converter featuring the LTC3728EUH regulator. The PolyPhase® dual output controller LTC3728EUH drives two high current synchronous buck converters. Input is 5V–14V, output 1 is 2.5V with loads up to 13A and output 2 is 1.8V with loads up to 13A. For applications with input voltage less than 5V, DC447 includes a circuit footprint on the bottom side to provide a 5V bias power supply.
対象となる製品
関連資料
-

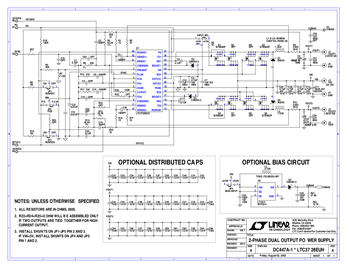

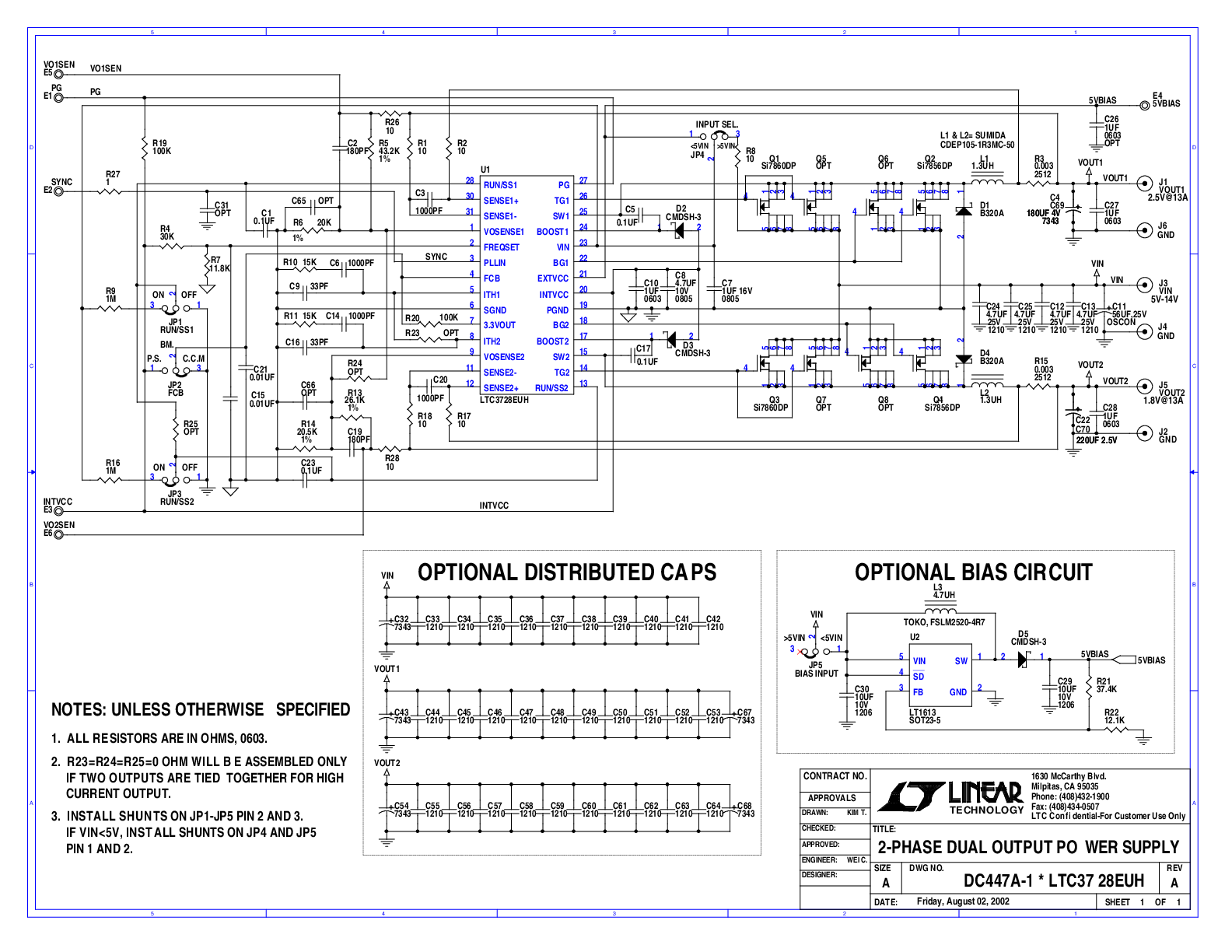

DC447A - Schematic2009/09/24PDF64K
-
DC447A - Demo Manual2009/09/24PDF513K
-
DC447A - Design File2009/09/24ZIP2M
