DC438A
LTC3731CG | 3-Phase, VIN = 9V to 14V, VOUT = 2.5V/1.8V @ 60A
トップへ
製品概要
製品概要
Demonstration circuit 438 is a triple phase, single output synchronous buck converter featuring the LTC3731CG. This circuit can be used for desktop computers and servers, notebook computers and other high output current DC/DC converters. The output voltage can be configured for either 2.5V or 1.8V and the maximum load current is 60A. The input voltage range of DC438 is 9V to 14V.
対象となる製品
関連資料
-

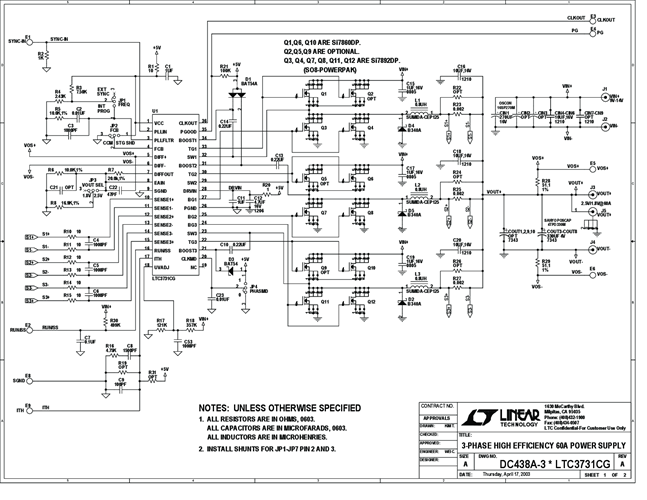

DC438A - Schematic2009/09/24PDF137K
-
DC438A - Demo Manual2009/09/24PDF407K
-
DC438A - Design File2009/09/24ZIP1M
