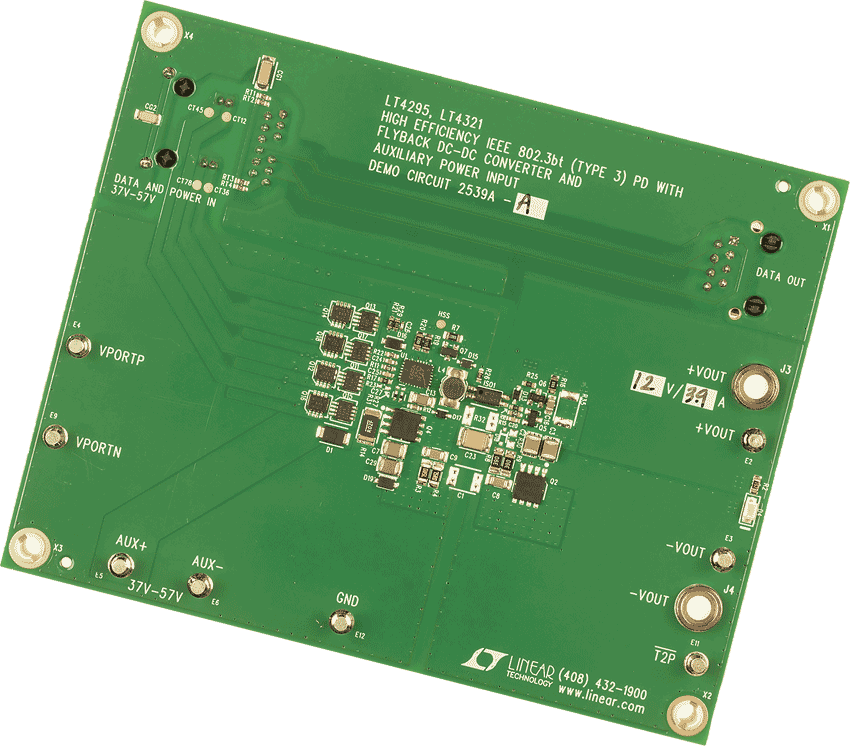

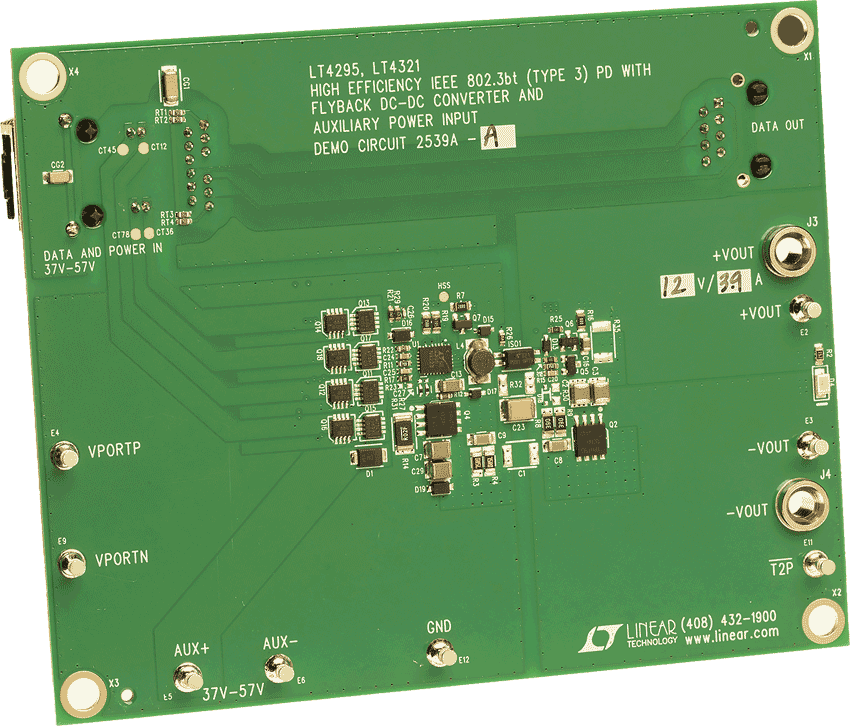

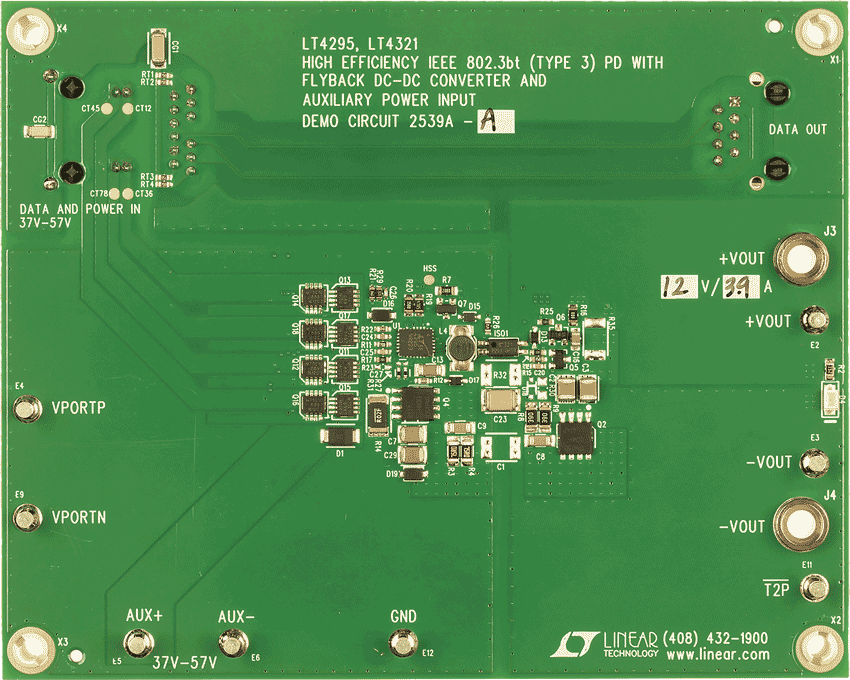

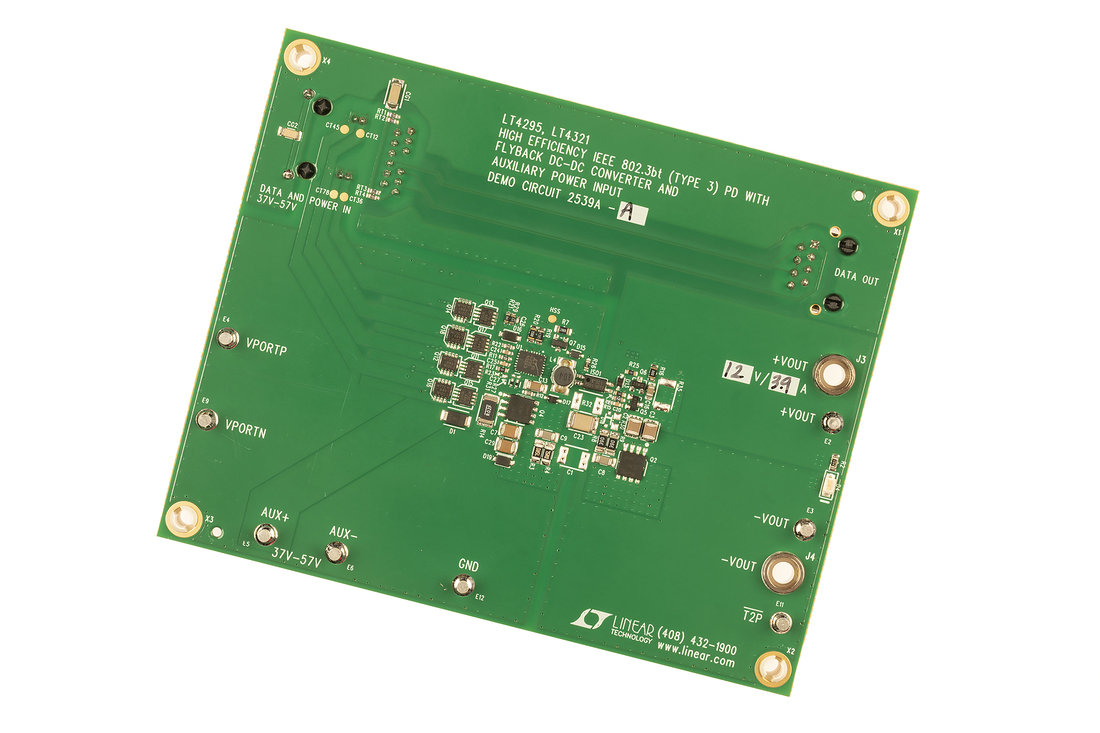

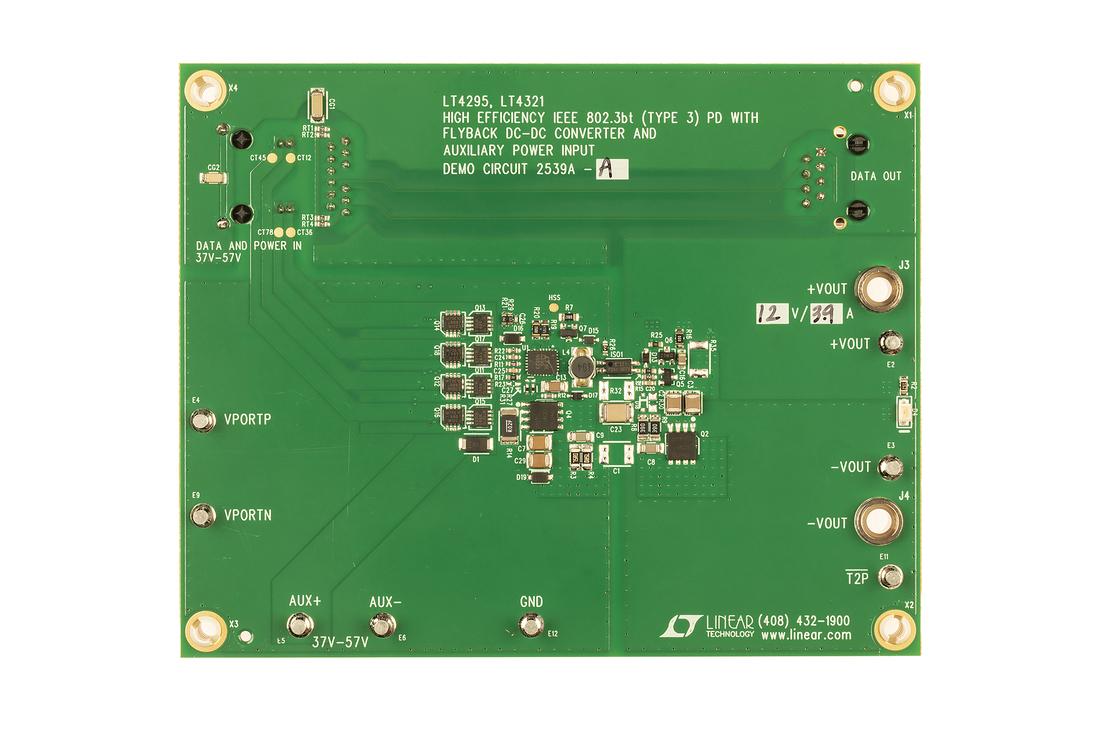

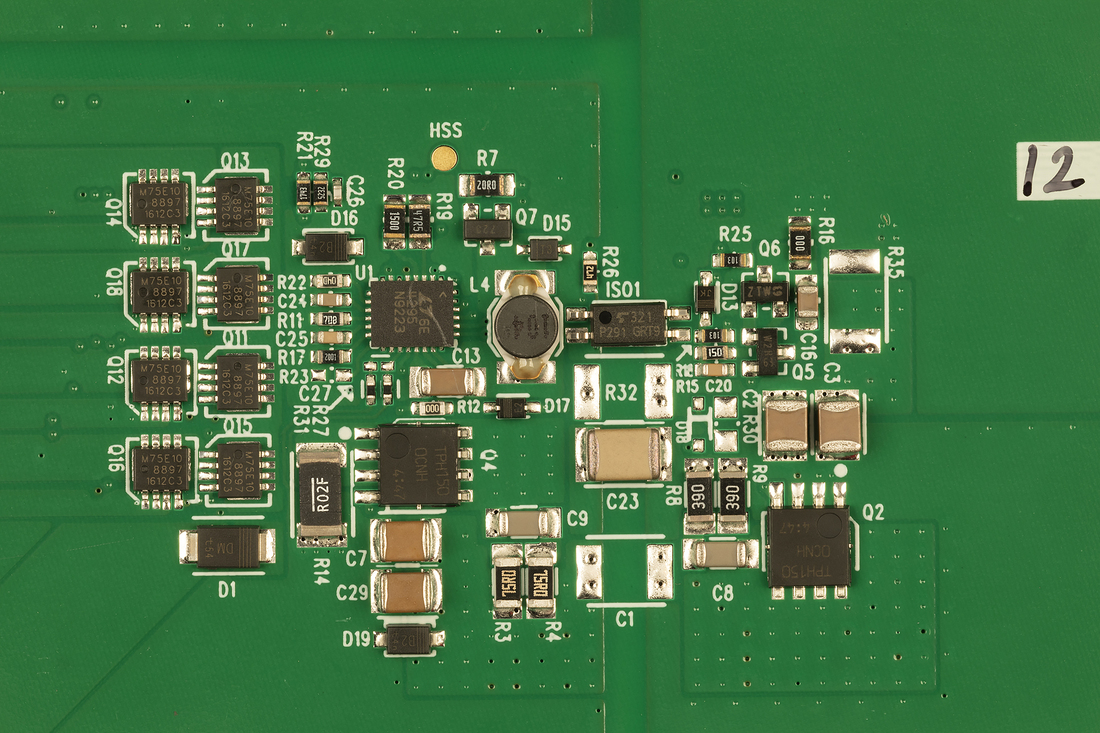

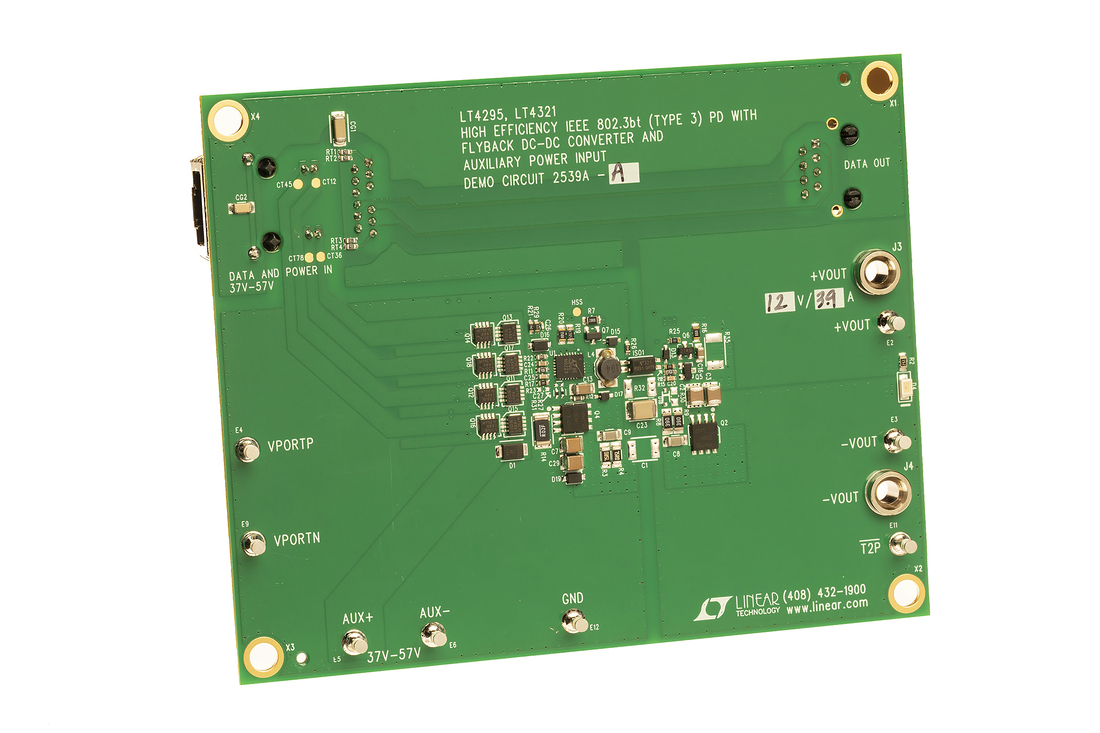

DC2539A-A
LT4295/LT4321 Demo Board | PoE++ (51W, 12V/3.9A) PD with Flyback DC/DC and Ideal Diode Bridge
トップへ
製品概要
製品概要
Demonstration circuit 2539A is an IEEE802.3bt (Draft 2.1) compliant Power over Ethernet (PoE) Powered Device (PD). It features the LT4295 PD interface and switching regulator controller and the LT4321 PoE ideal diode bridge controller.
マーケット＆テクノロジー
対象となる製品
関連資料
-

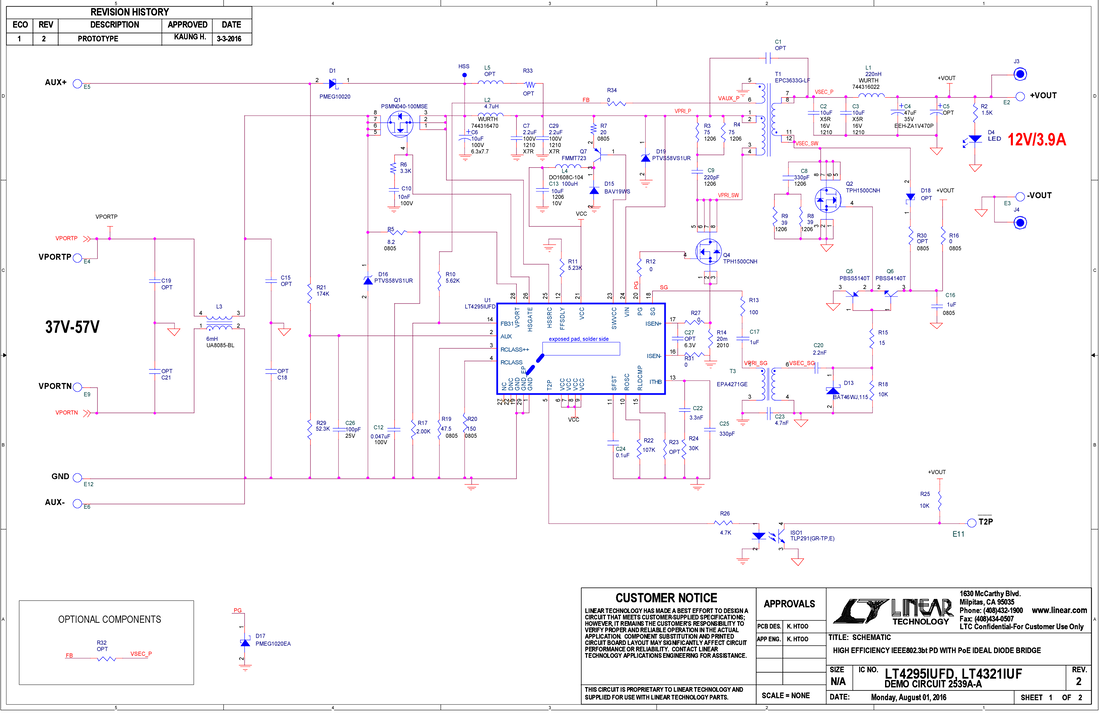

DC2539A-A - Schematic2017/01/19PDF159K
-
DC2539A-A - Demo Manual2017/05/24PDF1M
-
DC2539A-A - Design Files2017/01/19ZIP1M
