DC2512A
HSMC Adapter for DC718-Compatible Demo Boards
トップへ
製品概要
製品概要

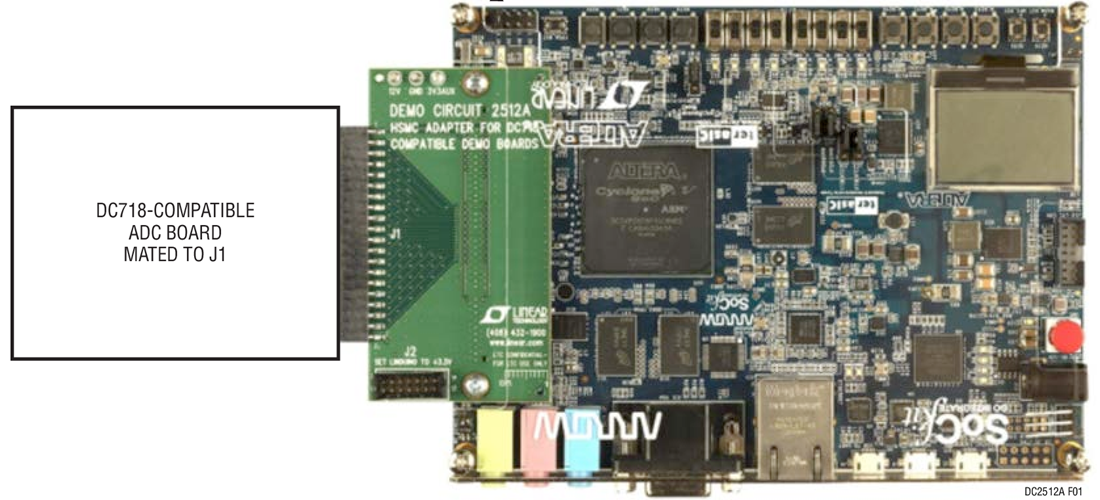

Demonstration circuit 2512A is a gasket adapter board that allows DC718-compatible data converter eval boards to interface with FPGA boards that have an HSMC connector, such as the SoCkit Cyclone 5 SoC development board from Arrow Electronics.
関連資料
-
DC2512A - Schematic2017/02/14PDF34K
-
DC2512A - Demo Manual2017/02/14PDF272K
-
DC2512A - Design Files2017/02/14ZIP1M
