DC2511A
HSMC Adapter for DC890-Compatible Demo Boards
トップへ
製品概要
製品概要

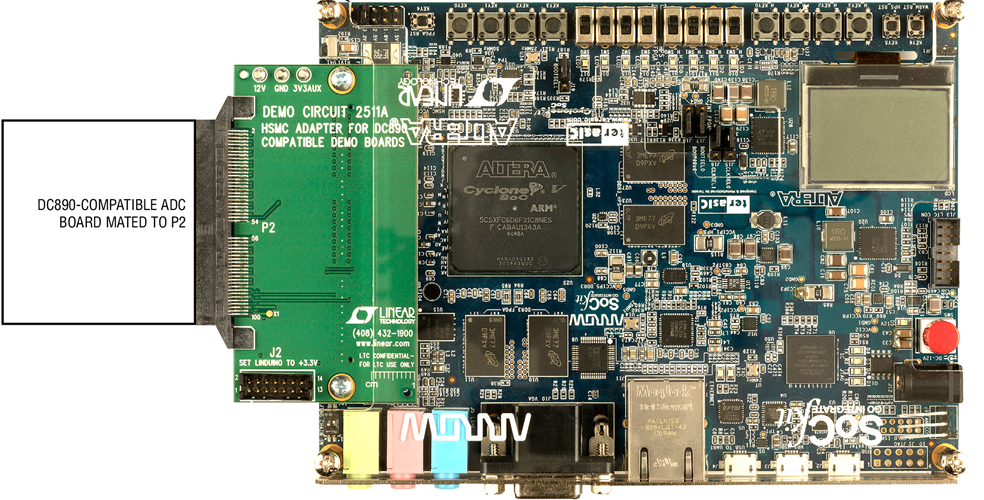

Demonstration circuit 2511A is a gasket adapter board that allows DC890-compatible data converter eval boards to interface with FPGA boards that have an HSMC connector, such as the SoCkit Cyclone 5 SoC board from Arrow Electronics
関連資料
-
DC2511A - Schematic2017/02/14PDF36K
-
DC2511A - Demo Manual2017/02/14PDF1M
-
DC2511A - Design Files2017/02/14ZIP1M
