DC2465A
LT4320IDD-1 3-Phase Ideal Diode Bridge Rectifier [9VAC to 48VAC L-L, 25A]
トップへ
製品概要
製品概要

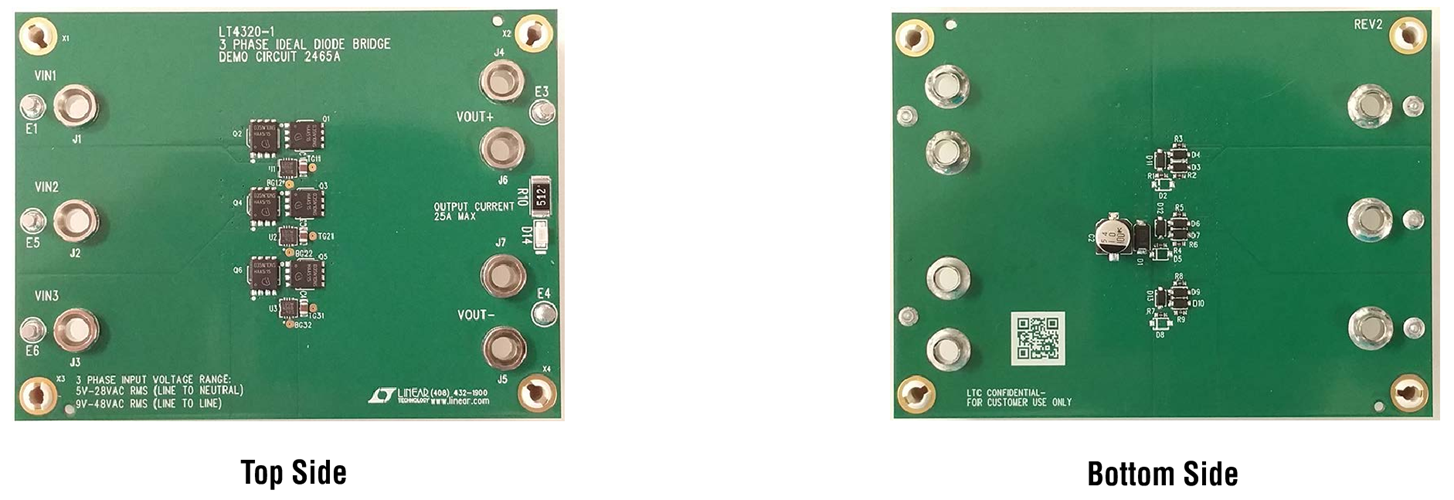

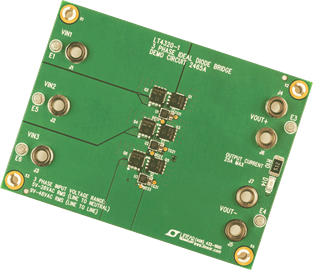

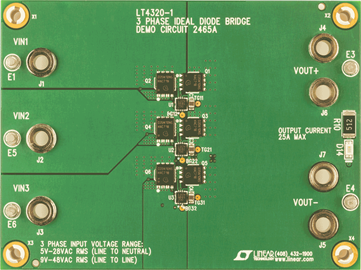

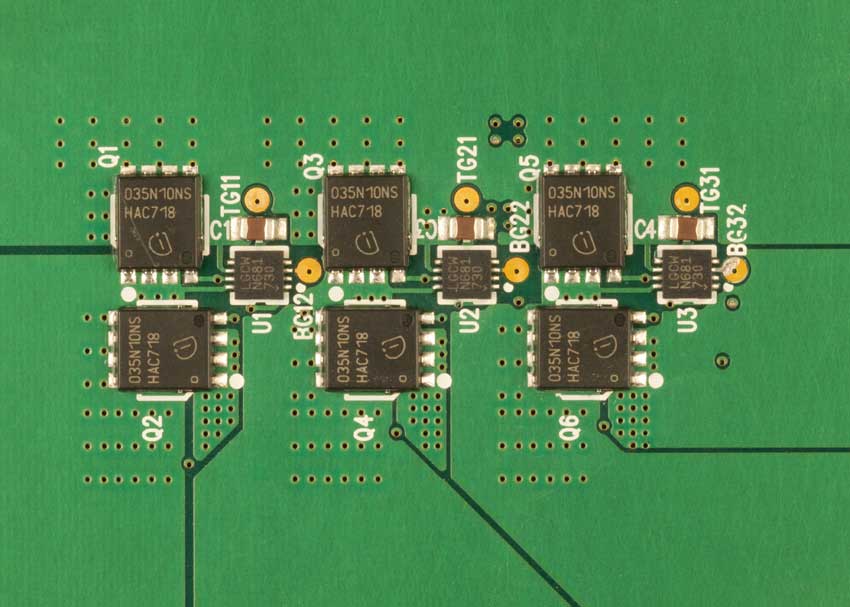

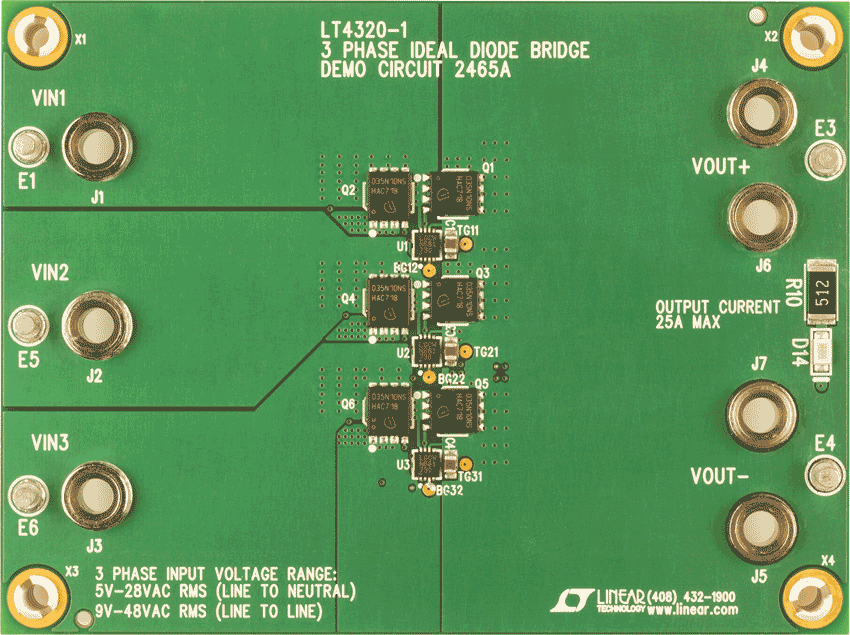

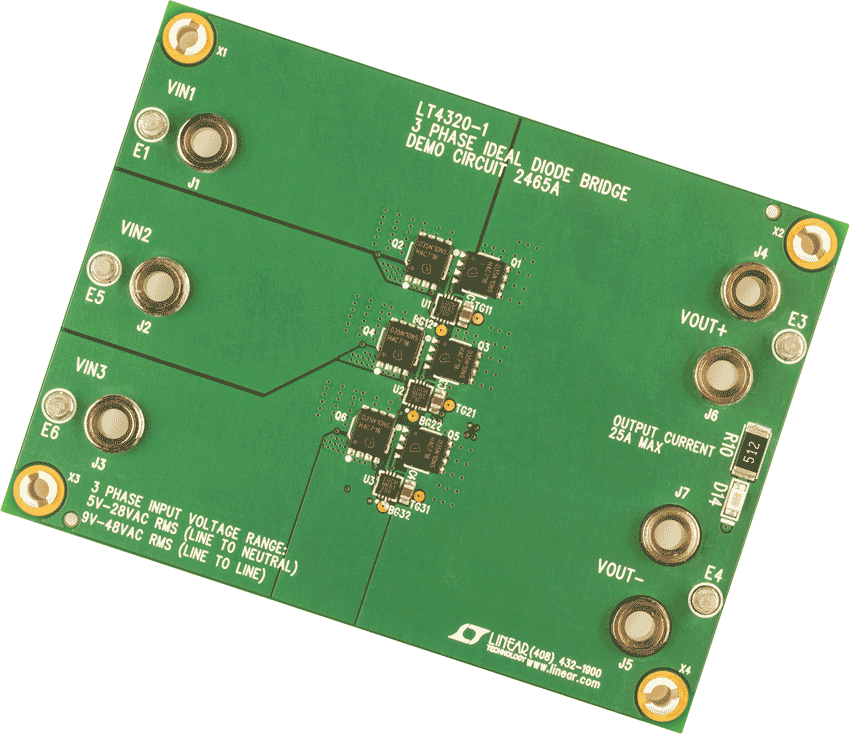

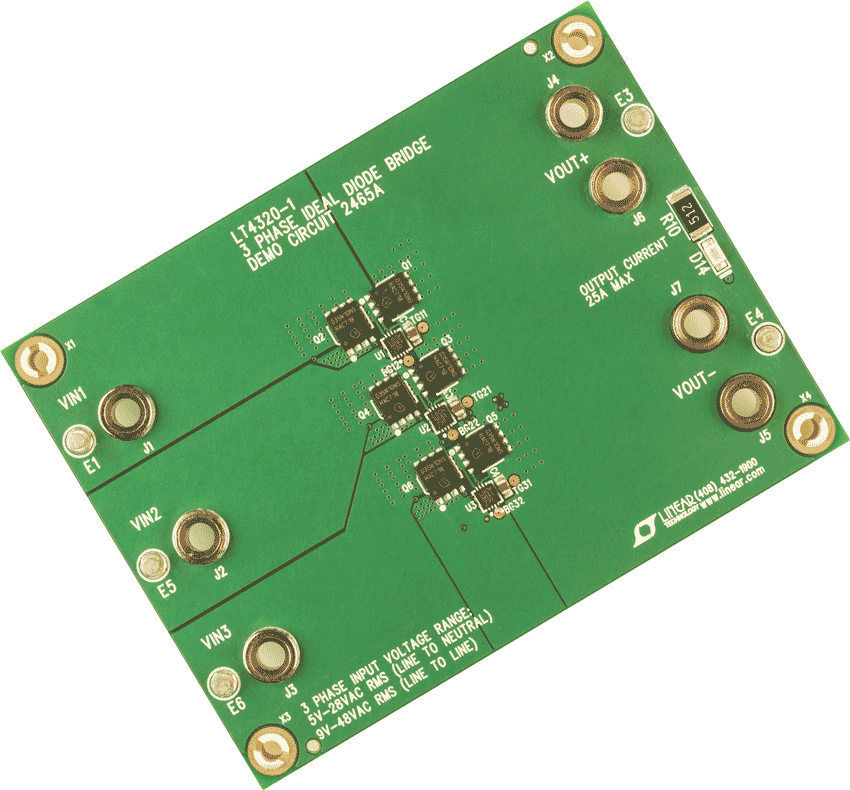

Demonstration circuit 2465A is a 3-phase ideal diode bridge using three LT4320 controllers and six N-channel FETs. This demo board provides highly efficient 3-phase rectification with an input voltage range from 5VAC to 28VAC RMS (line to neutral) and maximum load current of 25A.
対象となる製品
関連資料
-

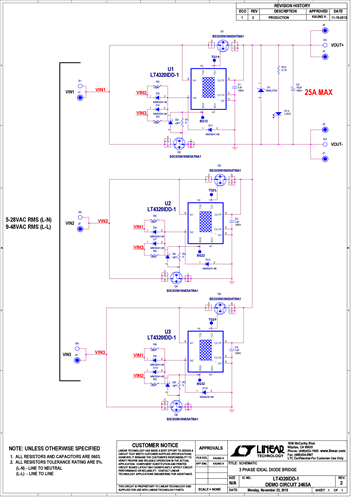

DC2465A - Schematic2016/04/08PDF57K
-
DC2465A - Demo Manual2016/04/08PDF347K
-
DC2465A - Design Files2016/04/08ZIP893K
