DC2393A
LT8304ES8E Isolated Demo Board | No-Opto Flyback, 18V ≤ VIN ≤ 72V; VOUT = 5V @ 2A to 4.2A
トップへ
製品概要
製品概要

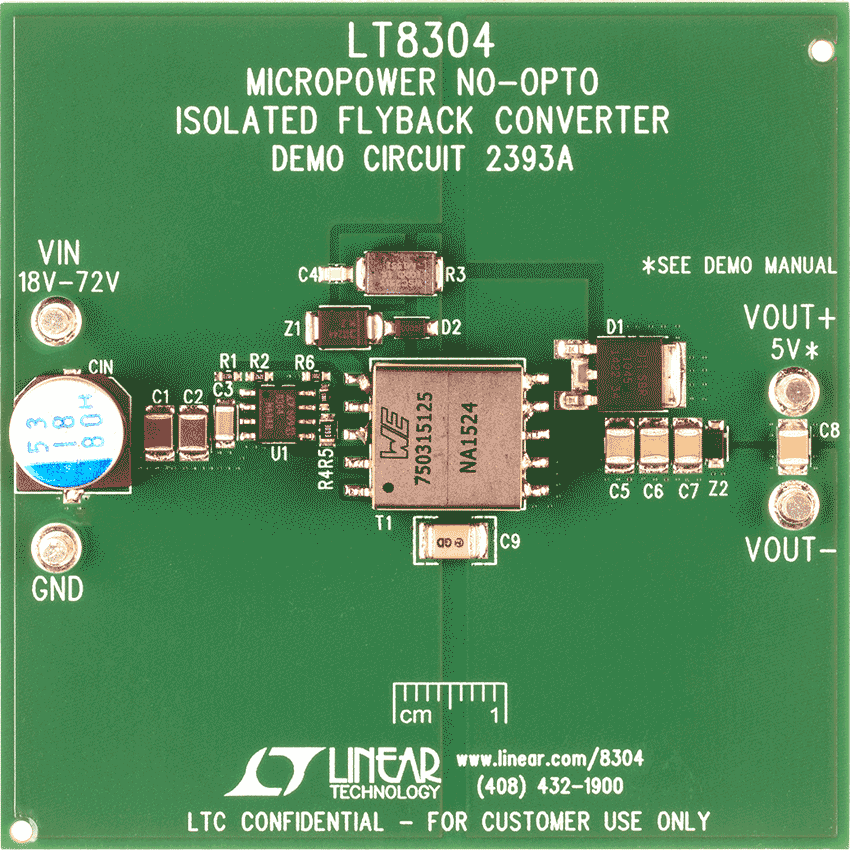

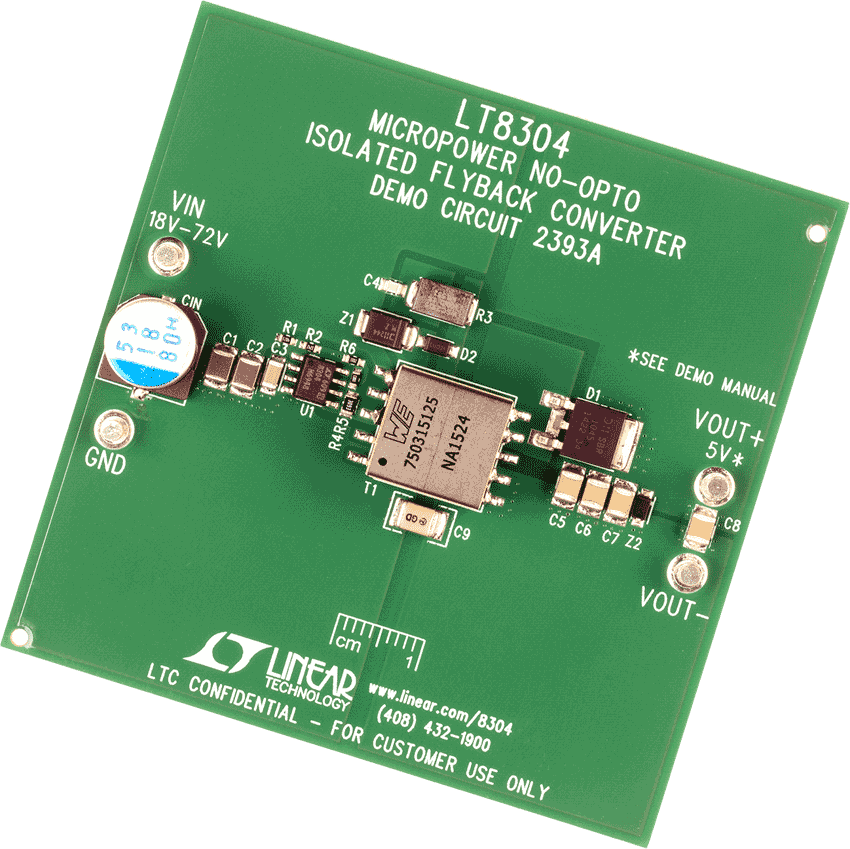

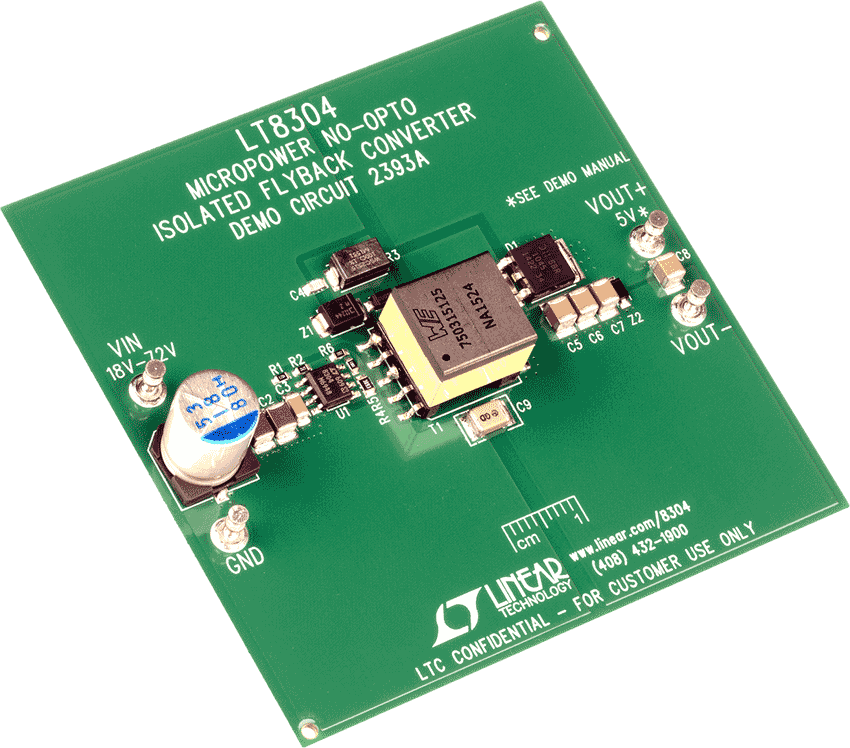

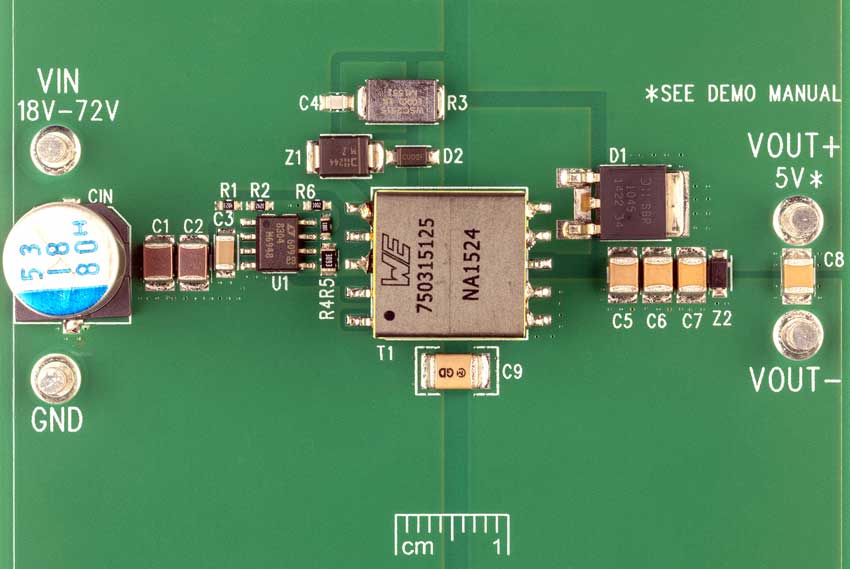

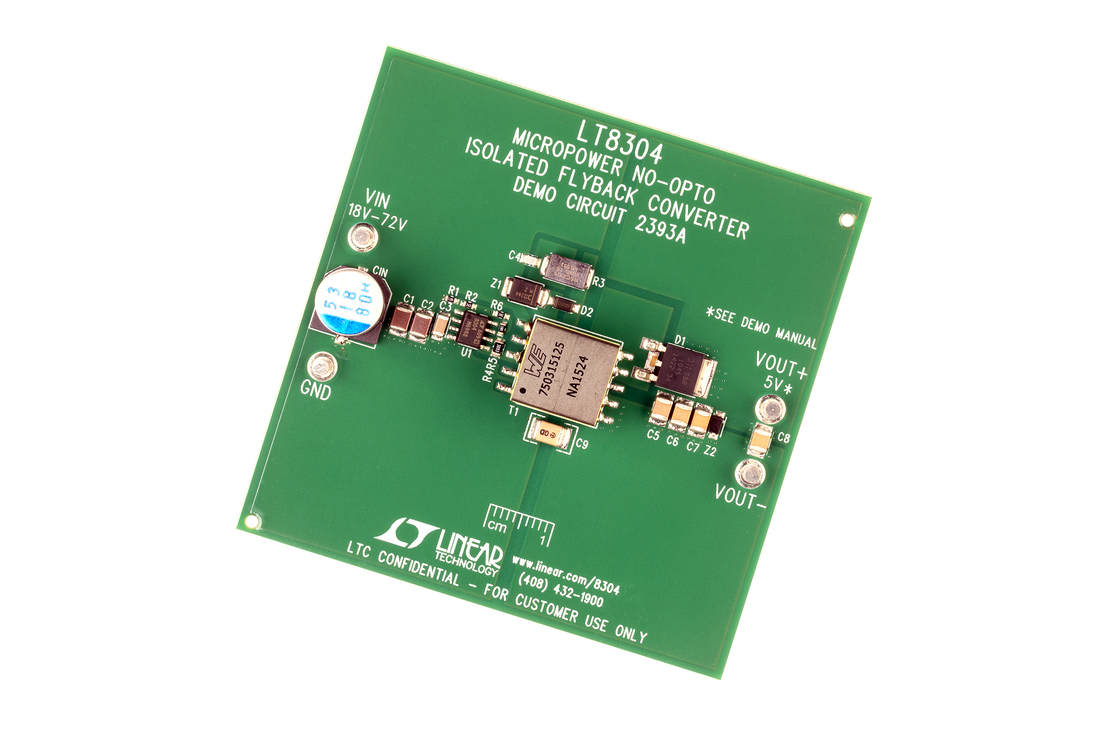

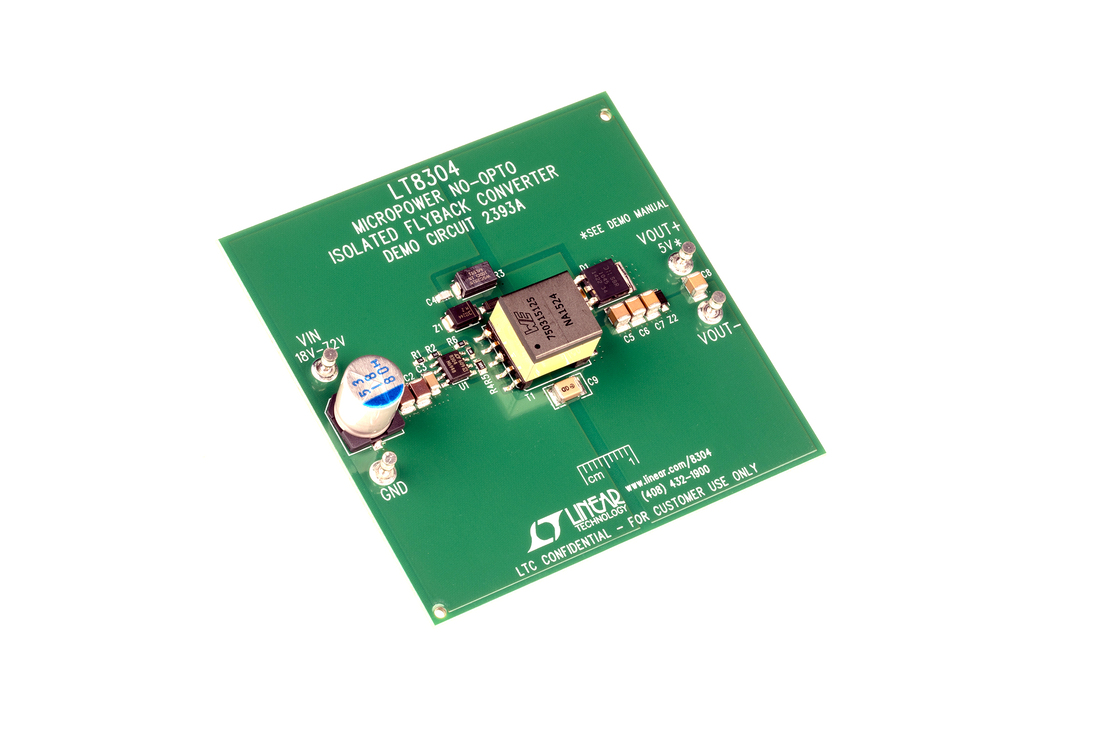

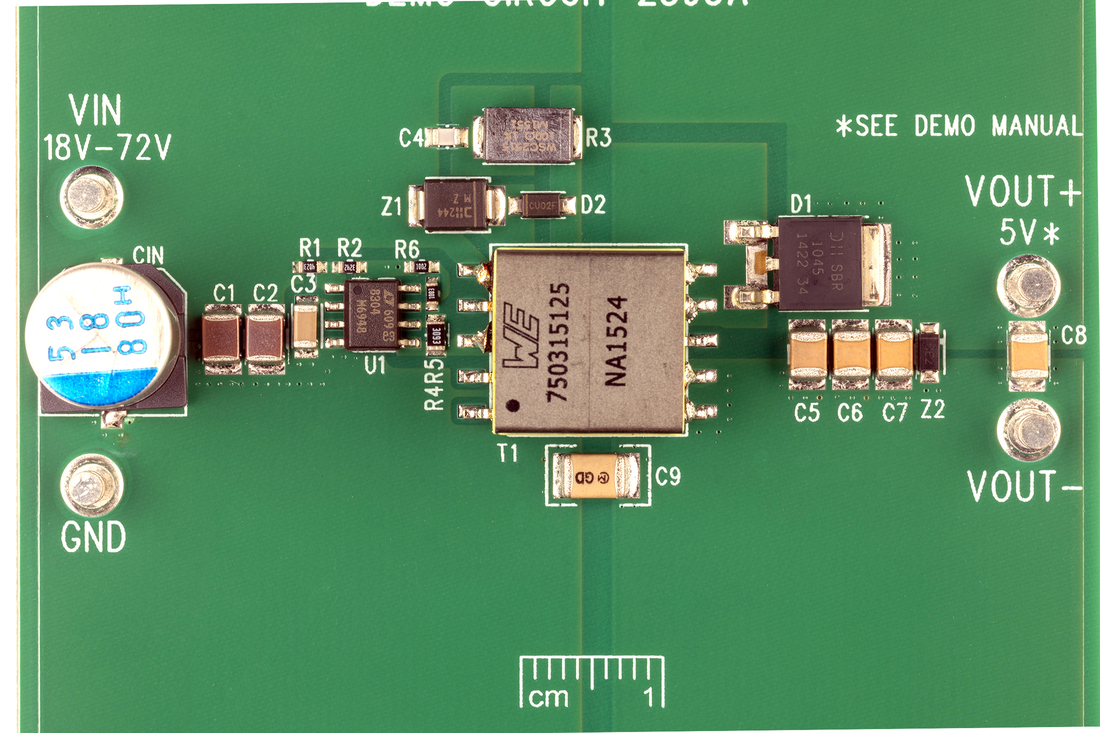

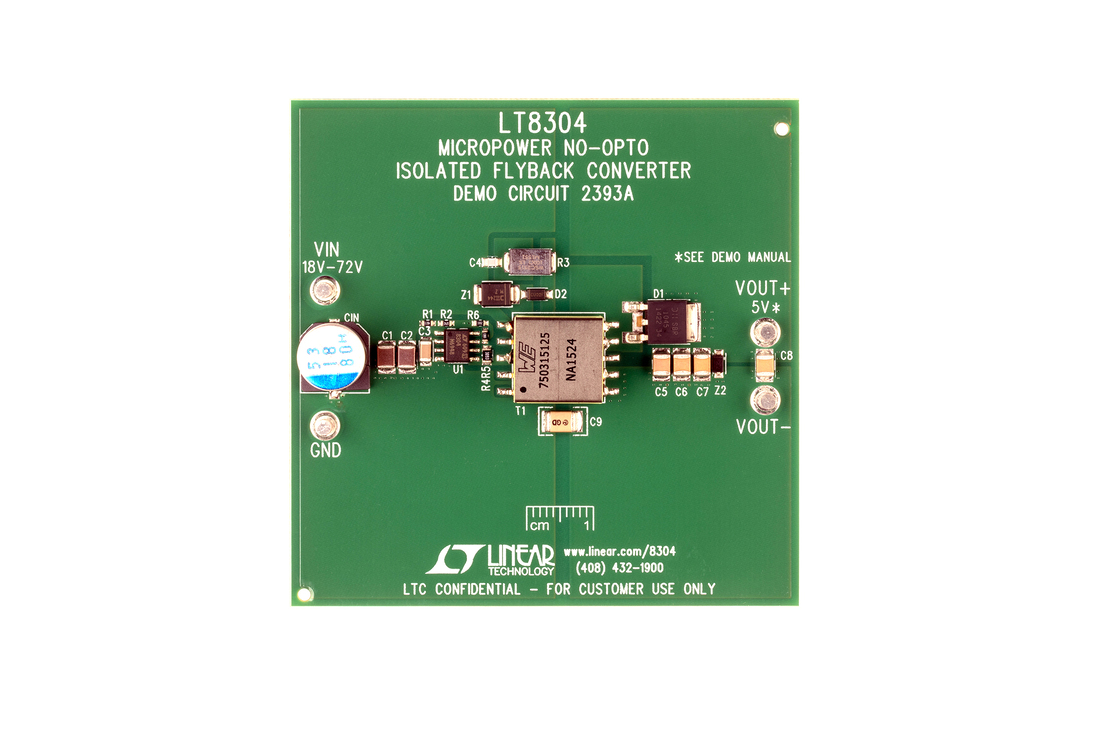

Demonstration circuit 2393A is a micropower no-opto isolated flyback converter featuring the LT8304. This demo circuit outputs 5.0V, and maintains tight regulation with a load current from 20mA up to 4.2A and over an input voltage from 18V to 72V. The output current capability increases with the input voltage, as shown in the Performance Summary table.
マーケット＆テクノロジー
対象となる製品
関連資料
-

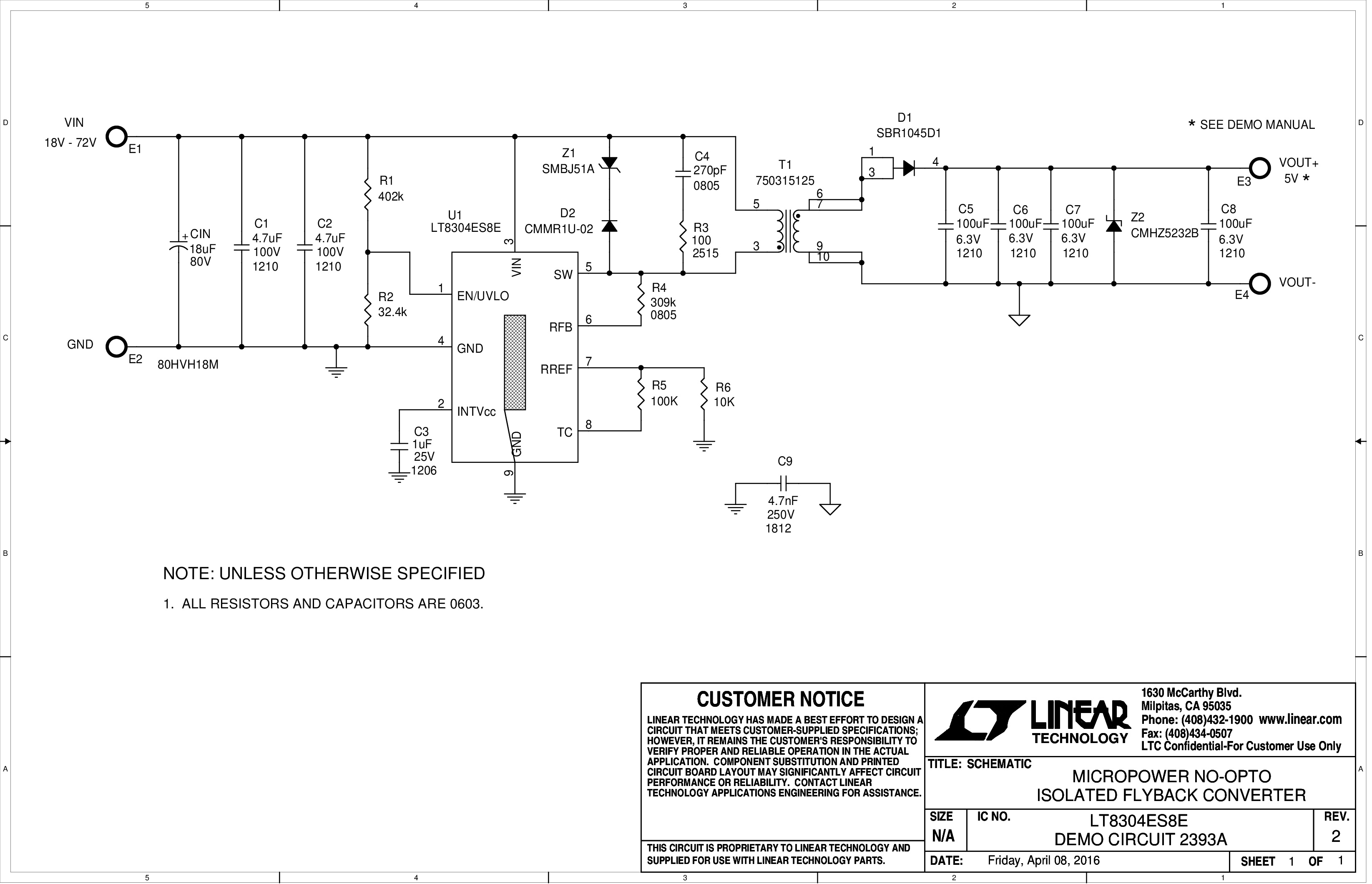

DC2393A - Schematic2016/05/25PDF29K
-
DC2393A - Demo Manual2016/05/25PDF338K
-
DC2393A - Design Files2016/05/25ZIP630K
