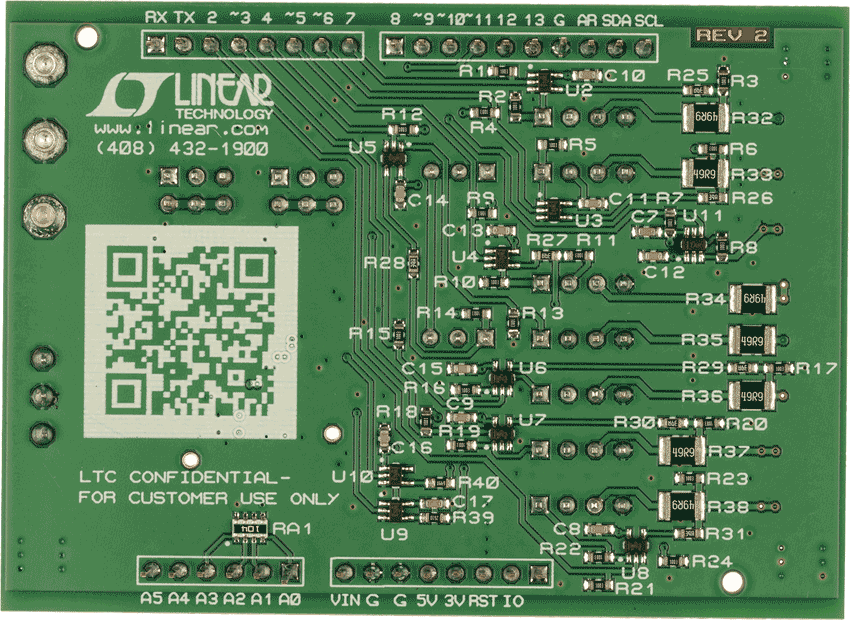

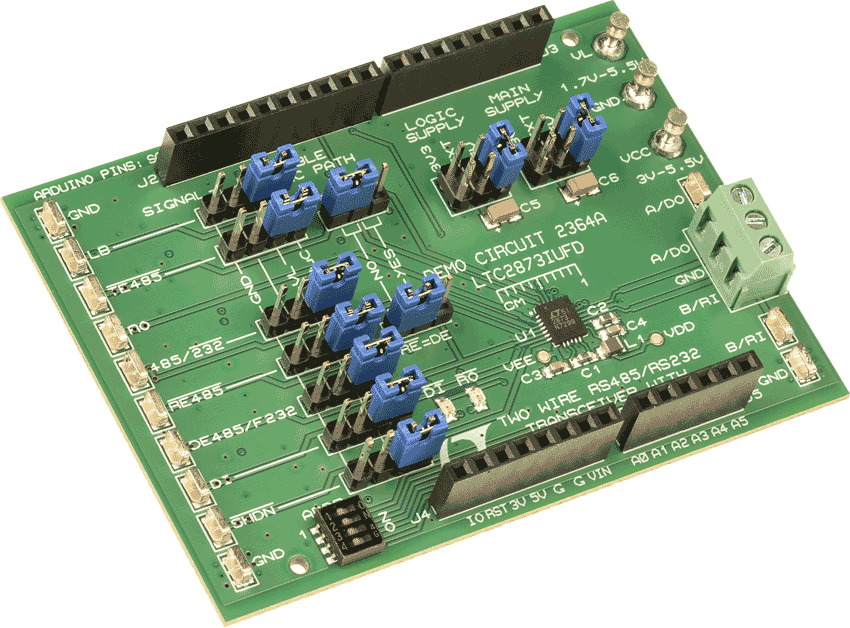

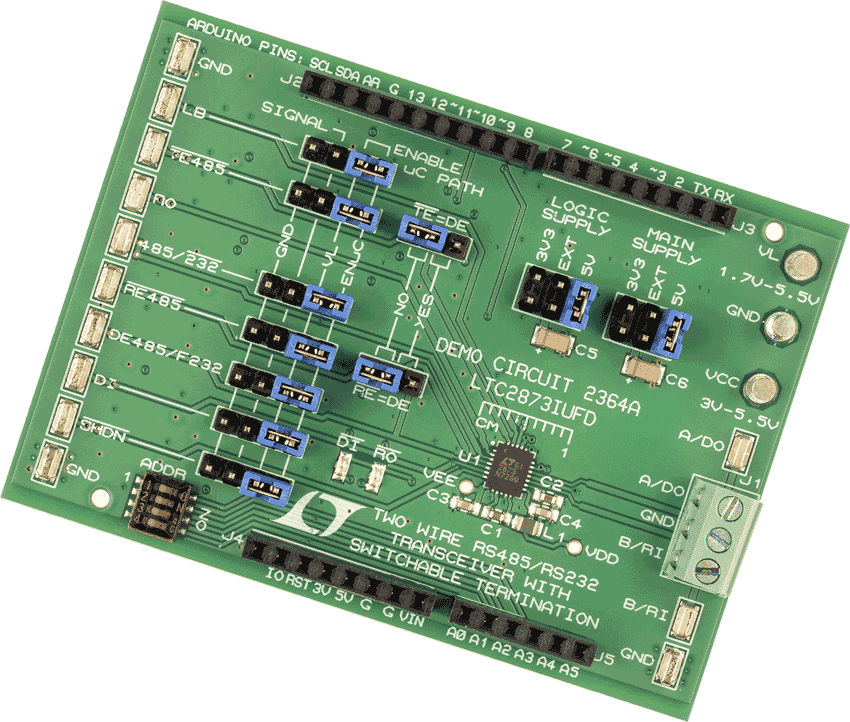

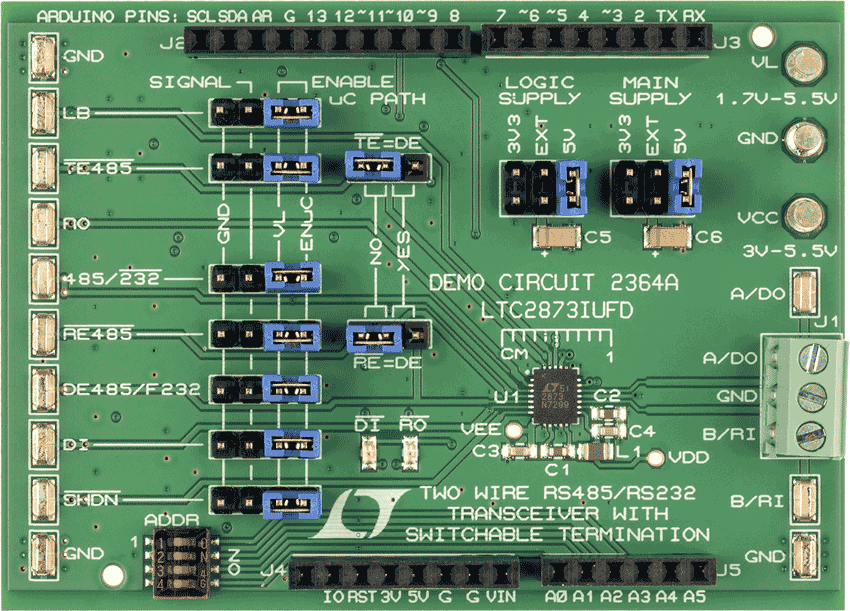

DC2364A
LTC2873 Demo Board | Single Bus RS232/RS485 Multiprotocol Transceiver with Integrated Termination (Shared I/O) (DC2026 Optional)
トップへ
製品概要
製品概要

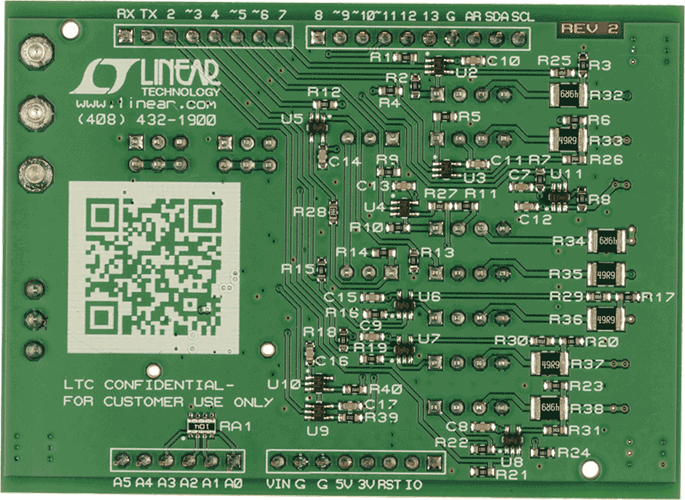

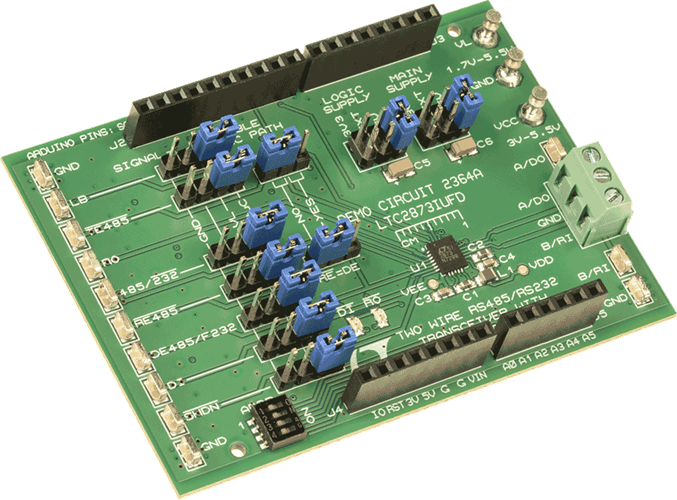

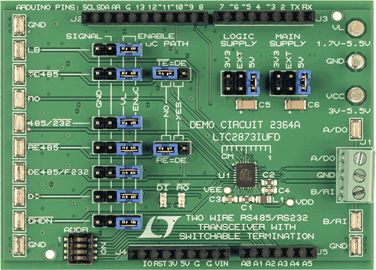

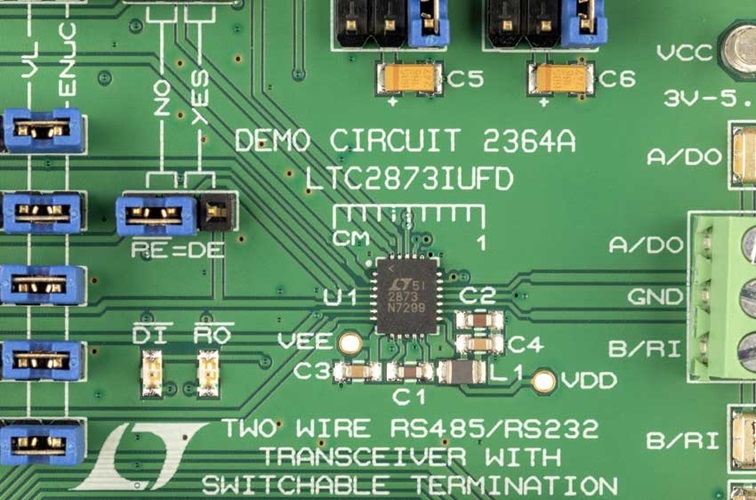

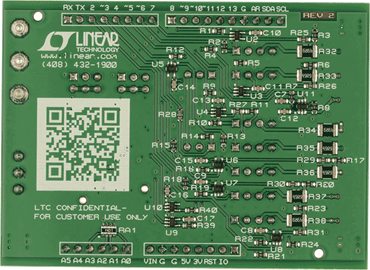

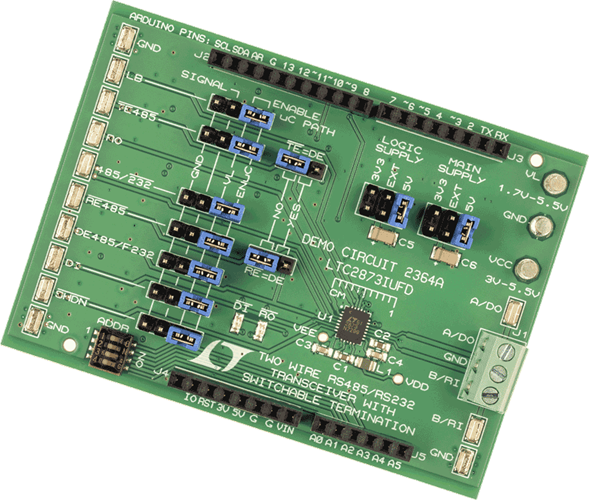

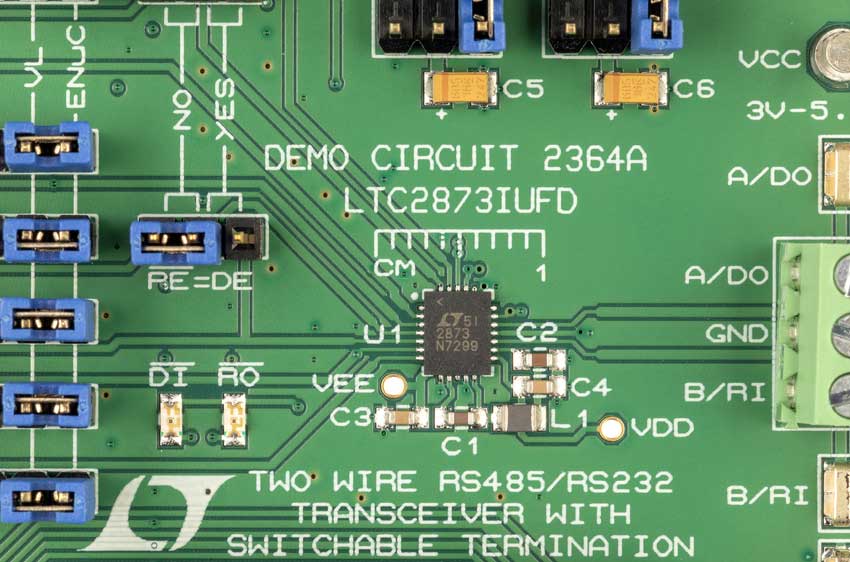

Demonstration circuit 2364A showcases the LTC2873 RS232/RS485 multiprotocol transceiver with integrated termination. The DC2364A operates as a stand-alone evaluation platform or can be used as a shield with a Linduino® or Arduino microcontroller board for quick and versatile evaluation of the LTC2873.
DC2026 is optional (not required).
関連資料
-

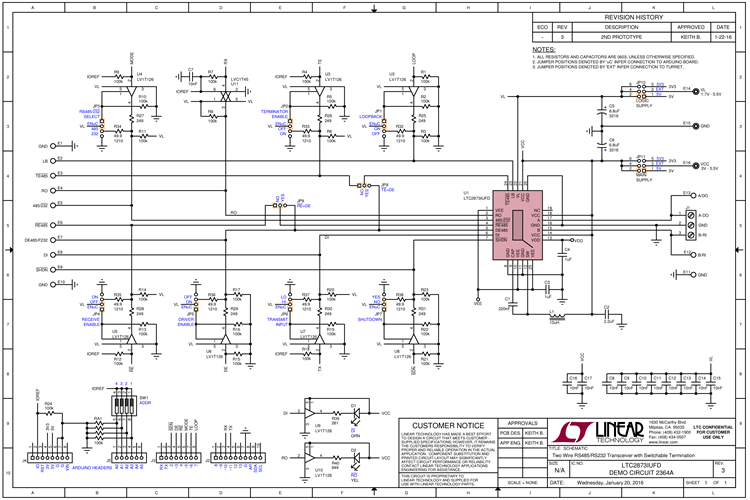

DC2364A - Schematic2016/02/22PDF34K
-
DC2364A - Demo Manual2016/02/22PDF178K
-
DC2364A - Design Files2016/02/22ZIP1M
