DC2302A
LTC4123EDC Demo Board | A Kit to Charge a NiMH Button Cell Battery Up to 25mA at 1.5V from a 5V Wireless Transmitter
トップへ
製品概要
製品概要

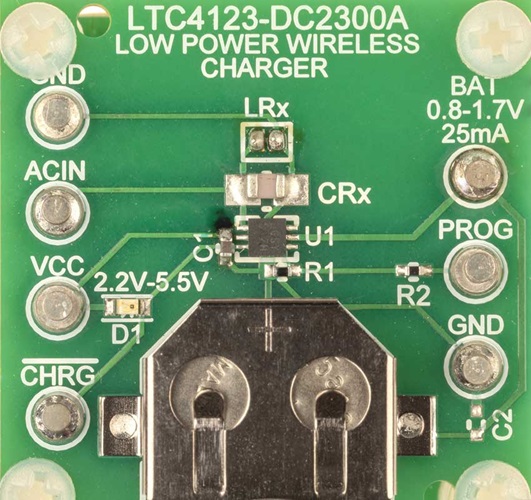

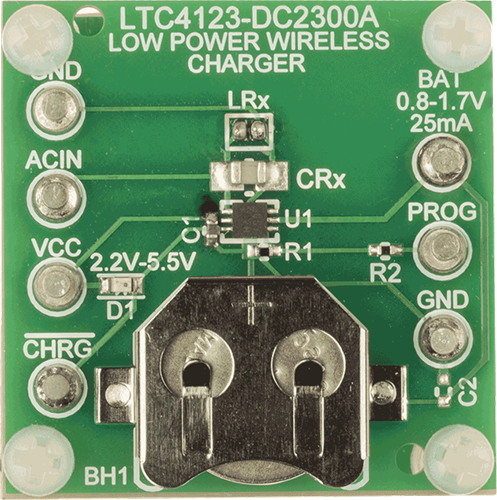

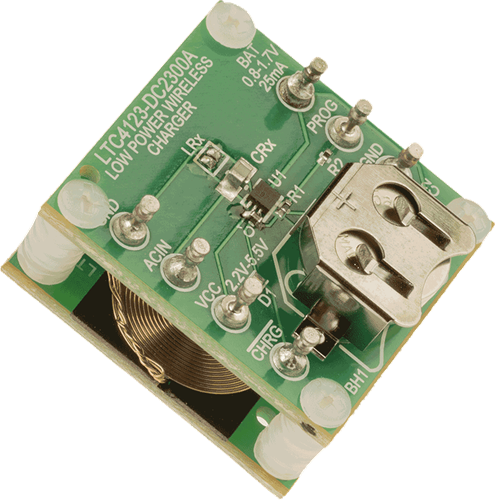

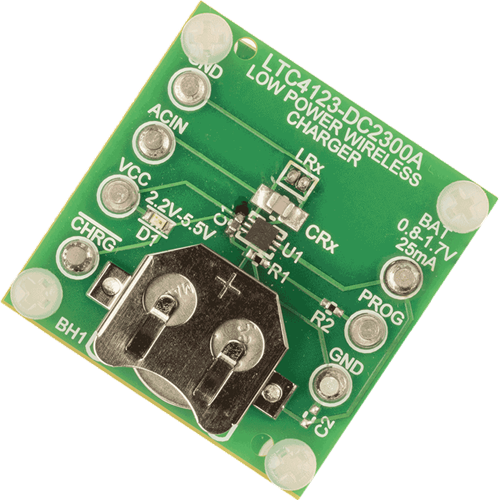

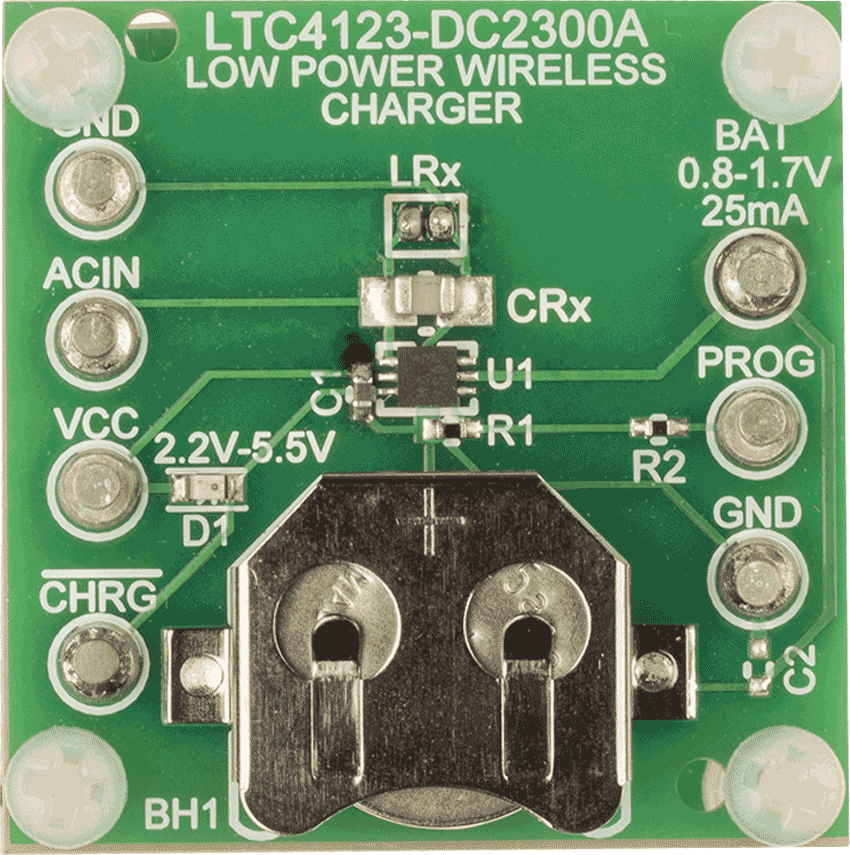

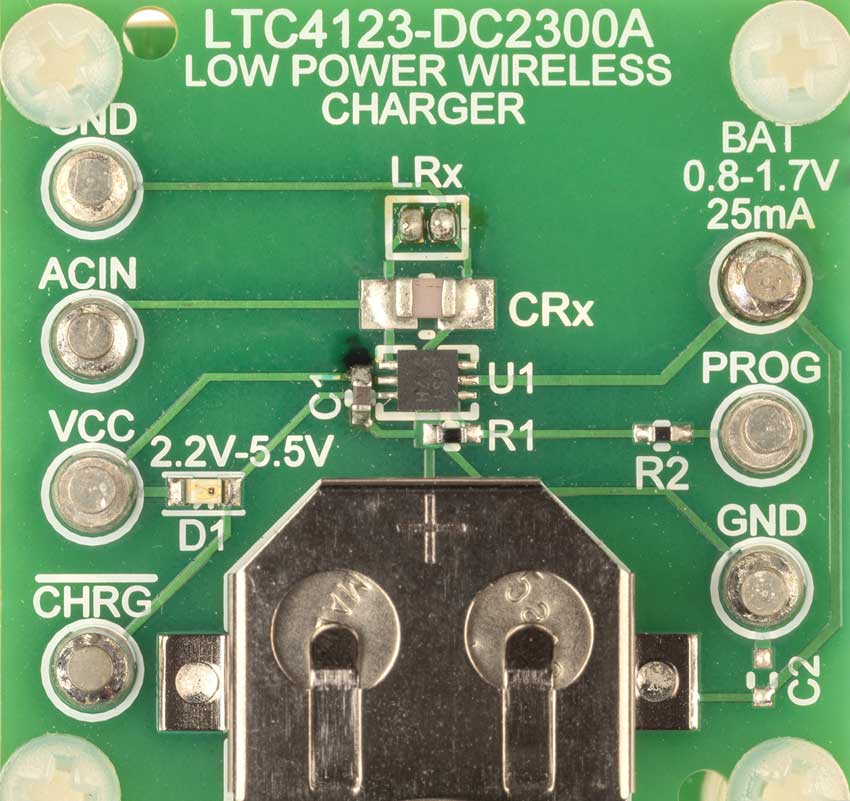

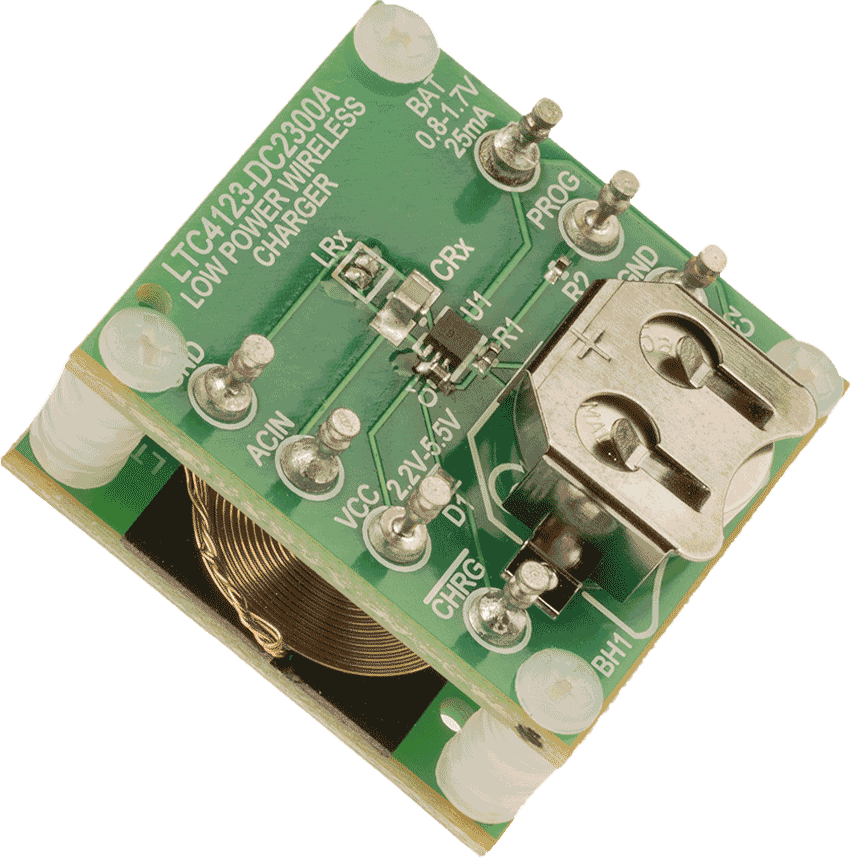

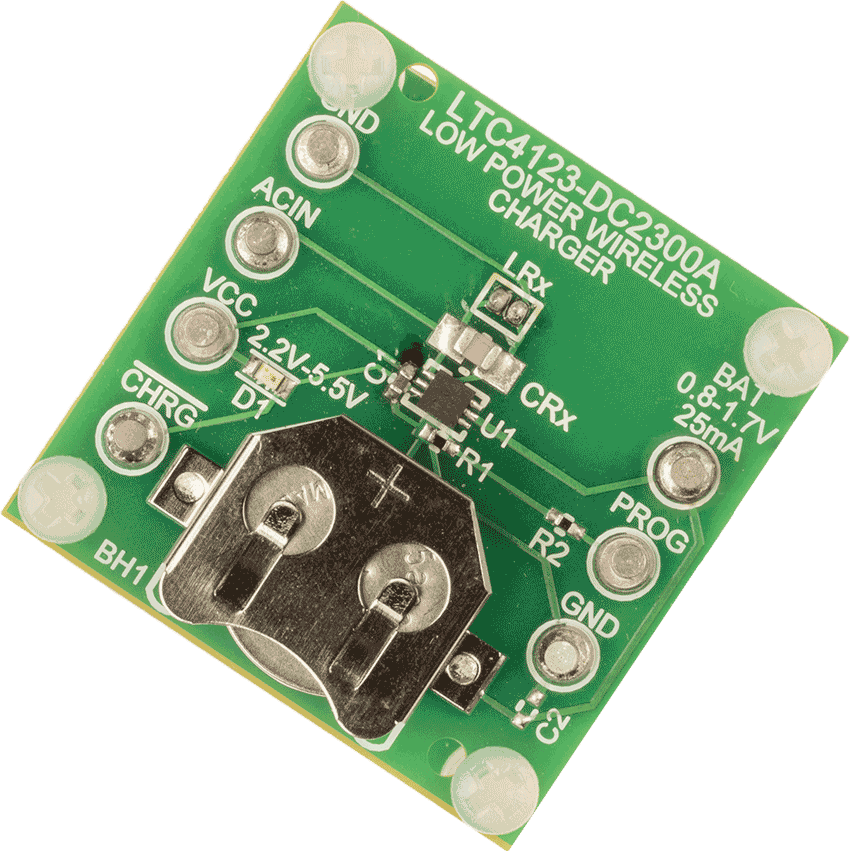

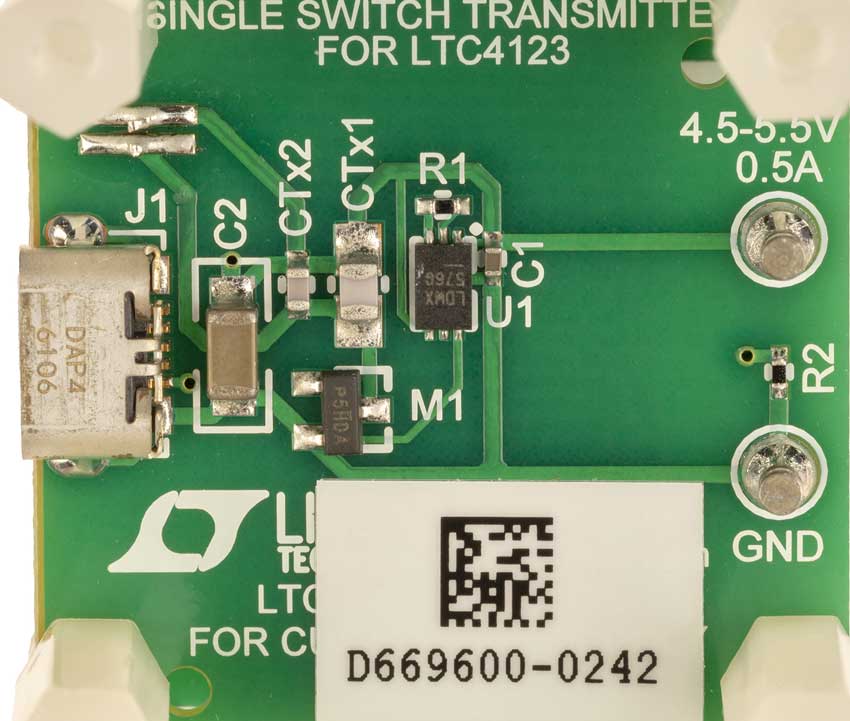

Demonstration Circuit DC2302A is a kit of the DC2300A demonstration board, featuring the LTC4123EDC, and the DC2301A Single Switch Transmitter demonstration board. The DC2300A can charge a single NiMH battery at up to 25mA, with an air gap of 0.8mm to 4.0mm. The DC2300A detects Zn-Air primary cells and will not charge them.
関連資料
-

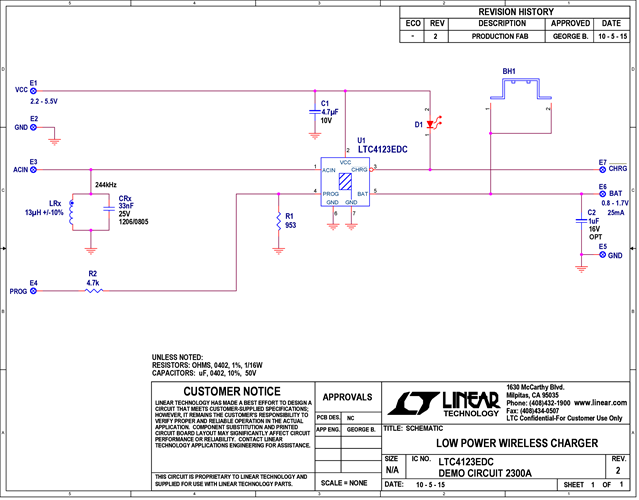

DC2300A - Schematic2016/02/25PDF79K
-

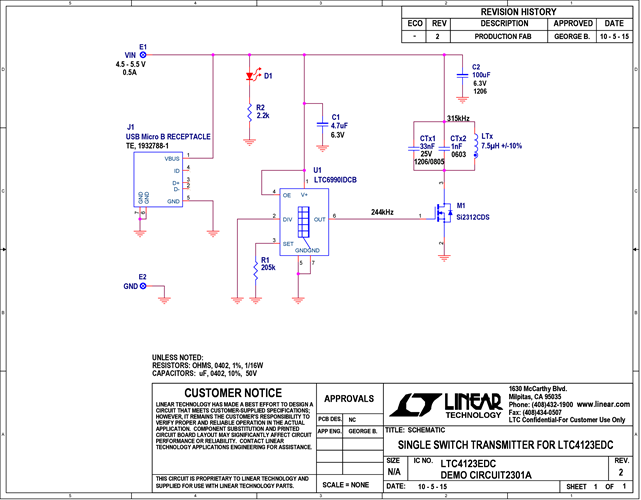

DC2301A - Schematic2016/02/24PDF80K
-
DC2302A - Demo Manual2016/03/16PDF840K
-
DC2301A - Design Files2016/02/25ZIP2M
-
DC2300A - Design Files2016/02/25ZIP2M
