DC2253A
LTC3789EGN Demo Board | Synchronous Buck-Boost, 6V ≤ VIN ≤ 36V; VOUT = 12V @ 25A
トップへ
製品概要
製品概要

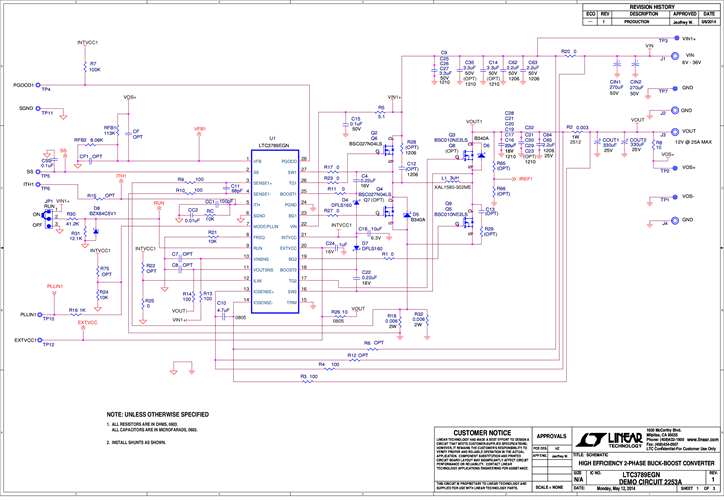

Demonstration circuit 2253A is a high power, high efficiency, 2-phase interleaved synchronous buck-boost converter with a 6V to 36V input range. It can supply a 25A maximum load current with a 12V output. This demo board features 2x LTC3789EGN controllers.
対象となる製品
関連資料
-
DC2253A - Schematic2014/10/20PDF90K
-
DC2253A - Demo Manual2014/10/20PDF716K
-
DC2253A - Design Files2014/10/20ZIP3M
