DC2227A
LT3669-2 Demo Board | I/O Link with 18V to 36V Input to 4V at 300mA and 3.3V at 150mA
トップへ
製品概要
製品概要
Demonstration circuit 2227A is a complete IO-Link® device built using the LT3669-2 to implement an IO-Link v1.1 physical interface (PHY). The IO-Link stack protocol runs on an Atmel ATmega microcontroller which connects to LT3669-2’s logic IO-signals to communicate with an IO-Link master via the CQ1 transceiver.
対象となる製品
関連資料
-
IO-Link Device Evaluation Board LT36692014/11/07PDF178K
-

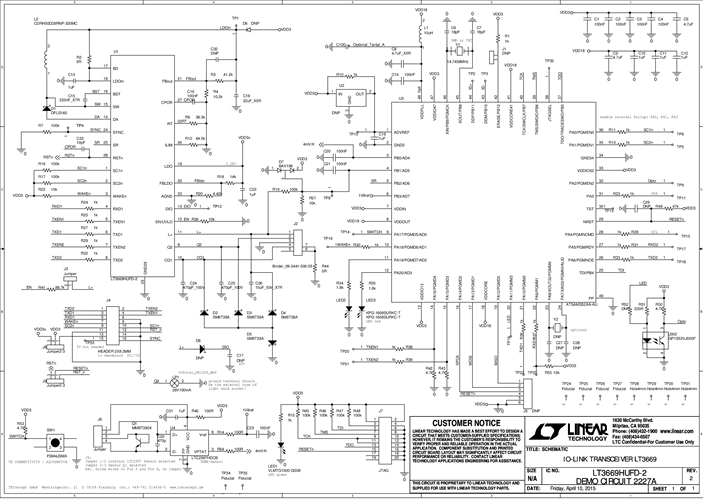

DC2227A - Schematic2015/05/04PDF51K
-
DC2227A - Demo Manual2015/05/04PDF1M
-
DC2227A - Design Files2015/05/04ZIP1M
