DC2193A
LT6118 Demo Board | High Side Current Sense Amplifier with Reference and Comparator with POR Capability
トップへ
製品概要
製品概要

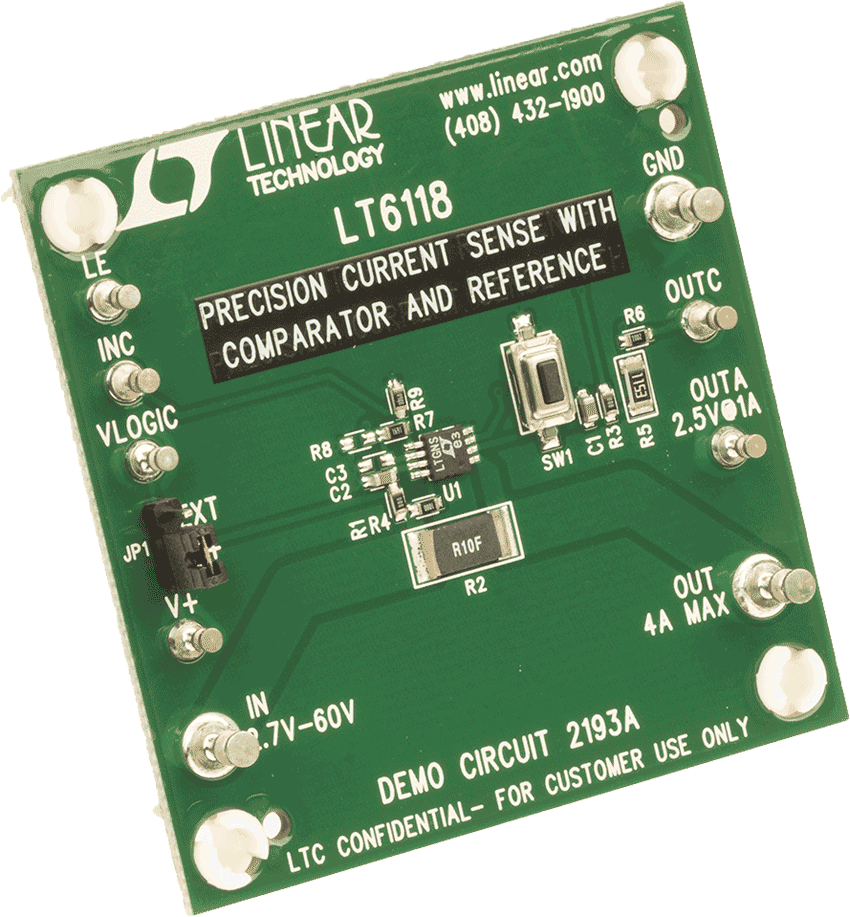

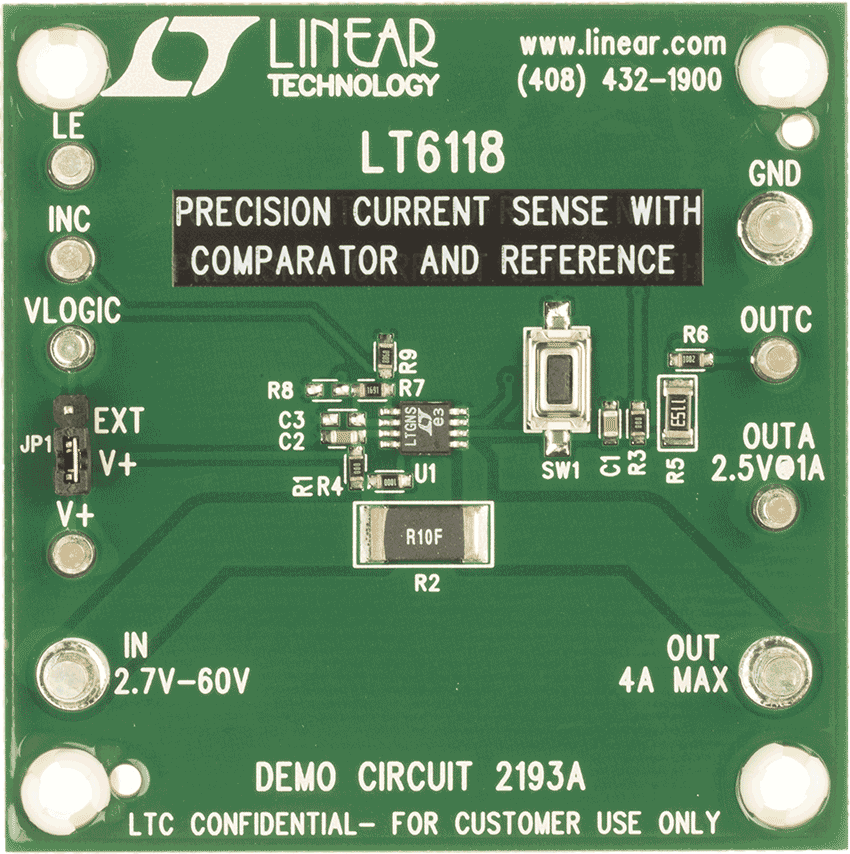

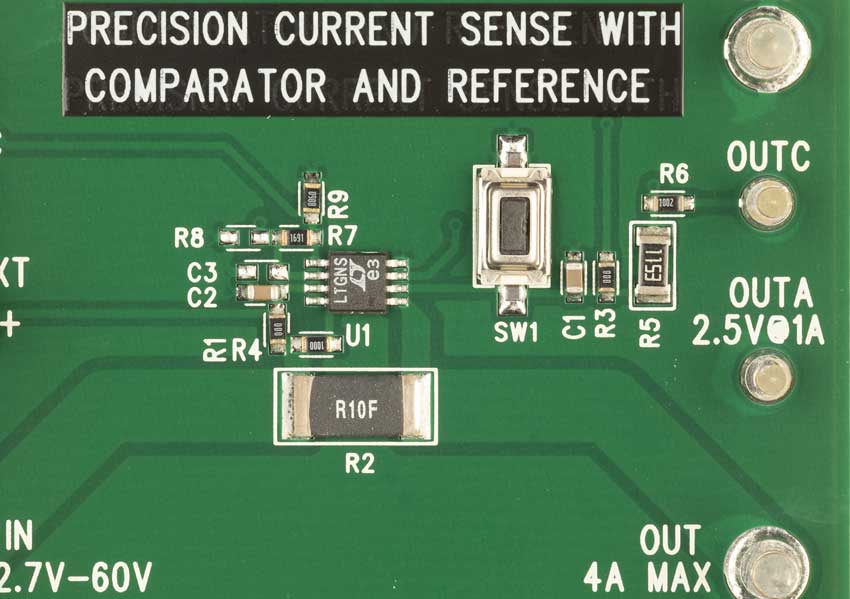

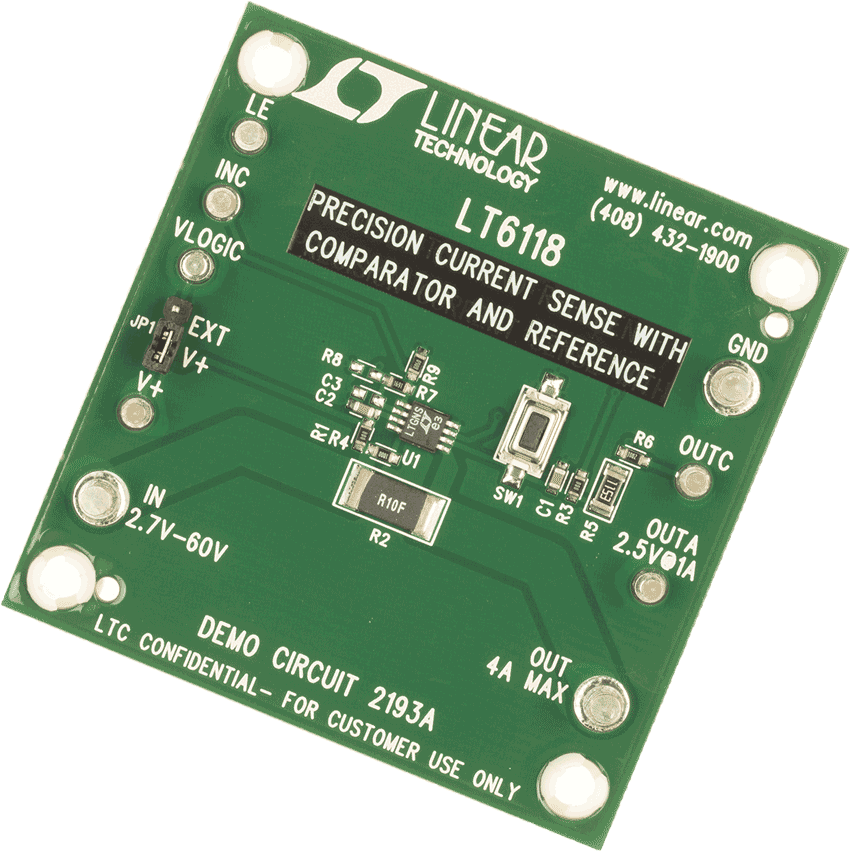

Demonstration circuit 2193A features the LT6118, a high side current sense amplifier with a comparator and a 400mV reference.
The demo board circuit amplifies the voltage across an onboard current sense resistor, to provide a precision unipolar voltage output that is proportional to the sensed current. The board has one on-board latching comparator and an integrated 400mV reference that sets the threshold for the comparator.
関連資料
-

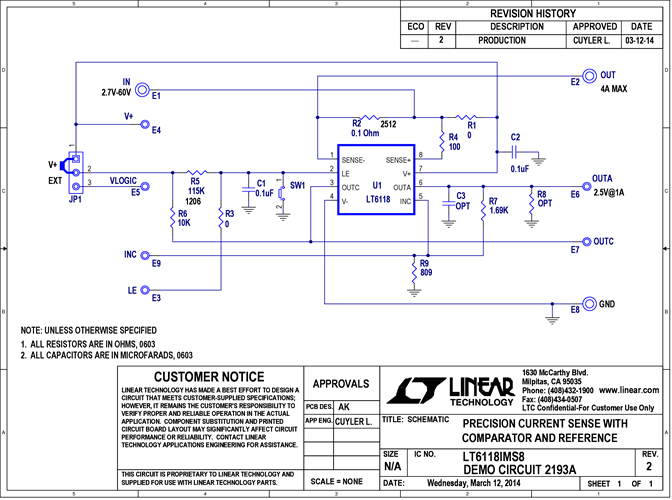

DC2193A - Schematic2014/12/08PDF43K
-
DC2193A - Demo Manual2014/12/08PDF213K
-
DC2193A - Design Files2014/12/08ZIP864K
