DC2172A
LTC7138EMSE Demo Board | HV µPower Buck, 4V ≤ VIN ≤ 140V, VOUT = 5V/3.3V/1.8V/Adj @ Up to 400mA
トップへ
製品概要
製品概要

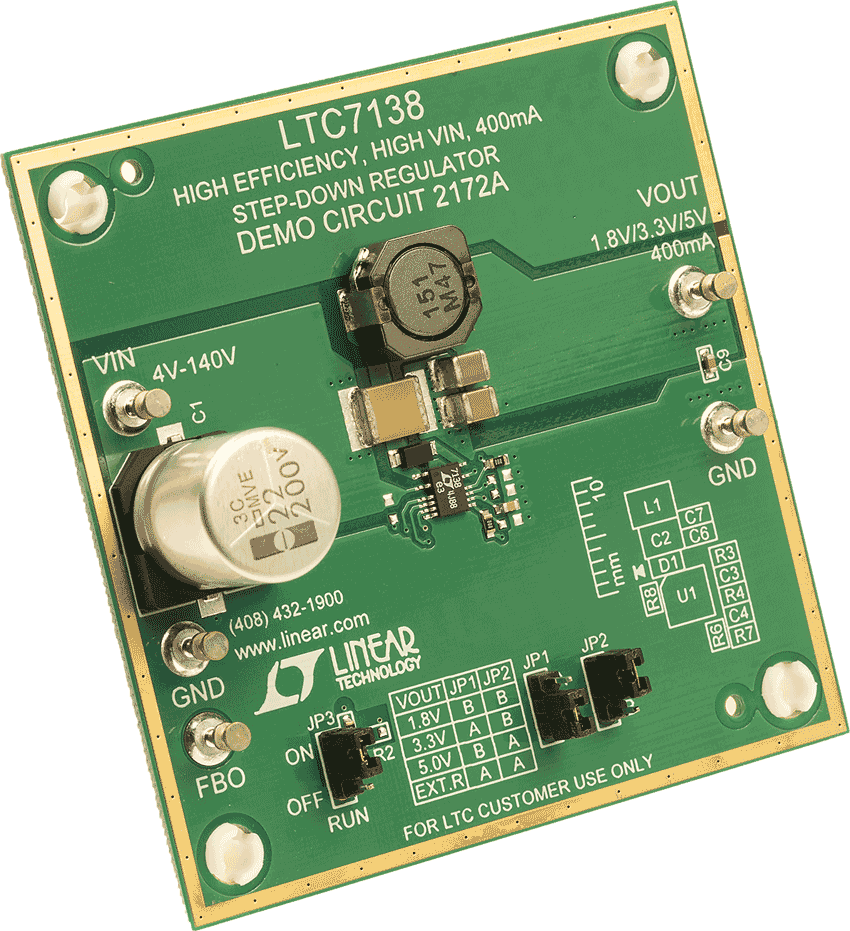

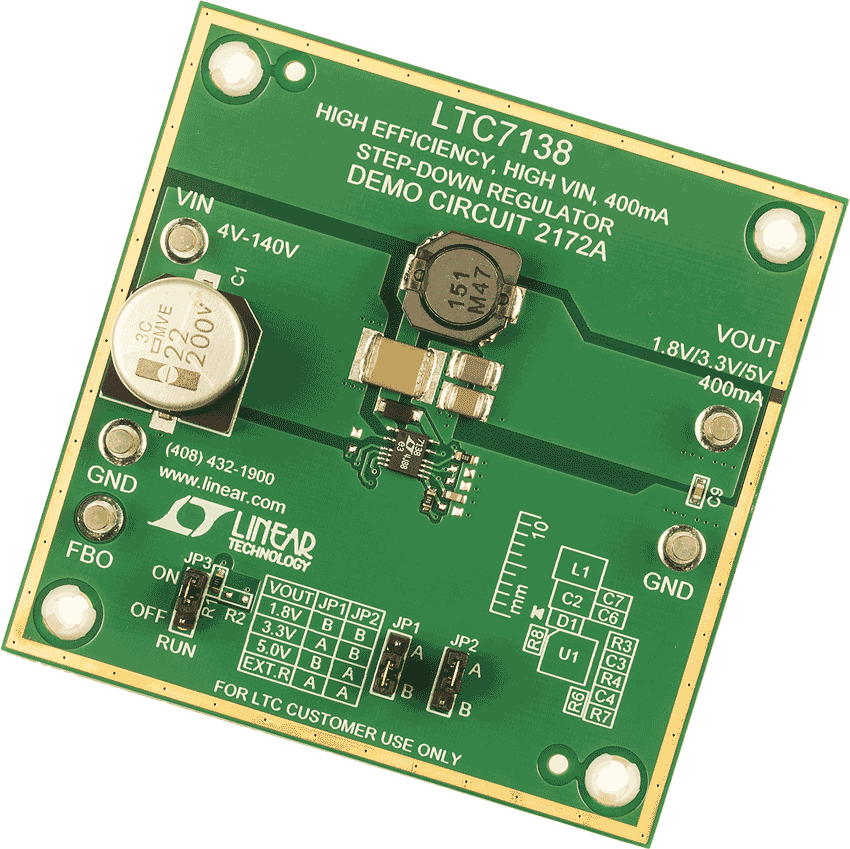

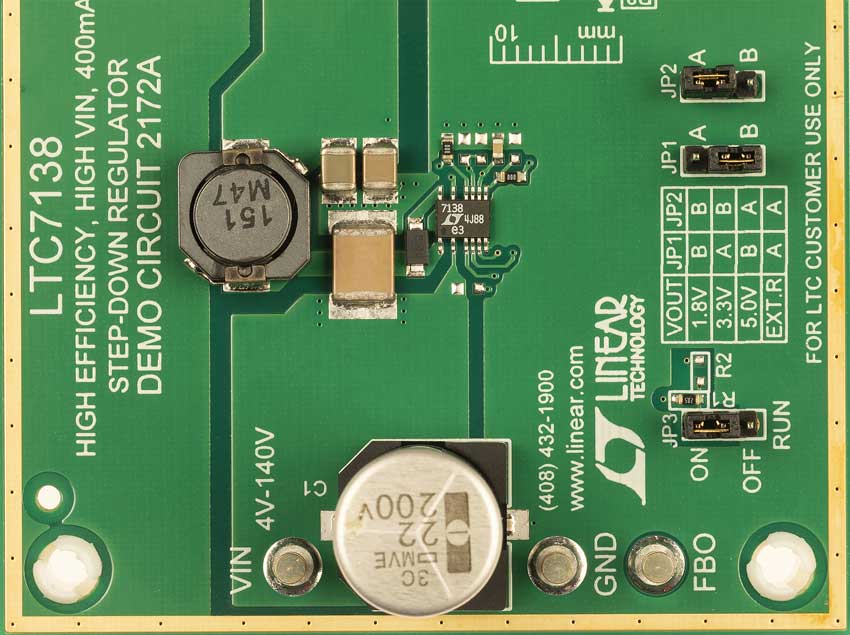

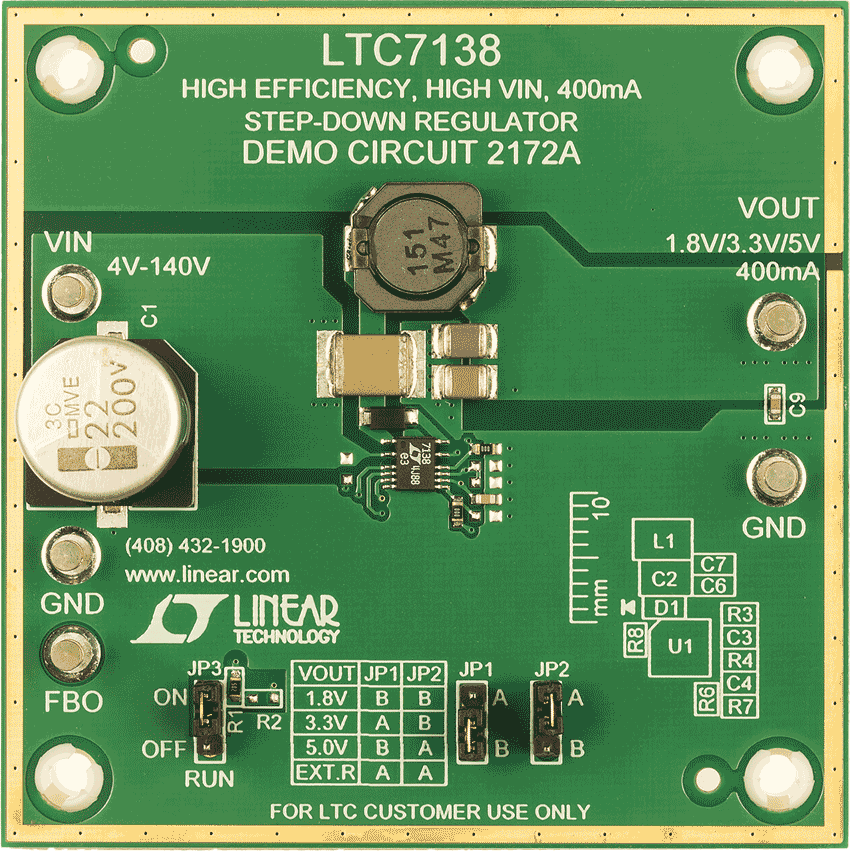

Demonstration circuit 2172A is a high input voltage, 400mA step-down regulator featuring the LTC7138. The output of the regulator can be programmed for either 5V, 3.3V or 1.8V with on-board jumpers or is adjustable from 800mV to VIN using an optional feedback divider. The input voltage range is from 4V to 140V. The LTC7138’s Burst Mode® operation, low quiescent current and internal top FET switch provide high efficiency over a wide range of loads.
対象となる製品
関連資料
-
DC2172A - Schematic2015/02/13PDF26K
-
DC2172A - Demo Manual2015/02/13PDF434K
-
DC2172A - Design Files2015/02/13ZIP2M
