DC2168A
LTC6433-15 Demo Board | Low Frequency to 1.4GHz, 15dB Gain Block IF Amplifier
トップへ
製品概要
製品概要

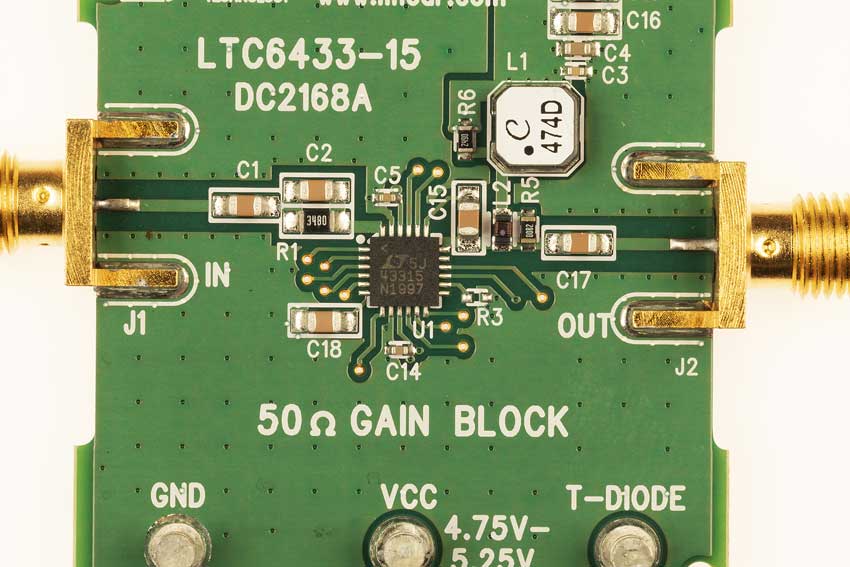

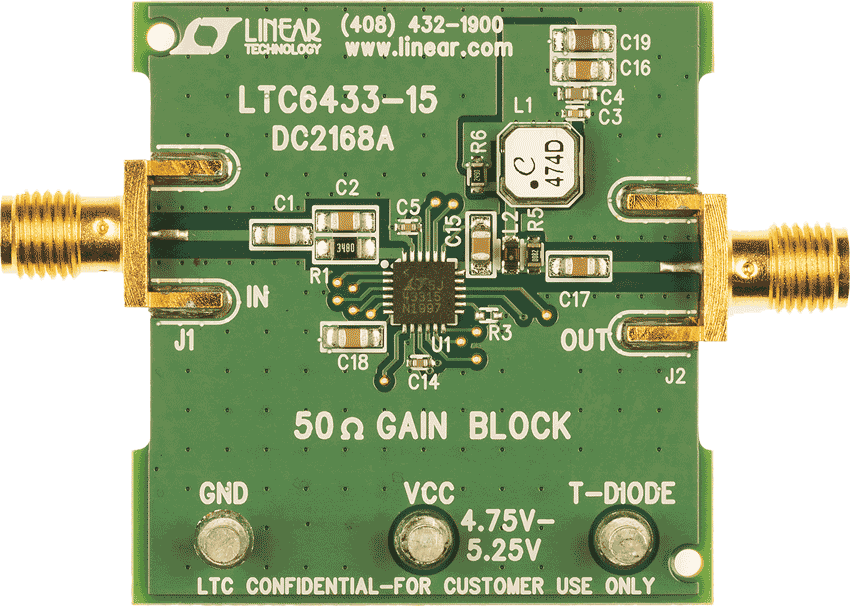

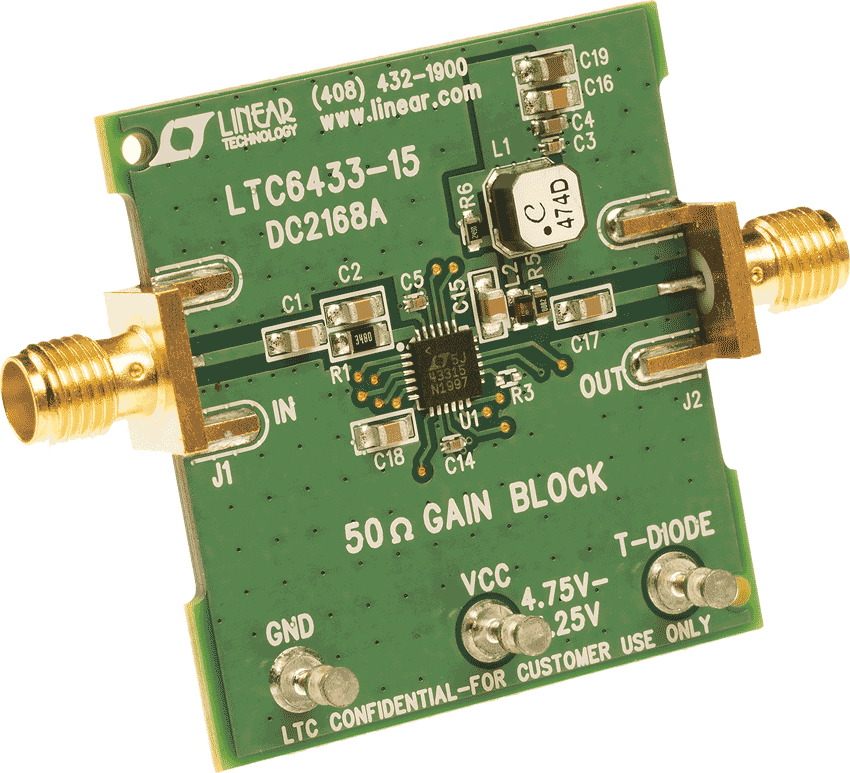

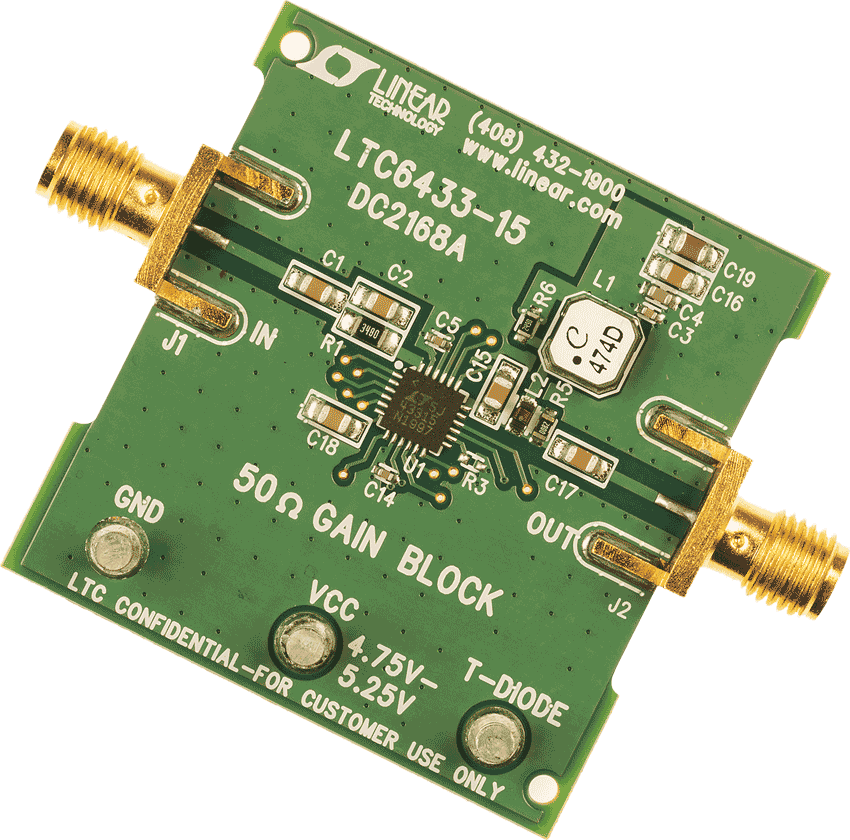

Demonstration circuit 2168A features the LTC6433-15 50Ω gain block amplifier. The LTC6433-15 has a power gain of 15.9dB and it is part of the LTC6431-YY amplifier series.
対象となる製品
関連資料
-

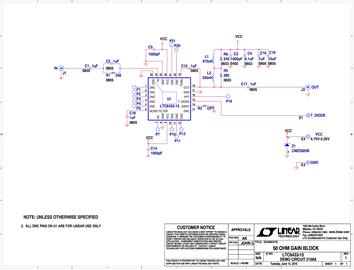

DC2168A - Schematic2016/06/30PDF31K
-
DC2168A - Demo Manual2016/06/30PDF345K
-
DC2168A - Design Files2016/06/30ZIP758K
