DC2159A
FMC to USB Adapter to Interface with PScope
トップへ
製品概要
製品概要

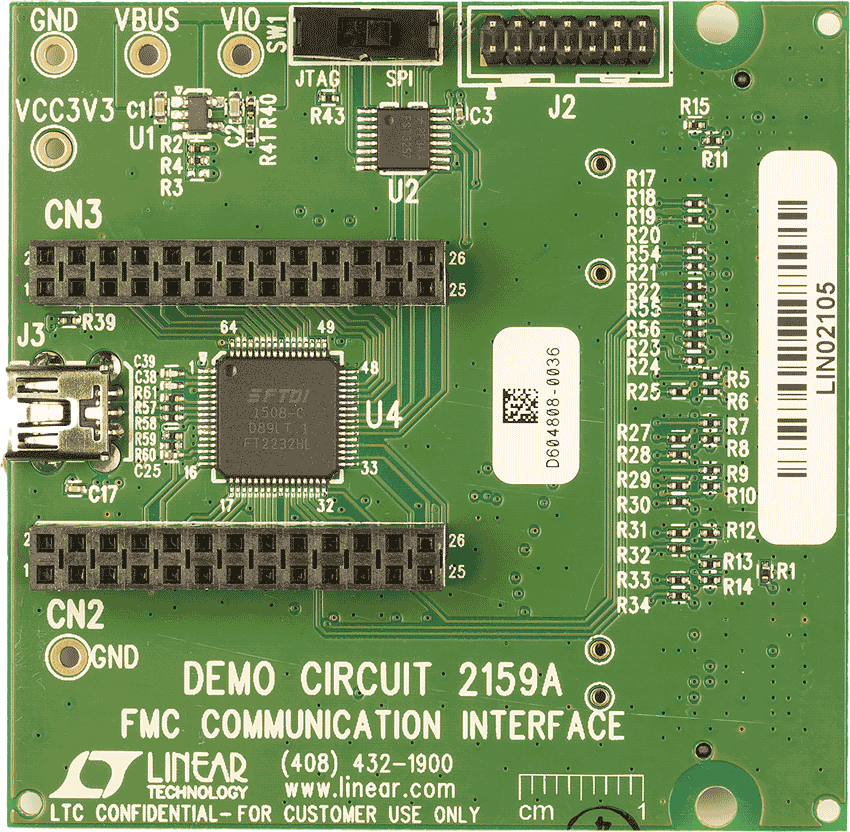

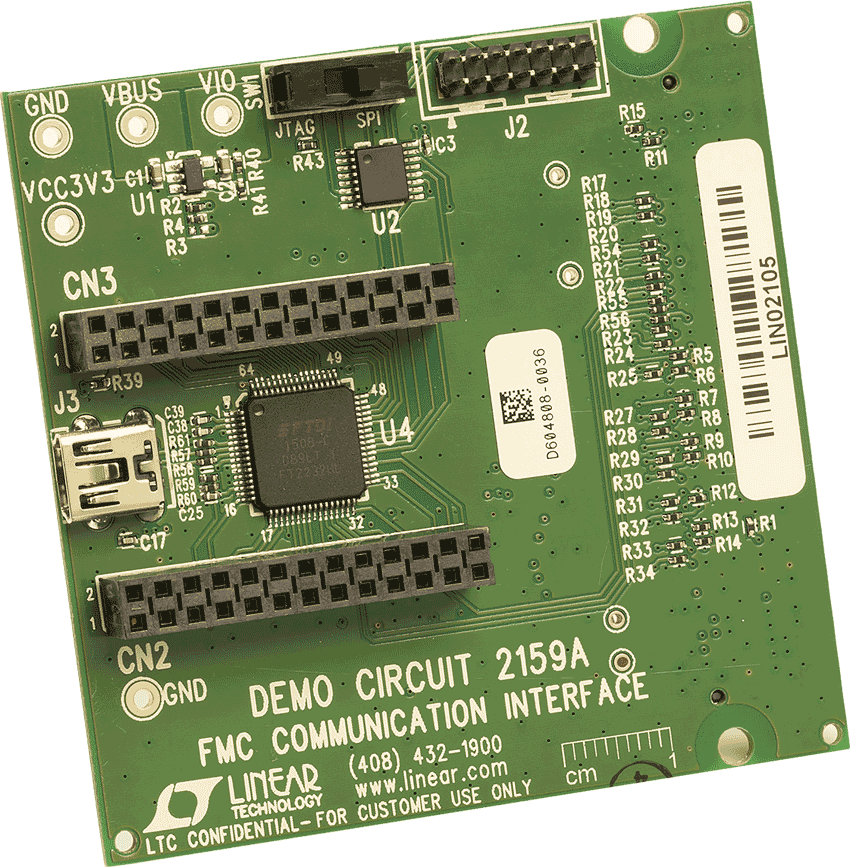

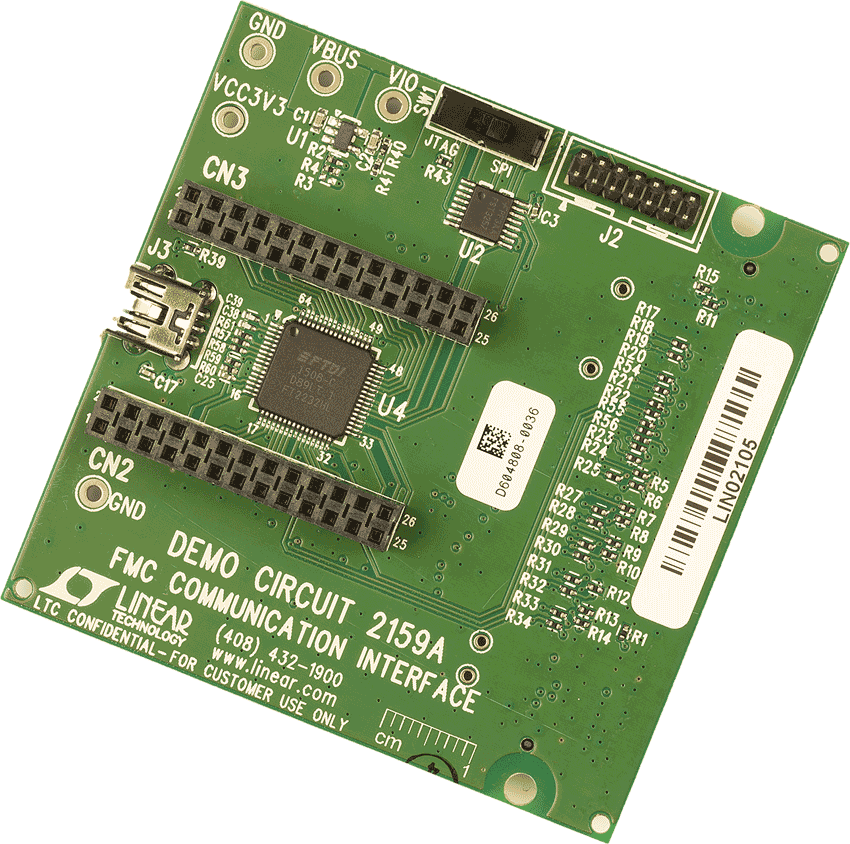

Demonstration circuit 2159 provides USB connectivity to an FMC compatible FPGA evaluation board via an FT2232H Dual USB UART/FIFO. It is used in conjunction with various FPGA boards and an Analog Devices data converter evaluation board as part of an evaluation system for ADI products.
関連資料
-

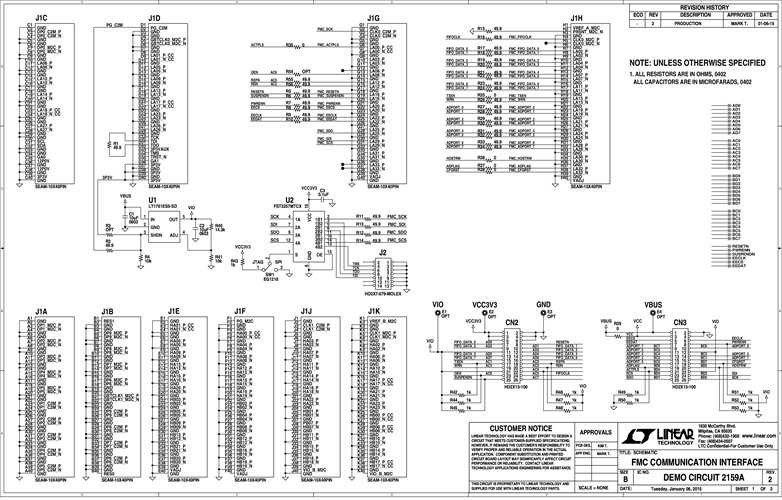

DC2159A - Schematic2015/06/03PDF71K
-
DC2159A - Demo Manual2015/06/03PDF414K
-
DC2159A - Design Files2015/06/03ZIP2M
