DC2129A
LTC3119 Demo Board | Synchronous Buck-Boost, 2.5V ≤ VIN ≤ 18V, VOUT = 5V @ up to 5A
トップへ
製品概要
製品概要

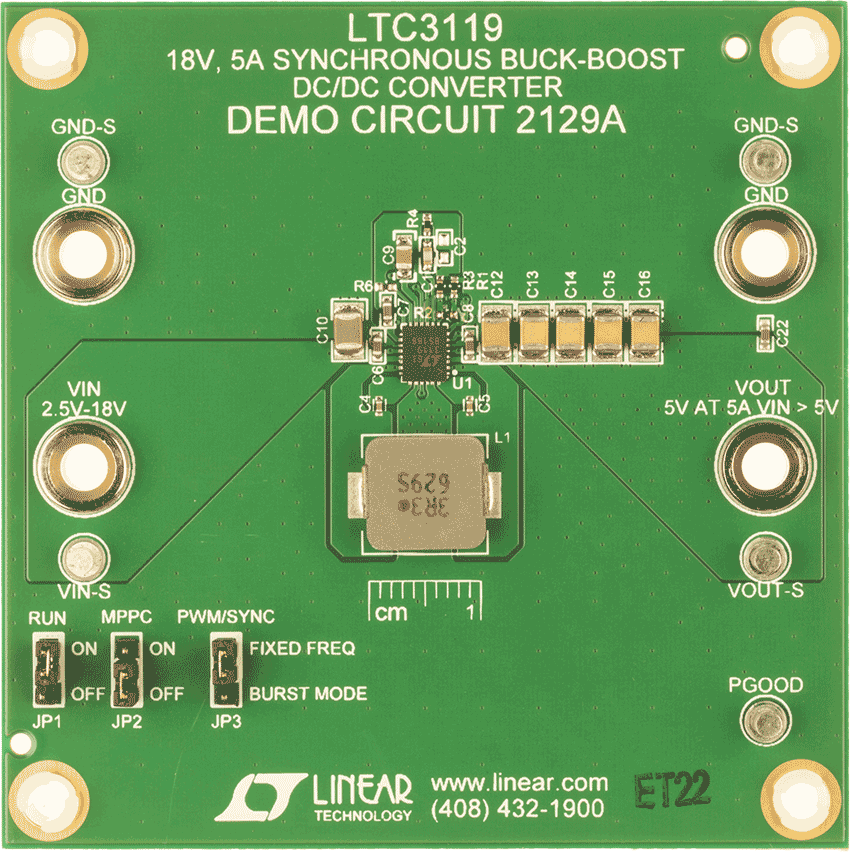

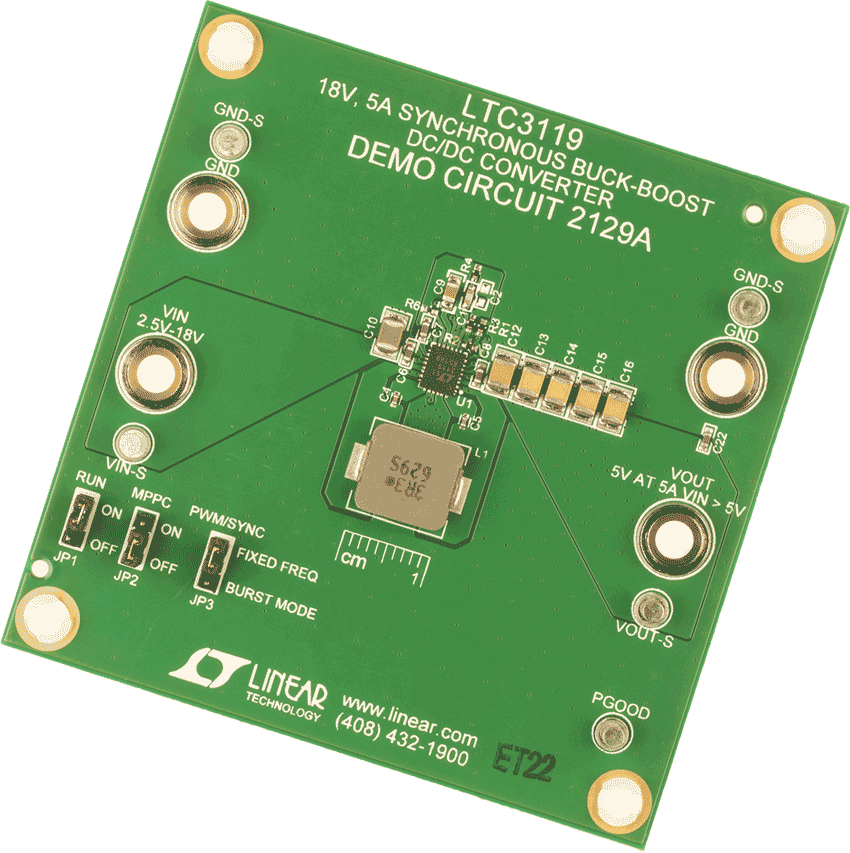

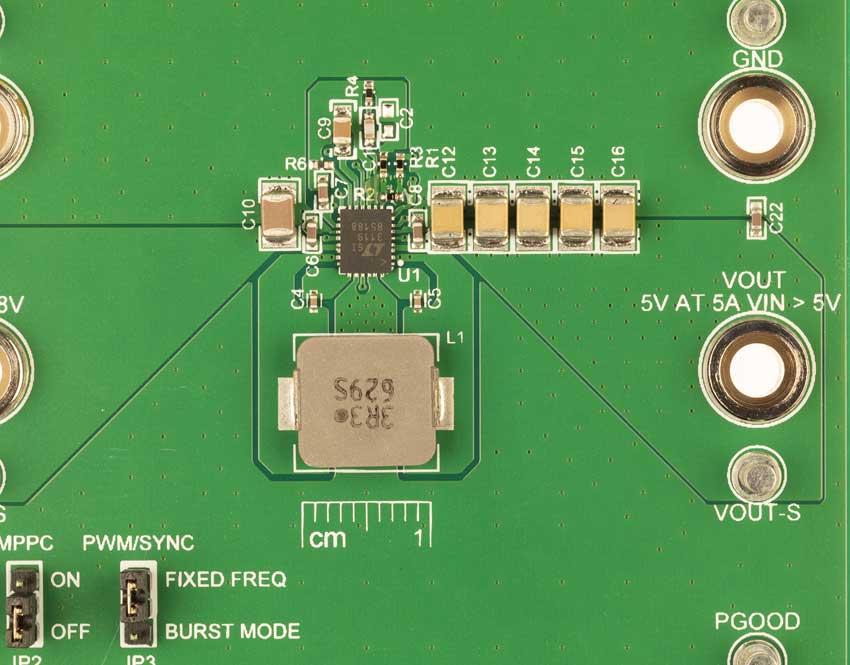

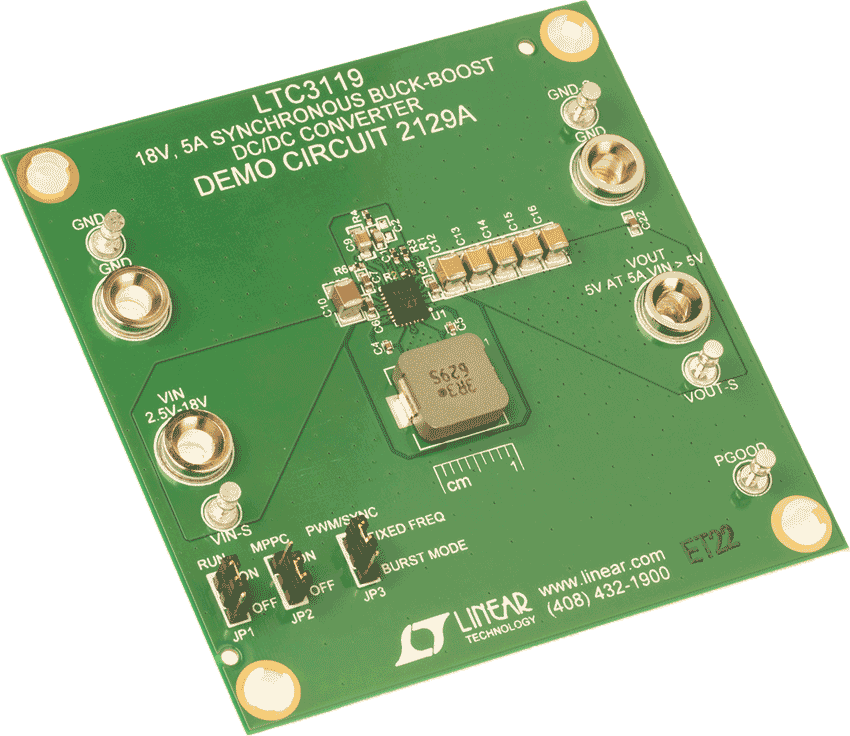

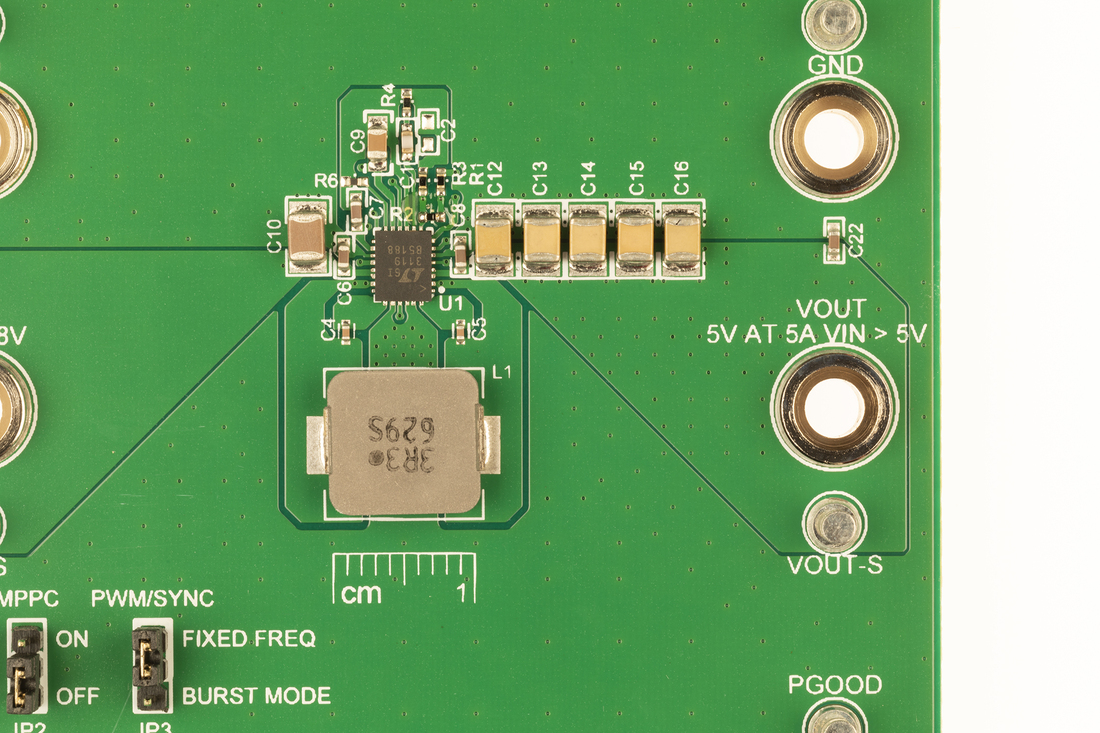

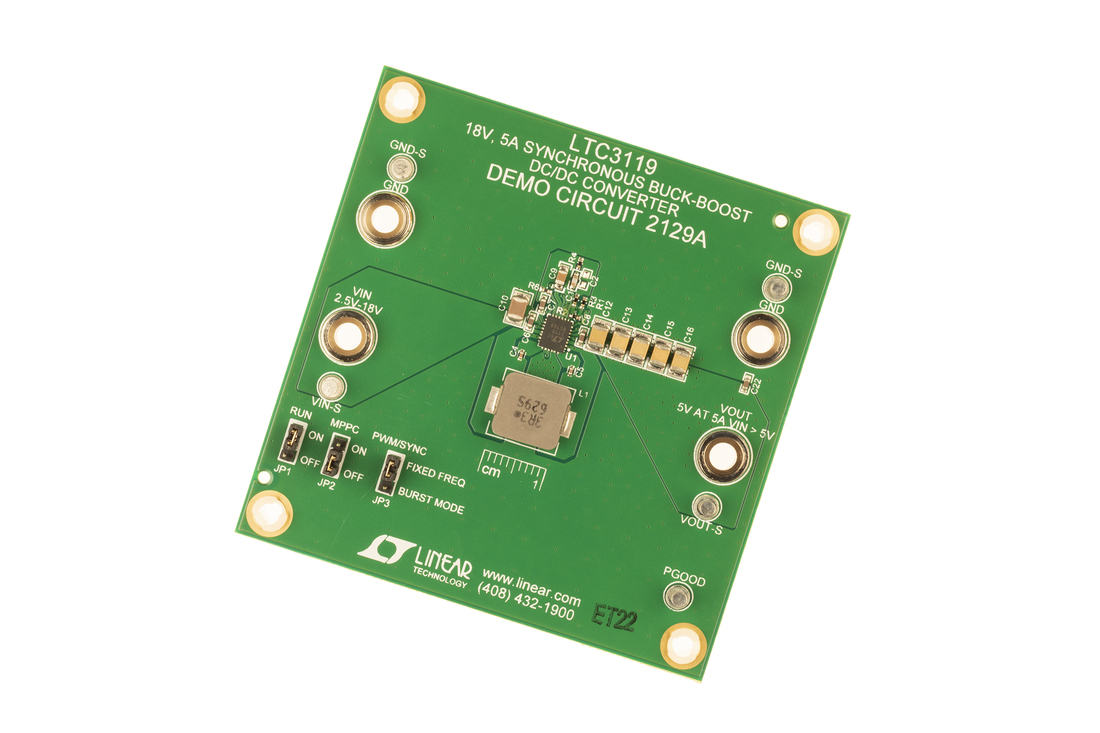

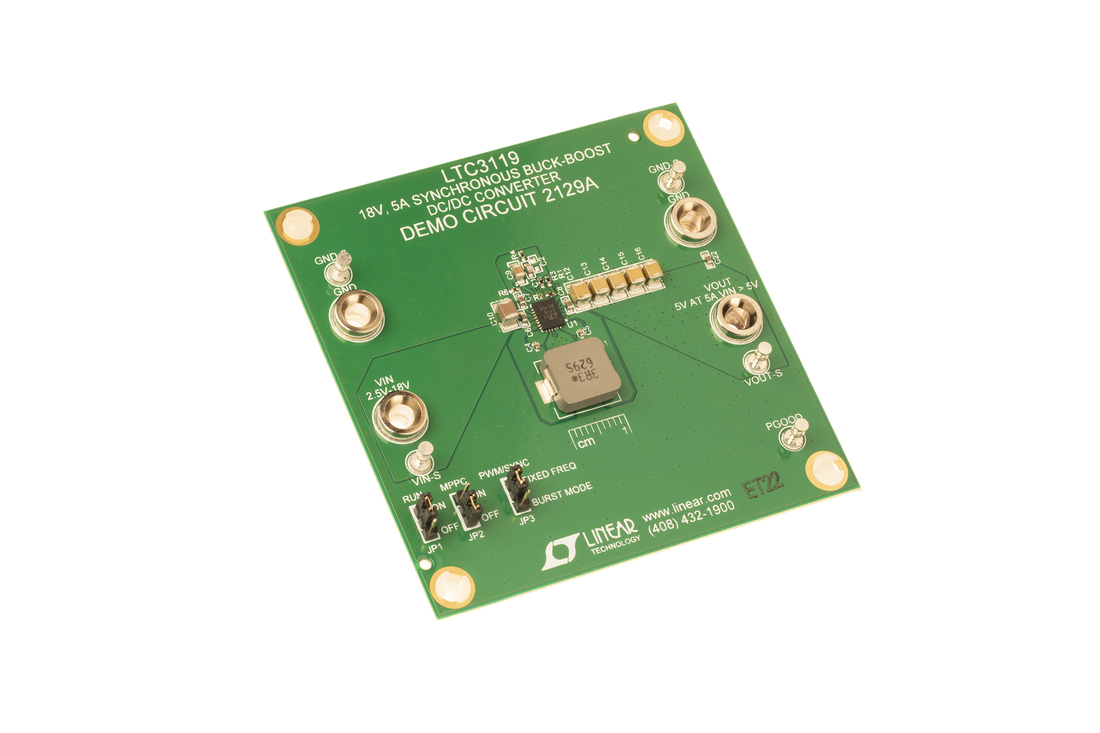

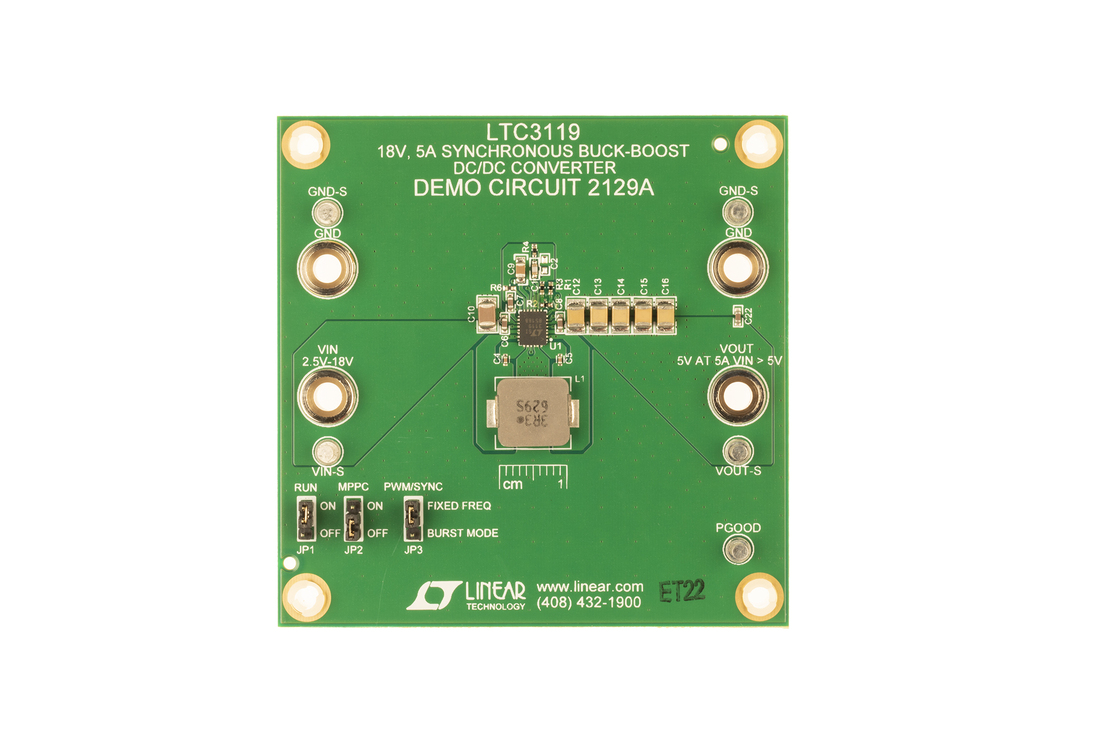

Demonstration circuit 2129A features the LTC3119, an 18V, 5A synchronous buck/boost DC/DC converter. The DC2129A has been designed for an input voltage range of 2.5V to 18V with an output voltage (VOUT) set to 5V. For VIN > 5V the output current can be as high as 5A. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below, or equal to the output voltage.
対象となる製品
関連資料
-

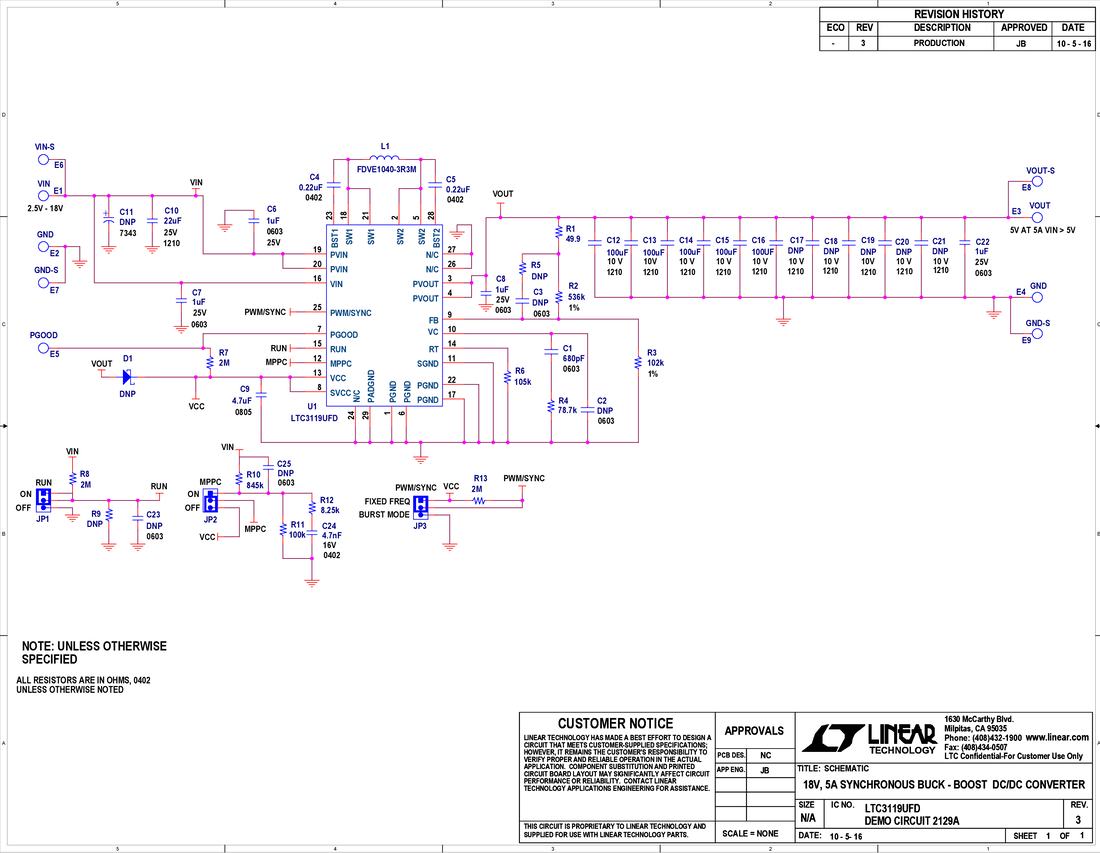

DC2129A - Schematic2017/02/24PDF91K
-
DC2129A - Demo Manual2017/02/24PDF651K
-
DC2129A - Design Files2017/02/24ZIP2M
