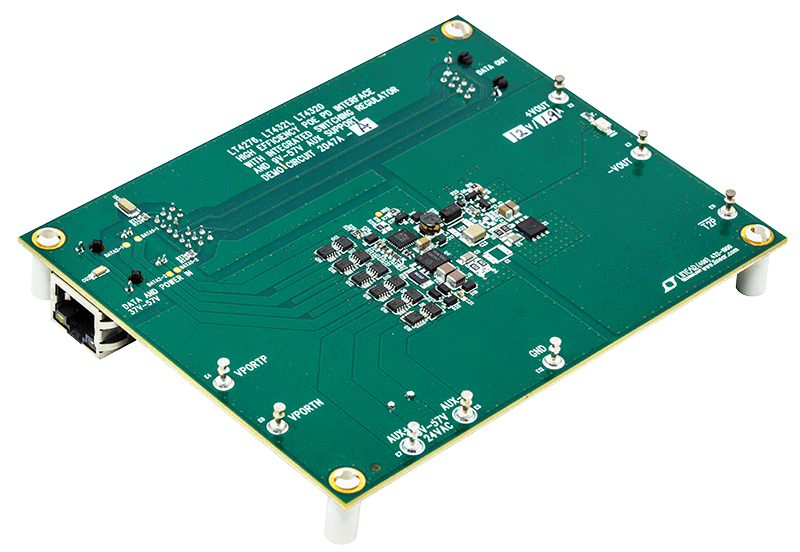

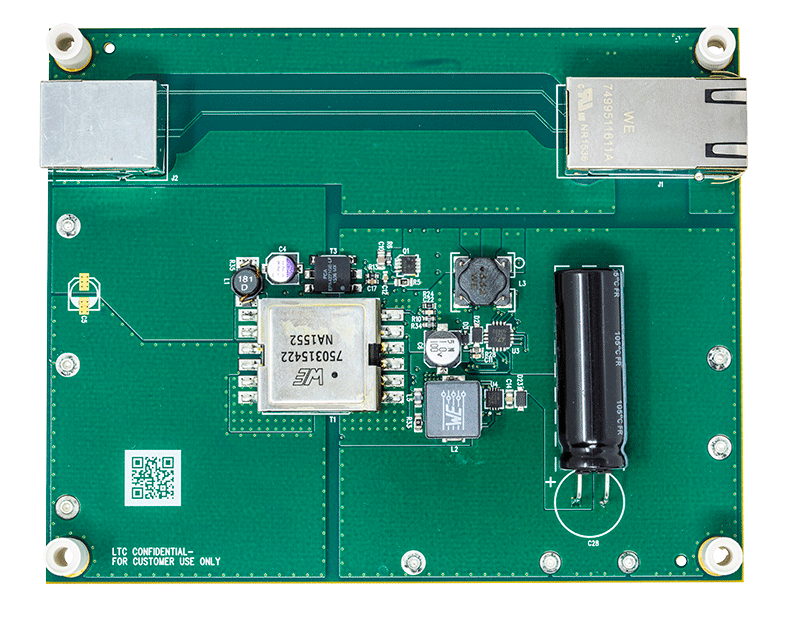

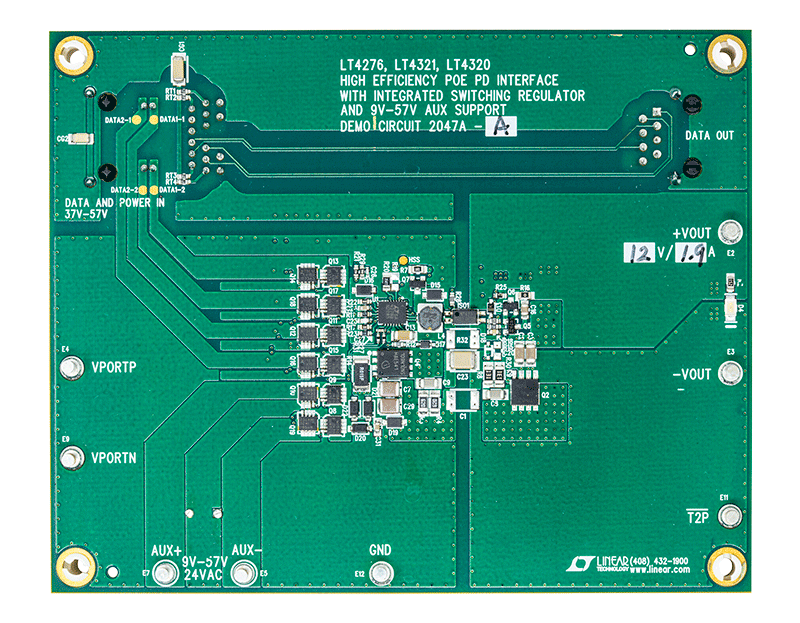

DC2047A-A
LT4276B/LT4321 Demo Board | PoE+ (25W, 12V/1.9A) PD with DC/DC, Ideal Diode Bridge and 9V-57V AUX
トップへ
製品概要
製品概要
Demonstration circuit 2047A-A is an IEEE802.3at compliant Power over Ethernet (PoE) Powered Device (PD) with support for 9-57VDC and 24VAC auxiliary supply input. It features the LT4276 PD interface and switching regulator controller, the LT4321 PoE ideal diode bridge controller, and the LT4320 ideal diode bridge controller.
マーケット＆テクノロジー
対象となる製品
関連資料
-
DC2047A-A - Schematic2016/12/13PDF87K
-
DC2047A-A - Demo Manual2016/12/13PDF989K
-
DC2047A-A - Design Files2016/12/13ZIP1M
