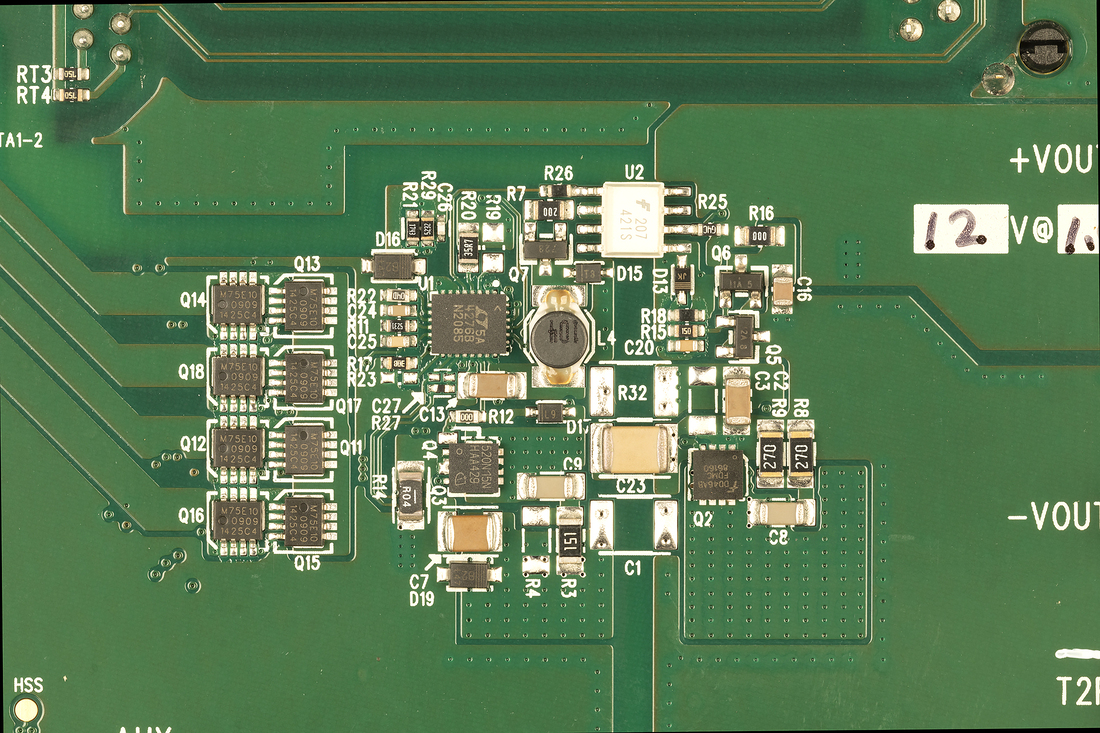

DC2046A-C
LT4276B/LT4321 Demo Board | PoE+ (25W, 12V/1.9A) PD with DC/DC and Ideal Diode Bridge
トップへ
製品概要
製品概要

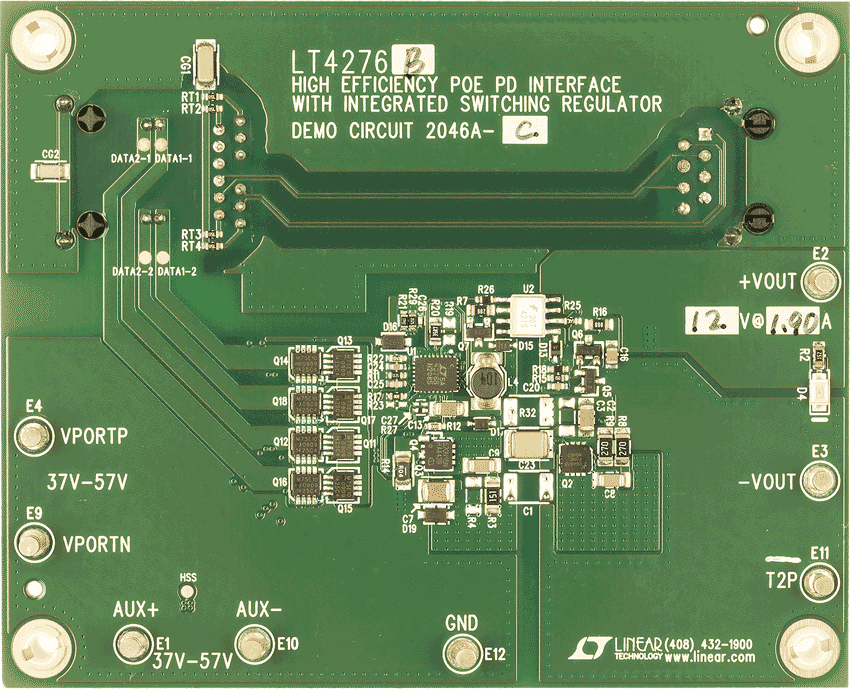

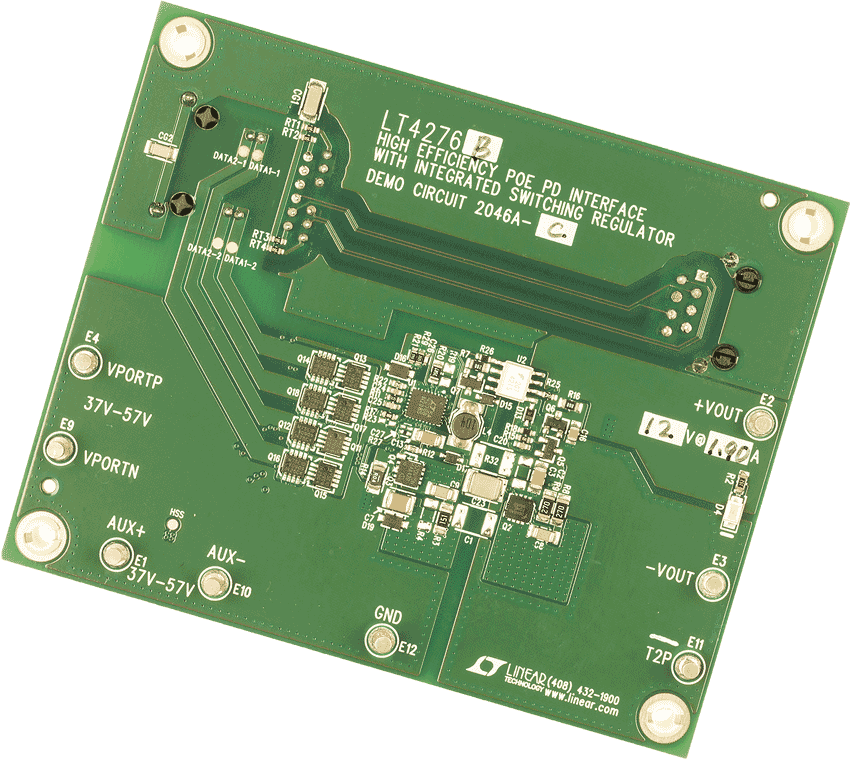

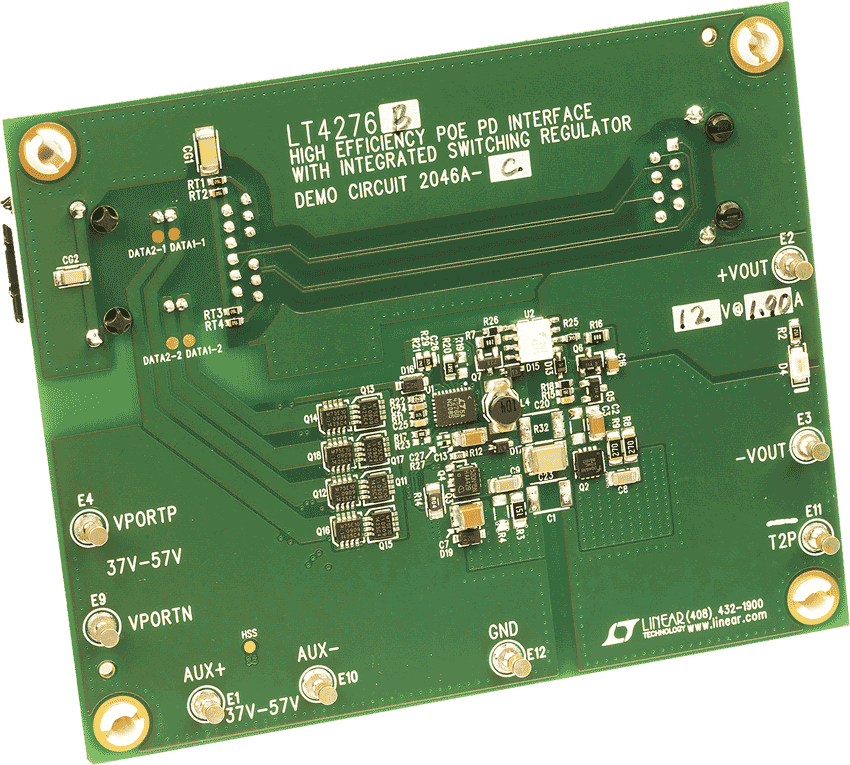

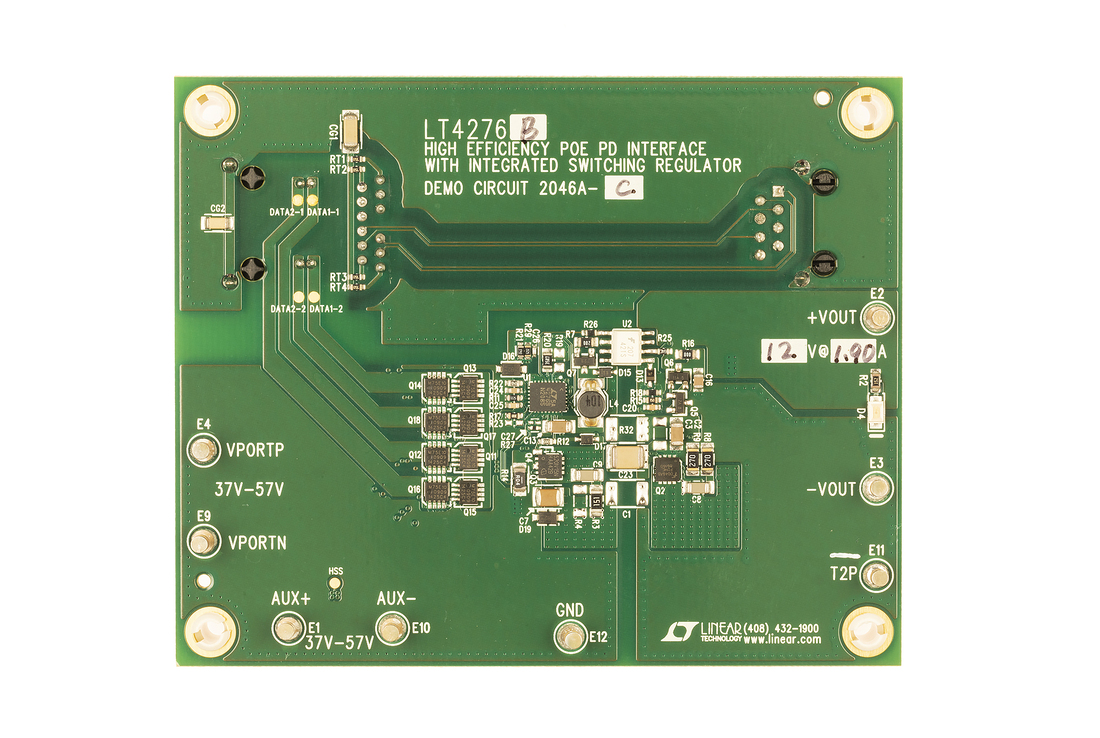

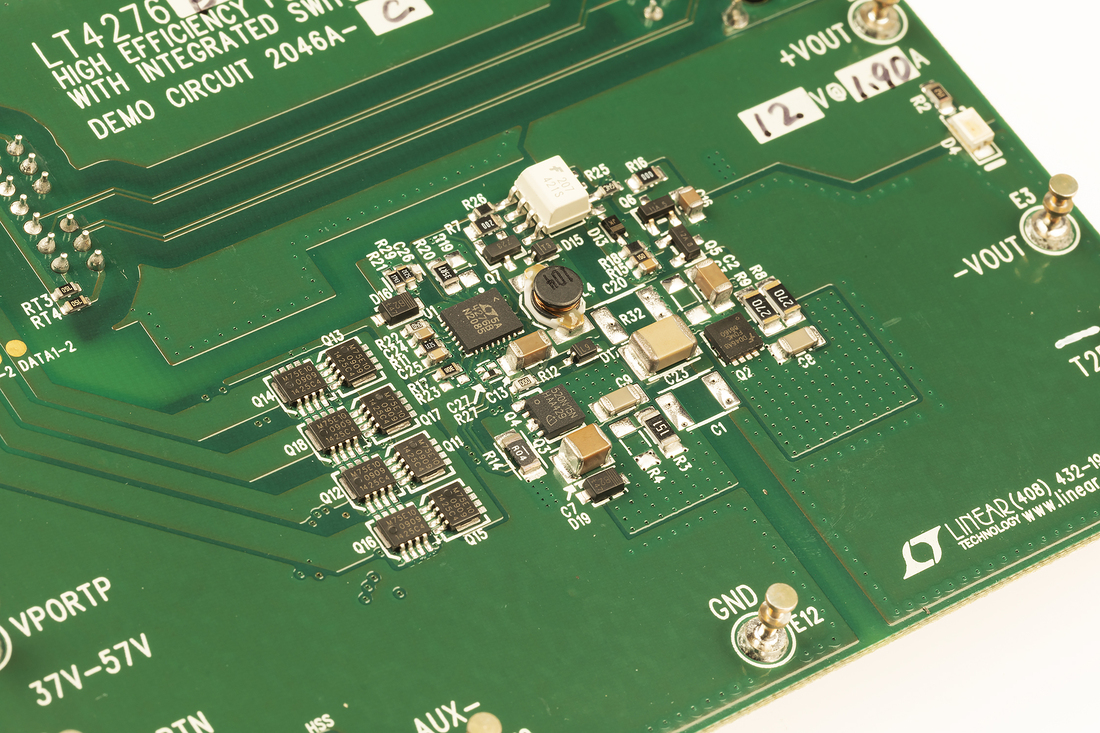

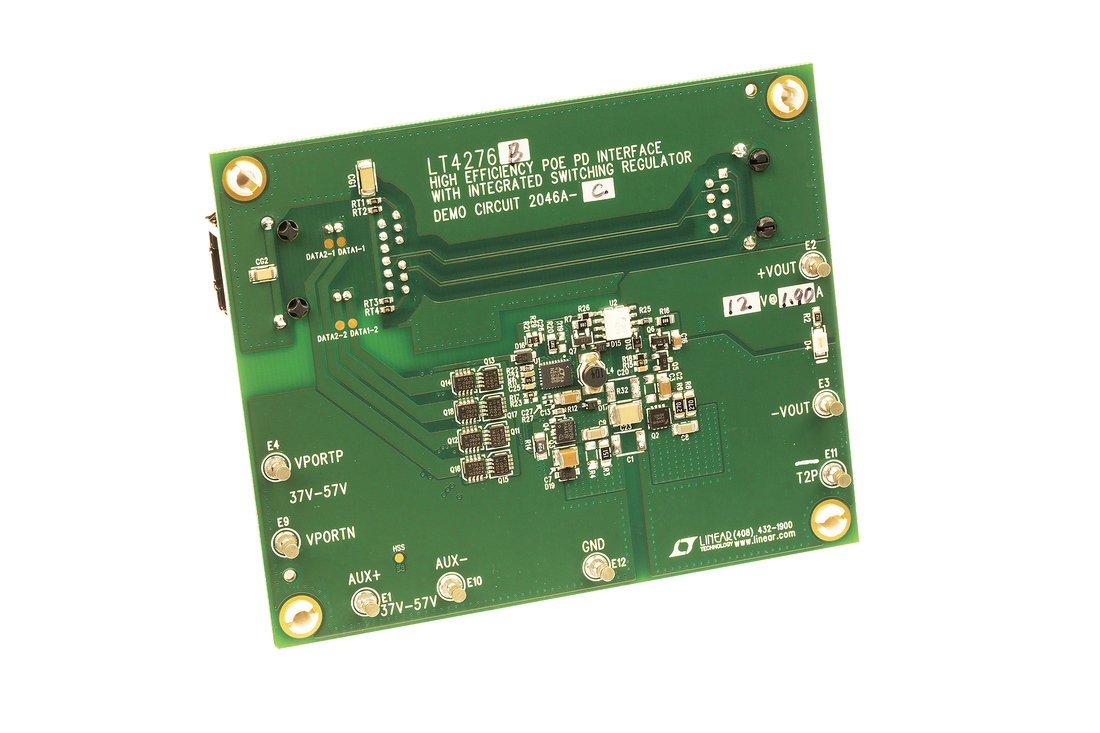

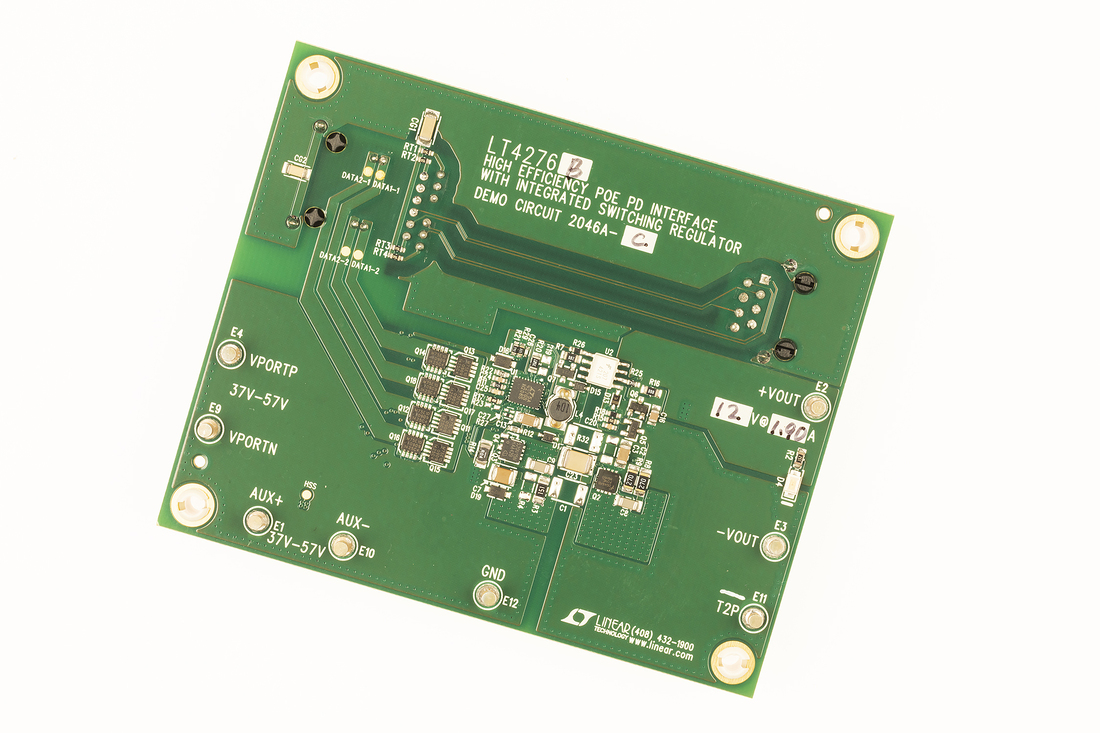

Demonstration circuit 2046A-C is a PoE powered device (PD) with an isolated power supply using synchronous flyback topology, featuring the LT4276 and ideal diode bridge controller (LT4321).
マーケット＆テクノロジー
対象となる製品
関連資料
-

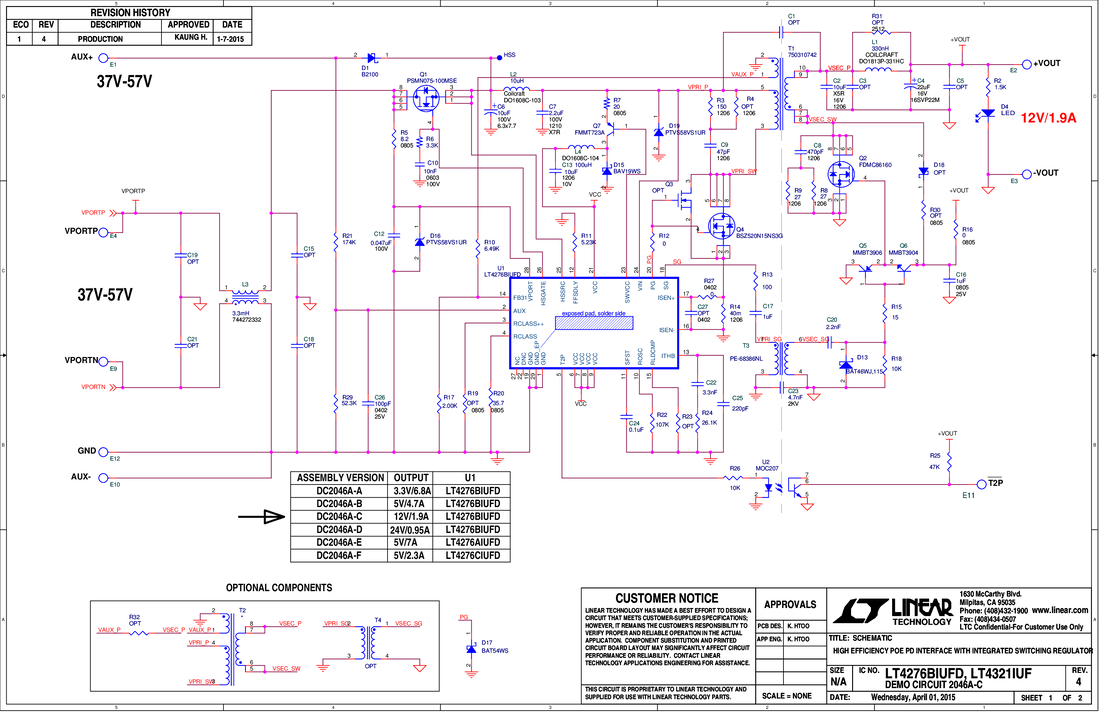

DC2046A-C - Schematic2015/07/10PDF73K
-
DC2046A-C - Demo Manual2015/07/10PDF897K
-
DC2046A - Design Files2015/07/10ZIP2M
